Cummins / Cummins Parts / Fuel Pump, Injector, Manifold, Injection Pump, Pressure Sensor / Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063

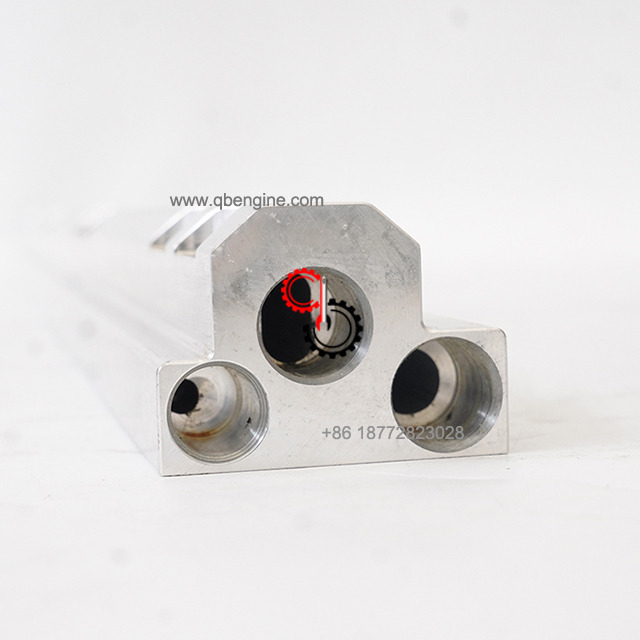

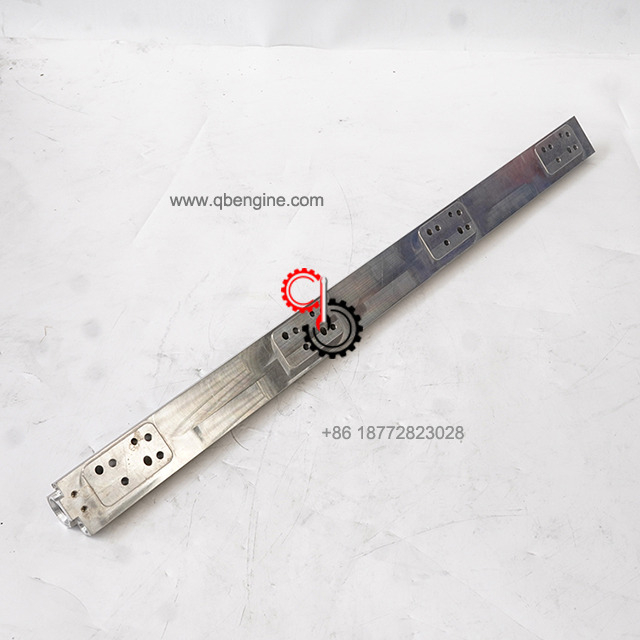

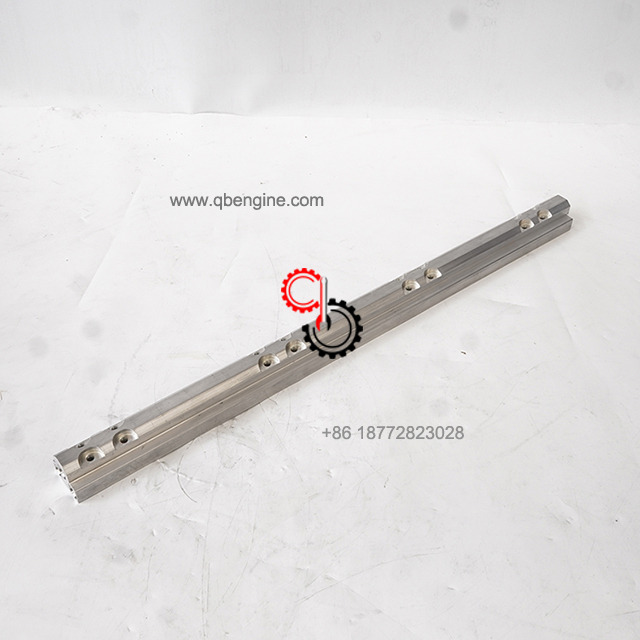

Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063
Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063 Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063
Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063 Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063
Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063 Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063

loading

Cummins QSK60 Authentic Engine Electronic Control System Parts Fuel Manifold 3638062 3638063

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK60 Fuel Manifold 3638062 3638063

  • QSK60

  • Cummins

  • 3638062 3638063

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Fuel Manifold 3638062 3638063 In Stock

Electronic  Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3638062

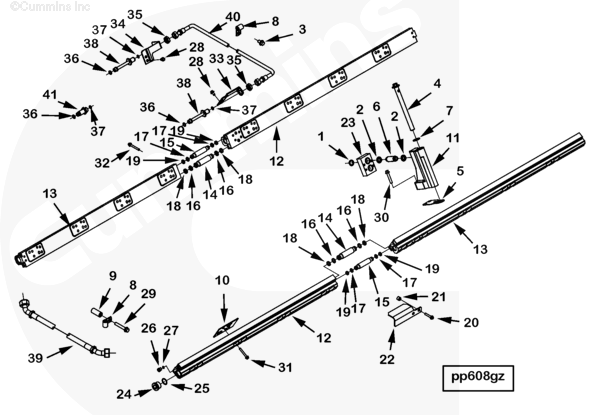

Ref No Part Number Part Description Required Remarks

PP6939 Injector Plumbing
MR - PLUMBING, INJECTOR...(More)
1 3072853 O-Ring Seal 4
2 3089501 Rectangular Ring Seal 8
3 3093957 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 16
4 3171693 Banjo Connector Screw 2
5 3171695 Connection Gasket 2
6 3171696 Fuel Transfer Tube 4
7 3171963 Sealing Washer 2
8 3627412 Clip 5
9 3631817 Mounting Spacer 2
10 3637870 Fuel Manifold Gasket 16
11 3641774 Fuel Block Connection 2
12 3638062 Fuel Manifold 2
13 3638063 Fuel Manifold 2
14 3638064 Fuel Transfer Tube 4
15 3638065 Fuel Transfer Tube 2
16 3638101 O-Ring Seal 8
17 3638102 O-Ring Seal 4
18 3638326 Dust Seal 8
19 3638327 Dust Seal 4
20 3639283 Hexagon Flange Head Cap Screw 4

3639630 Fuel Line Shield 2
21 3639377 Mounting Spacer 2
22 3639629 Fuel Line Shield 1
23 3642058 Fuel Block Connection 2

3678611 Threaded Plug 2
24 3678605 Threaded Plug 1
25 3678606 O-Ring Seal 1 M27 X 2.00

3678923 Threaded Plug 4 M10 X 1.00 X 13.5
26 3678924 Threaded Plug 1 M10 X 1.00 X 13.5
27 3678925 O-Ring Seal 1 M10.
28 3900626 Hexagon Flange Head Cap Screw 4 M6 x 1.00 x 12
29 3900635 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 60.
30 3901445 Hexagon Flange Head Cap Screw 4 M8 x 1.25 x 45
31 3901937 Hexagon Flange Head Cap Screw 64 M6 X 1.00 X 45.
32 3927220 Hexagon Flange Head Cap Screw 4 M6 X 1.00 X 50.
33 4000843 Tube Brace 1
34 4000844 Tube Brace 1
35 4000847 Lock Nut 2

4001633 Male Connector 2
36 3678912 O-Ring Seal 1 M14
37 3922794 O-Ring Seal 1
38 4001170 Male Connector 1 No service kit.
39 4065385 Flexible Hose 1
40 4085920 Flexible Hose 1

4101023 Male Connector 2
36 3678912 O-Ring Seal 1 M14
37 3922794 O-Ring Seal 1
41 4101022 Male Connector 1

4955978 Fuel Manifold Kit 1

3638062 Fuel Manifold 1

3638063 Fuel Manifold 1

3638064 Fuel Transfer Tube 2

3638065 Fuel Transfer Tube 1

3638101 O-Ring Seal 4

3638102 O-Ring Seal 2

3638326 Dust Seal 4

3638327 Dust Seal 2

3639283 Hexagon Flange Head Cap Screw 2

3639630 Fuel Line Shield 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 89cm*7cm*6cm
Weight 3.9KG
