Cummins / Products / Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897
Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897
Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897 Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897
Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897 Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897
Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897 Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897

loading

Cummins QSK60 3648222 4100827 Rocker Lever Housing 5374109 3650897

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

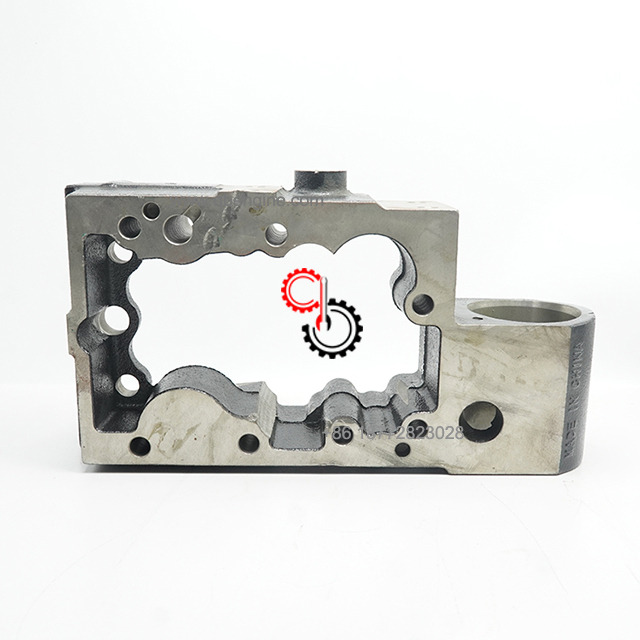

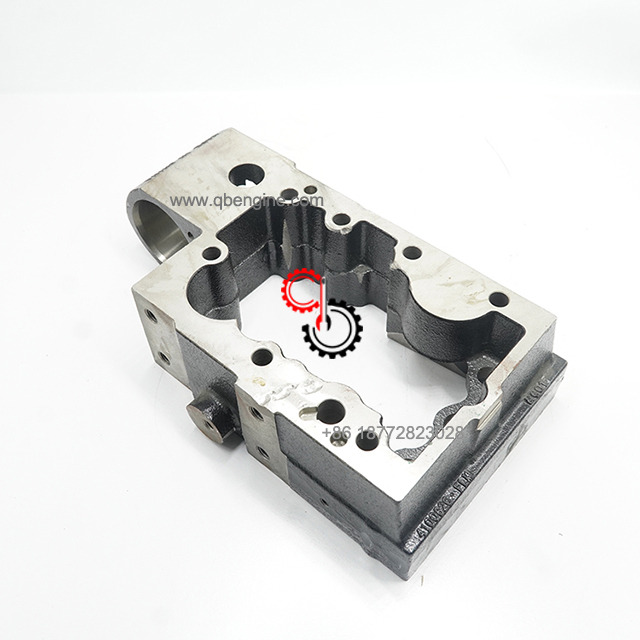

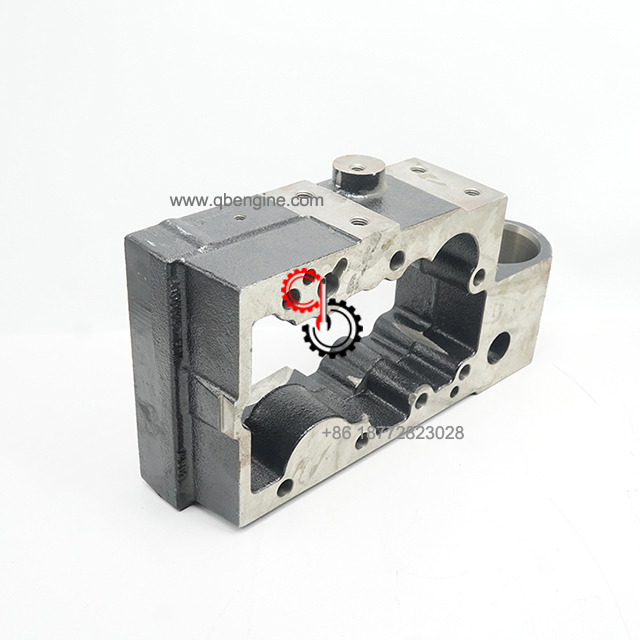

Cummins QSK60 Rocker Lever Housing 5374109 3650897 3648222 4100827

  • QSK60

  • Cummins

  • 5374109 3650897 3648222 4100827

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Rocker Lever Housing 5374109 3650897 3648222 4100827 In Stock

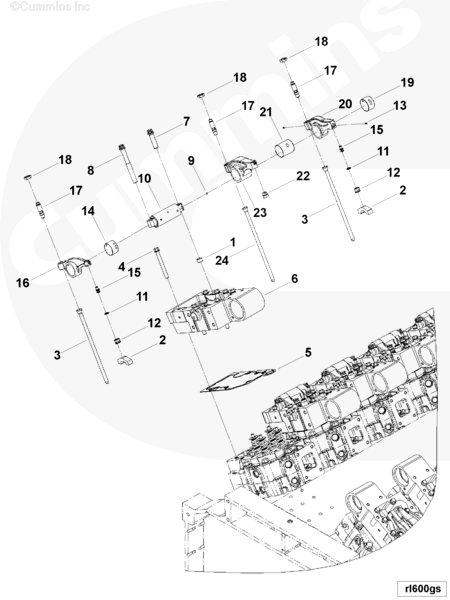

Electronic  Parts Catalog - Option Detail
Cummins  Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3650897

Ref No Part Number Part Description Required Remarks

RL6712-01 Rocker Lever
Rocker Lever
1 3079743 Ring Dowel 16
2 3641535 Valve Crosshead 32
3 4080240 Push Rod 32
4 3089563 Hexagon Flange Head Cap Screw 112
5 3171499 Rocker Lever Housing Gasket 16
6 3650897 Rocker Lever Housing 16
7 3089193 Twelve Point Cap Screw 16
8 3089194 Twelve Point Cap Screw 16

4065641 Lever , Rocker Top Level Assembly 16

3089715 Rocker Lever Shaft 1
9 203933 Expansion Plug 1
10 3089716 Rocker Lever Shaft 1

4065633 Rocker Lever 1
11 3028349 O-Ring Seal 1
12 3085980 Rocker Lever Socket 1
13 4065627 Drive Plug 2
14 3085972 Bushing 1
15 3085978 Rocker Lever Ball 1
16 4065632 Rocker Lever 1
17 3090007 Rocker Lever Adjusting Screw 1
18 3680057 Regular Hexagon Jam Nut 1

4065636 Rocker Lever 1
11 3028349 O-Ring Seal 1
12 3085980 Rocker Lever Socket 1
13 4065627 Drive Plug 2
15 3085978 Rocker Lever Ball 1
17 3090007 Rocker Lever Adjusting Screw 1
18 3680057 Regular Hexagon Jam Nut 1
19 3085973 Bushing 1
20 4065635 Rocker Lever 1

4065639 Rocker Lever 1
13 4065627 Drive Plug 2
17 3090007 Rocker Lever Adjusting Screw 1
18 3680057 Regular Hexagon Jam Nut 1
21 3081514 Bushing 1
22 3089177 Rocker Lever Socket 1
23 4065638 Rocker Lever 1
24 3410897 Push Rod 16


SHIPMENT CHARACTERISTICS
Length * Width * Height 45cm*27cm*13cm
Weight 15.3067KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
