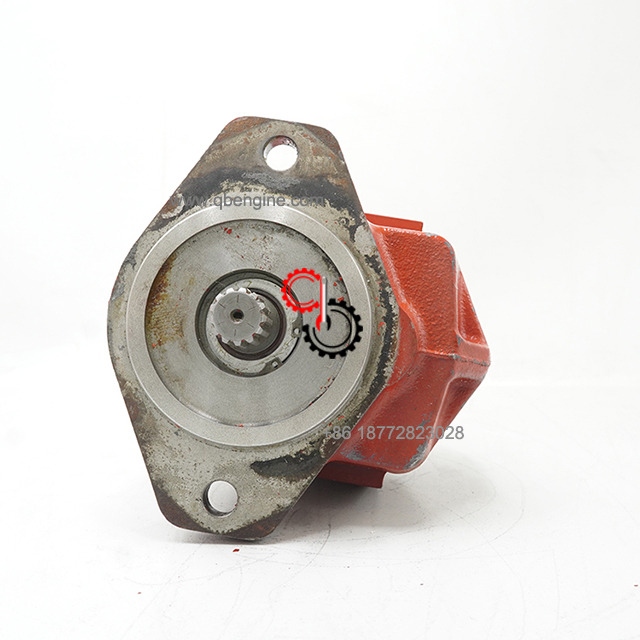

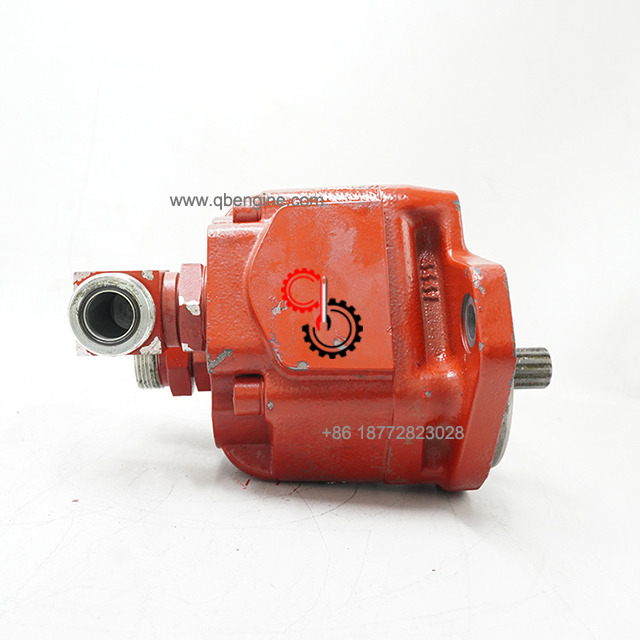

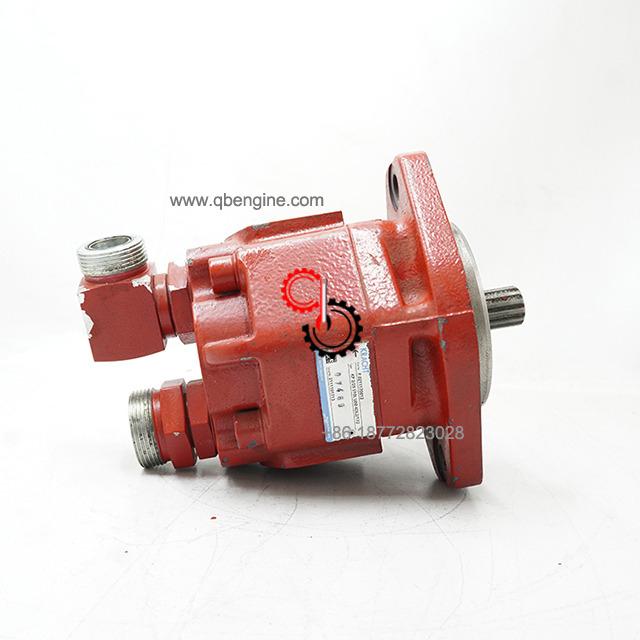

Cummins QSK60 Transfer Pump 3647009 3649842

  • QSK60

  • Cummins

  • 3647009 3649842

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Transfer Pump 3647009 3649842 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60   CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60   CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3647009

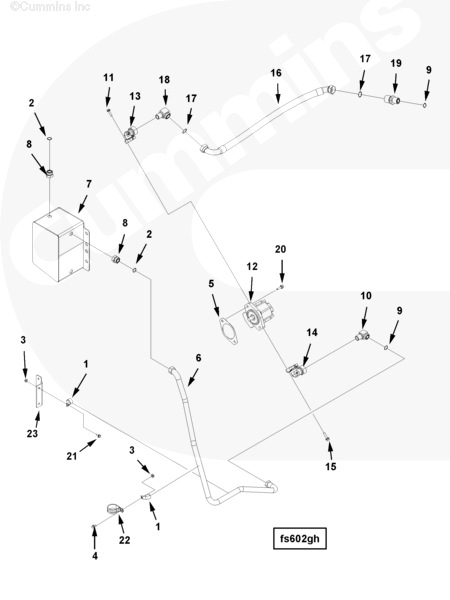

Cart Ref No Part Number Part Description Required Remarks


FS6050-02 Fuel Transfer Pump
Fuel transfer pump...(More)
1 67950 Clip 3

2 3075658 O-Ring Seal 3

3 3093828 Hexagon Flange Nut 3 M10 X 1.50.
4 3093957 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 16
5 3637040 Fuel Pump Gasket 1

6 3649001 Flexible Hose 1

7 3639244 Fuel Reservoir 1

8 4086158 Reducing Adapter 3


3648037 Male Adapter Elbow 1

9 3075658 O-Ring Seal 1

10 3648038 Male Adapter Elbow 1


3648040 Fuel Transfer Pump 1

11 3093805 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 35.
12 3647009 Fuel Transfer Pump 1

13 3647010 Flange 1

14 3647011 Flange 1

15 3920447 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 40.
16 3648142 Flexible Hose 1


3648144 Male Adapter Elbow 1

17 3332160 O-Ring Seal 1

18 3648145 Male Adapter Elbow 1


3648151 Male Union 1

9 3075658 O-Ring Seal 1

17 3332160 O-Ring Seal 1

19 3648152 Male Union 1

20 3900637 Hexagon Flange Head Cap Screw 2 M12 x 1.75 x 35
21 3903990 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 20.
22 4100756 Clip 1

23 4100757 Fuel Plumbing Bracket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 25cm*20cm*24cm
Weight 13.126kg
