Cummins / Cummins Parts / Filter, Flywheel, Flywheel Housing, Air Inlet Pipe, Air Exhaust Pipe / Cummins QSK38 QSK50 Water Transfer Tube 3650263 Industrial Diesel Motor Spare Parts 3650263

Cummins QSK38 QSK50 Water Transfer Tube 3650263 Industrial Diesel Motor Spare Parts 3650263

Cummins QSK38 QSK50 Water Transfer Tube 3650263 Industrial Diesel Motor Spare Parts 3650263

Name: Cummins QSK38 QSK50 Water Transfer Tube 3650263 Industrial Diesel Motor Spare Parts 3650263
Brand: Cummins
Rating: 5.0 (11 reviews)

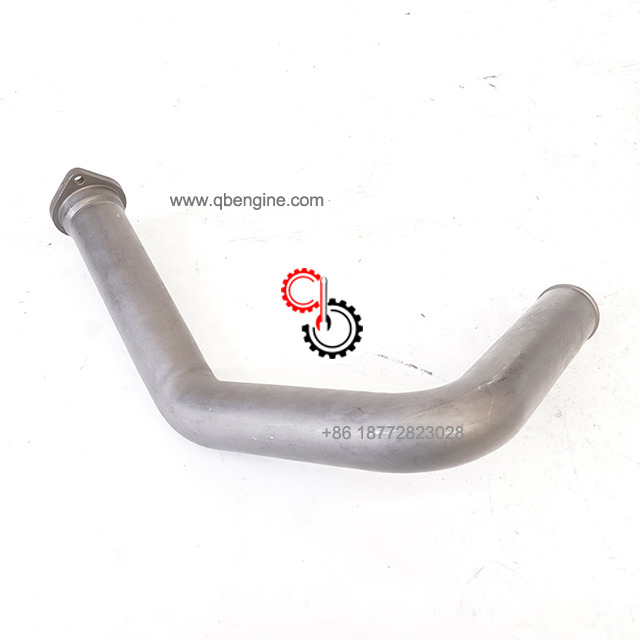

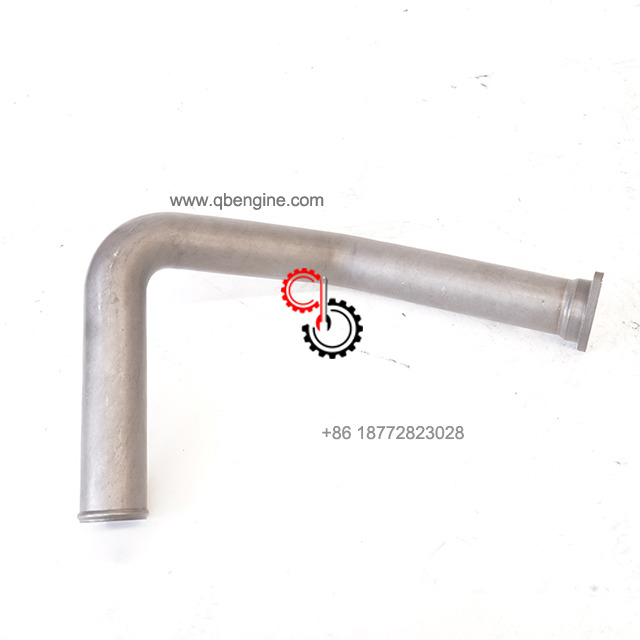

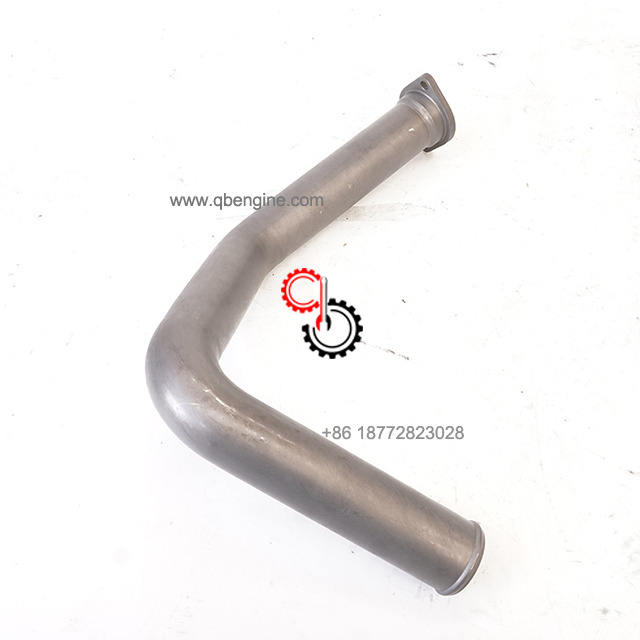

Cummins QSK38 QSK50 Water Transfer Tube 3650263

Model:
QSK38 QSK50
Brand:
Cummins
Code:
3650263
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins QSK38 QSK50 Water Transfer Tube 3650263 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	Cummins GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3650263

Cart	Ref No	Part Number	Part Description	Required	Remarks

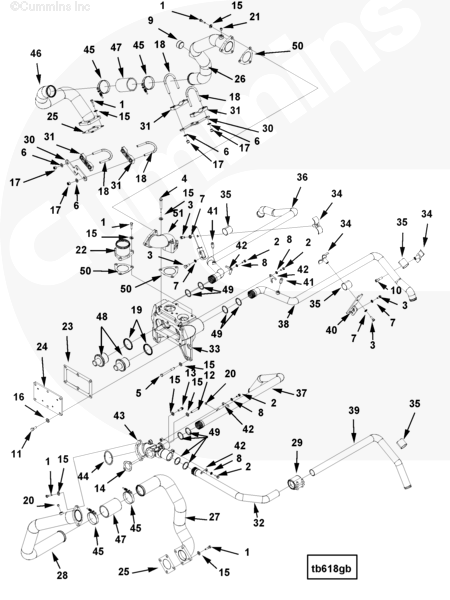

		TB6806-08	Auxiliary Cooling System		Auxiliary Cooling System
1	S 103 D	Hexagon Head Cap Screw	15	3/8 - 16 X 1 1/4 in.
2	S 107	Hexagon Head Cap Screw	4	5/16 - 18 X 3/4 in.
3	S 109	Hexagon Head Cap Screw	12	3/8 - 16 X 7/8 in.
4	S 163	Hexagon Head Cap Screw	2	3/8 - 16 X 3 1/4 in.
5	S 199 B	Hexagon Head Cap Screw	4	3/8 - 16 3 3/4 in.
6	S 602	Plain Washer	20	3/8 in.
7	S 604	Lock Washer	12	3/8 in.
8	S 605	Lock Washer	4	5/16 in.
9	S 907 A	Pipe Plug	1	1 1/4 NPT.
10	69047 A	Socket Head Cap Screw	2	3/8 - 16 X 1 1/2 in.
11	103023	Hexagon Head Cap Screw	6	7/16 - 14 X 1 in.
12	172640	Twelve Point Cap Screw	1	3/8 - 16 X 2 in.
13	205354	Twelve Point Cap Screw	1	3/8 - 16 X 1 in.
14	207535	Water Transfer Connection Gasket	1
15	3042329	Plain Washer	23	3/8 in.
16	3042330	Plain Washer	6	3/8 in.
17	3175239	Lock Nut	20
18	3250934	U-Bolt Clamp	10
19	3627961	Thermostat Seal	2
20	3628604	Pipe Plug	3	1/8 - 27 X 0.3 in.
21	3628605	Pipe Plug	1	1/4 - 18.
22	3630248	Water Outlet Connection	1
23	3635158	Thermostat Housing Cover Gasket	1
24	3635160	Thermostat Housing Cover	1
25	3635395	Water Transfer Connection Gasket	2
26	3635396	Water Bypass Tube	1
27	3635398	Water Transfer Tube	1
28	3650263	Water Transfer Tube	1
29	3635519	Flexible Coupling	1
30	3650259	Water Tube Bracket	5
31	3636628	Wear Pad	10
32	3636669	Water Transfer Tube	1
33	3637346	Thermostat Housing	1
34	3637398	Retaining Clamp	6
35	3637402	Wear Sleeve	12
36	3637854	Water Transfer Tube	1
37	3637855	Water Transfer Tube	1
38	3637859	Water Transfer Tube	1
39	3637860	Water Transfer Tube	1
40	3638279	Water Tube Bracket	4
41	3638582	Draincock	2
42	3642028	Retaining Clamp	4
43	3642026	Water Transfer Connection	1
44	3647993	O-Ring Seal	1
45	3642486	T-Bolt Clamp	4
46	3643648	Water Bypass Tube	1
47	4007416	Plain Hose	2
48	3651379	Thermostat	2
49	3647994	O-Ring Seal	8
50	4101150	Connection Gasket	3
51	4956317	Water Outlet Connection	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	23cm12.625cm4.75cm
Weight	5.2kg

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

3650263 QSK38 water bypass tube hose for water cummins water transfer tube QSK50 water bypass tube water transfer tube 3650263 water supply pipe watering hoses tube for water engine water transfer tube

Our rich experience in Cummins engines and spare parts makes us a reliable supplier at home and abroad.
