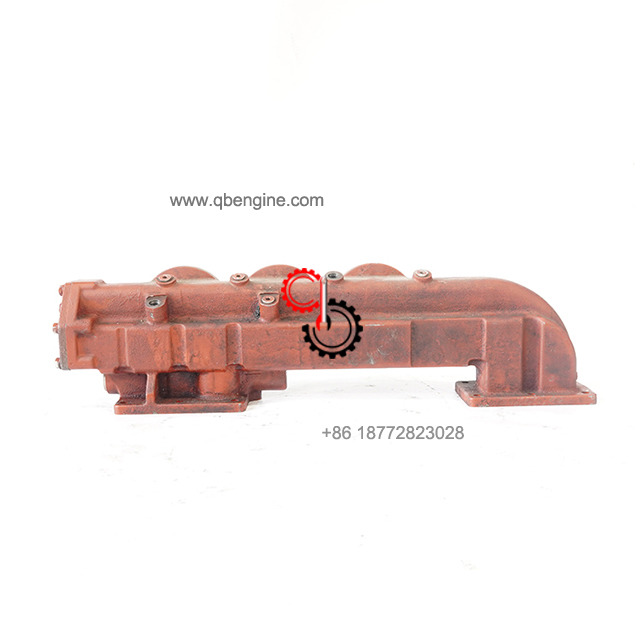

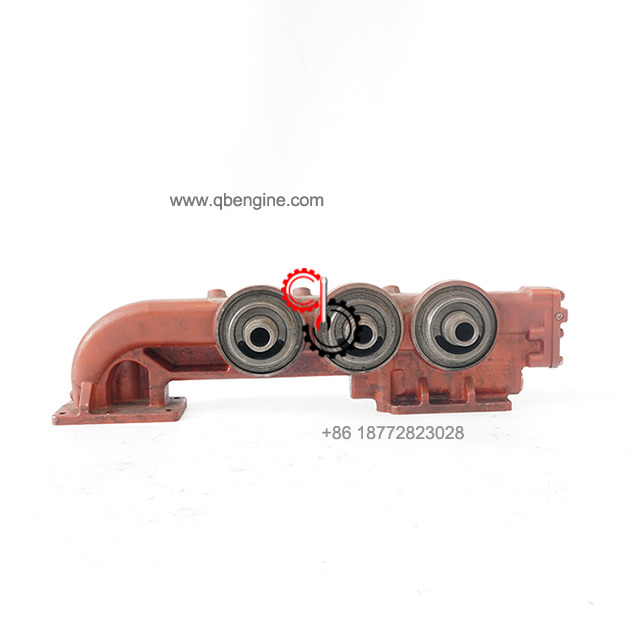

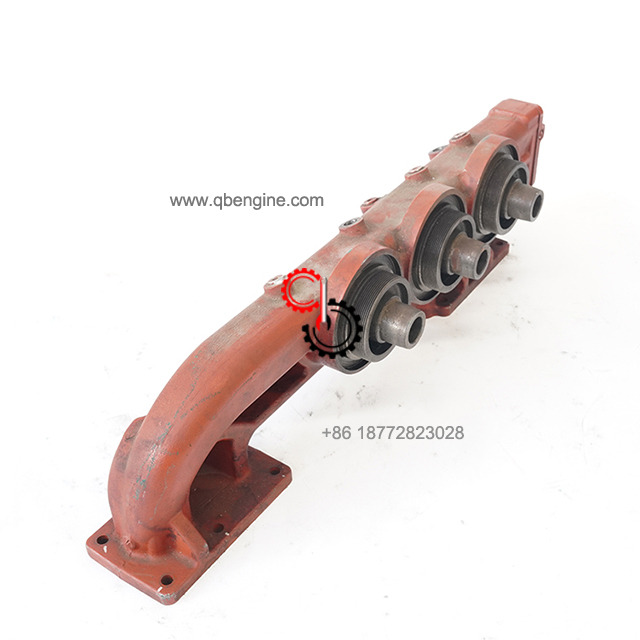

Cummins QSK38 Lubricating Oil Filter Head 3637618

  • QSK38

  • Cummins

  • 3637618

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK38 Lubricating Oil Filter Head 3637618 In Stock

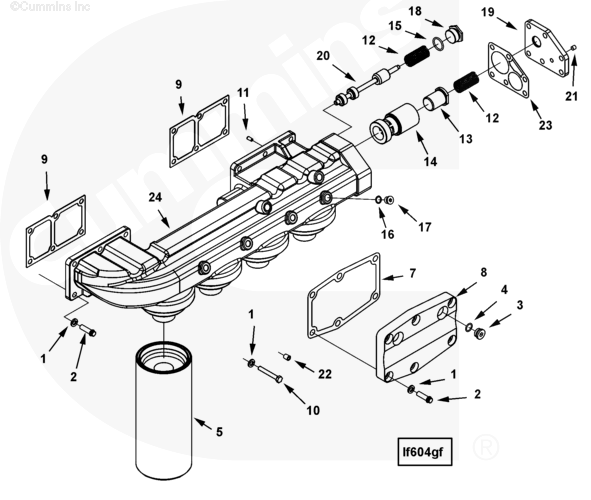

Electronic Parts Catalog - Option Detail
Cummins Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3637618

Ref No Part Number Part Description Required Remarks

LF6081-07 Lubricating Oil Filter

1 S 604 Lock Washer 30 3/8 in.
2 191772 Twelve Point Cap Screw 24 3/8 - 16 X 1 1/4 in.

3046202 Threaded Plug 3 3/4 - 16 UNF.
3 3040810 Threaded Plug 1
4 3046201 O-Ring Seal 1
5 4920071 Lubricating Oil Filter 3
7 3627938 Cover Plate Gasket 2
8 3629146 Oil Transfer Connection 2
9 3629387 Filter Head Gasket 2
10 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
11 69558 Pin Dowel 1
12 205659 Compression Spring 2
13 3021618 Pressure Regulator Plunger 1
14 3028552 Bypass Valve Body 1
15 3035228 O-Ring Seal 1

3037536 Threaded Plug 6 9/16 - 18 UNF
16 3037537 O-Ring Seal 6
17 3040813 Threaded Plug 6 9/16 - 18 UNF

3040818 Threaded Plug 1 1 3/16 - 12 UN
18 3040819 Threaded Plug 1
19 3177433 Cover Plate 1
20 3627927 Pressure Regulator Plunger 1
21 3628604 Pipe Plug 2 1/8 - 27 X 0.3 in.
22 3628605 Pipe Plug 1 1/4 - 18.
23 3629141 Lubricating Oil Filter Cover  Gasket 1
24 3637618 Lubricating Oil Filter Head 1

SHIPMENT CHARACTERISTIC

Length * Width * Height

 78cm*33cm*46cm
Weight 46KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
