Cummins QSK19 Engine Cooling System Parts Fan Hub Assembly 3090373

Name: Cummins QSK19 Engine Cooling System Parts Fan Hub Assembly 3090373
Brand: Cummins
Rating: 5.0 (46 reviews)

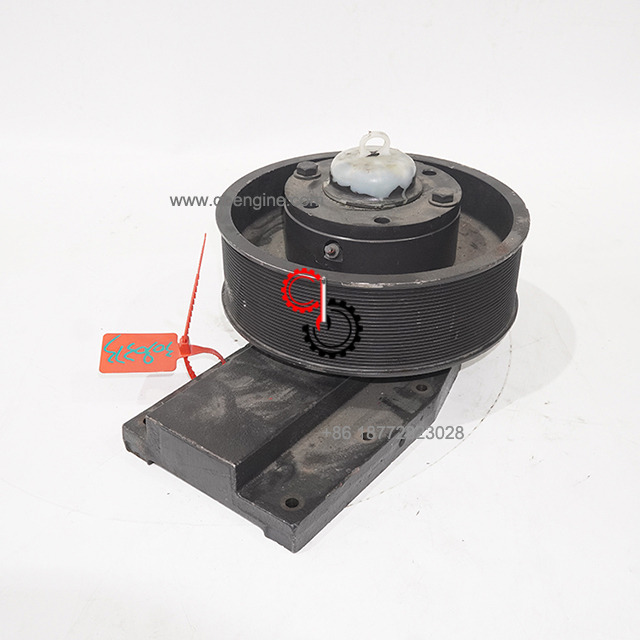

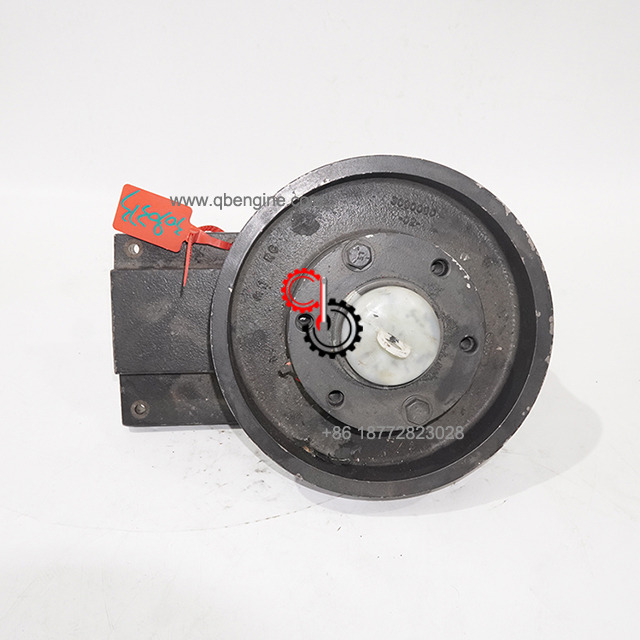

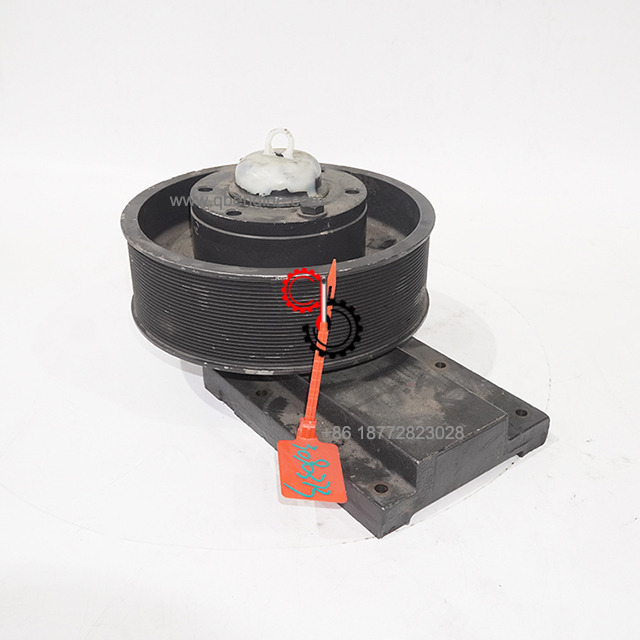

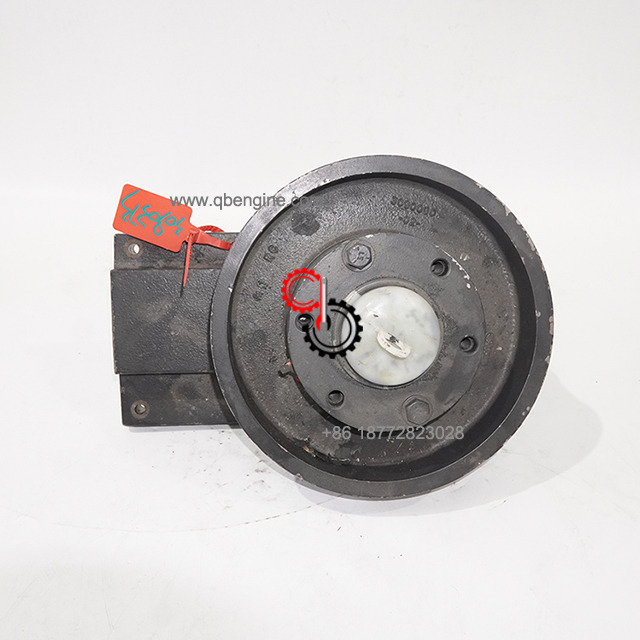

Cummins QSK19 Fan Hub Assembly 3090373

Model:
QSK19
Brand:
Cummins
Code:
3090373
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins QSK19 Fan Hub Assembly 3090373 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3090373

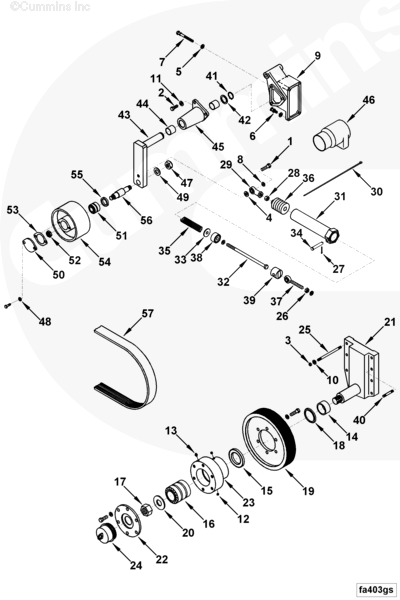

Ref No	Part Number	Part Description	Required	Remarks
	FA4110-11	Fan Drive		Fan Drive
1	S 113	Hexagon Head Cap Screw	1	1/2 - 13 X 1 1/2 in.
2	S 178 C	Hexagon Head Cap Screw	3
3	S 205	Regular Hexagon Nut	8	3/8 - 24 UNF.
4	68050	Plain Washer	1	1/2 in
5	127362	Plain Washer	4	3/8 in.
6	3010596	Captive Washer Cap Screw	2	3/8 - 16 X 1 1/4 in.
7	3010597	Captive Washer Cap Screw	2	3/8 - 16 X 3 3/4 in.
8	3036900	Plain Washer	1	1/2 in.
9	3041859	Alternator Support	1
10	3042329	Plain Washer	8	3/8 in.
11	3042330	Plain Washer	3	3/8 in.
	3090373	Fan Hub	1
12	S 911 B	Pipe Plug	2	1/8 NPT.
13	S 2268	Grease Fitting	1
14	3085857	Wear Sleeve	1
15	3085867	Oil Seal	1
16	3085868	Roller Bearing	1
17	3085869	Lock Nut	1
18	3086279	Dust Seal	1
19	3090090	Fan Pulley	1
20	3090227	Plain Washer	1
21	3090305	Fan Spindle	1
22	3090475	Pilot Adapter	1
23	3090493	Fan Hub	1
24	3096345	Protective Cover	1
25	3201117	Double End Plain Stud	5
	2888888	Belt Tensioner	1
26	S 253	Regular Hexagon Jam Nut	2	1/2 - 20 UNF.
27	S 500	Cotter Pin	1
28	146517	Regular Hexagon Nut	1	1/2 - 20 UNF.
29	177269	Control Rod End	1
30	3076301	Wire Tie Clamp	2
31	3086244	Belt Tensioner Housing	1
32	4967782	Preload Adjusting Screw	1
33	3086251	Spring Retainer	1
34	3086252	Clevis Pin	1
35	3086269	Compression Spring	1
36	3090194	Dust Seal	1
37	3347591	Control Rod End	1
38	3402156	Spring Guide	1
39	2888795	Control Rod Retainer	1
40	4334091	Double End Plain Stud	3
	3086185	Idler Lever	1
41	135530	Retaining Ring	1
42	3086278	Plain Washer	1
43	3329559	Idler Lever	1
	3329561	Pivot Shaft Support	1
44	3329556	Bushing	2
45	3329560	Pivot Shaft Support	1
46	3410136	Dust Seal	1
	3090059	Idler Pulley	1
47	S 249	Regular Hexagon Jam Nut	1	3/4 - 16 UNF.
48	S 626	Plain Washer	2	5/16 in.
49	S 640	Plain Washer	1	3/4 in.
50	207603	Idler Pulley Cover
51	3003354	Roller Bearing	1
52	3004057	Lock Nut	1	3/4 - 16 UNF.
53	3014449	Flange Gasket	1
	3016766	Idler Pulley	1
54	3009483	Idler Pulley	1
55	3065830	Oil Seal	1
56	3086188	Idler Shaft	1
57	3090365	V Ribbed Belt	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	45cm31cm23cm
Weight	36.741KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
