Cummins / Products / Cummins Professional Oil Cooler Assembly 3003814 NT855 Lubricating Oil Cooler 3003814

Cummins Professional Oil Cooler Assembly 3003814 NT855 Lubricating Oil Cooler 3003814

Name: Cummins Professional Oil Cooler Assembly 3003814 NT855 Lubricating Oil Cooler 3003814
Brand: Cummins
Rating: 5.0 (23 reviews)

Cummins NT855 Lubricating Oil Cooler 3003814

Model:
NT855
Brand:
Cummins
Code:
3003814
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins NT855 Lubricating Oil Cooler 3003814 In Stock

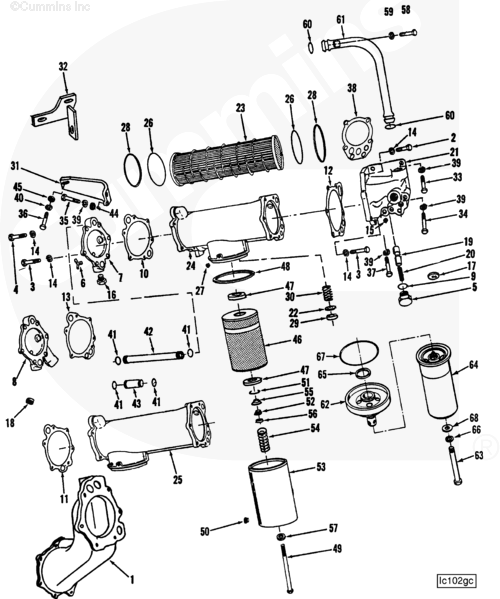

Electronic Parts Catalog - Option Detail
Cummins Engines	NH/NT 855, NT495, NT743, NTA855 N106

3003814

Ref No	Part Number	Part Description	Required	Remarks
	3003814	Lubricating Oil Cooler	1
62	3300426	Assembly Adapter	1
2	S 102 D	Hexagon Head Cap Screw	1	3/8 - 16 x 3 in.
3	S 103 D	Hexagon Head Cap Screw	10	3/8 - 16 x 1 1/4 in.
4	S 104	Hexagon Head Cap Screw	1	3/8 - 16 X 2 1/4 in.
	138045	Hexagon Head Cap Screw	1	5/8 - 18 X 5 in.
	S 126	Hexagon Head Cap Screw	1	3/8 - 16 X 2 1/2 in.
5	3022961	Drain Plug	1
6	S 962 E	Draincock	1
7	217315	Lubricating Oil Cooler Cover	1
9	67946	Plain Washer	1	1 1/32 in.
10	218245	Lubricating Oil Cooler Cover Gasket	1
12	3010030	Lubricating Oil Cooler Cover Gasket	1
65	3308958	Rectangular Ring Seal	1
14	S 604	Lock Washer	12	3/8 in.
14	S 603	Lock Washer	1	5/8 in.
15	S 910 B	Pipe Plug	1	1/4 NPT.
16	110907	Threaded Plug	1	1 - 18 UNS
17	142110	Expansion Plug	1
18	67622	Pipe Plug	1	3/8 NPT.
18	S 911 B	Pipe Plug	1	1/8 NPT
19	127558	Pressure Regulator Plunger	1
67	173368	Rectangular Ring Seal	1
20	68274	Compression Spring	1
21	210967	Oil Cooler Support	1
	AR 9999	Lubricating Oil Cooler	1
22	3018673	Valve Disc	1
23	3021581	Cooler Core	1
25	210915	Oil Filter Cooler Housing	1
26	3007713	O-Ring Seal	2
	3008466	Pipe Plug	1	1/4 NPT.
28	3006745	Retaining Ring	2
29	3023944		1
30	202128	Compression Spring	1
37	210966	Oil Cooler Brace	1
38	S 103 D	Hexagon Head Cap Screw	2	3/8 - 16 x 1 1/4 in.
39	S 106 C	Hexagon Head Cap Screw	2	3/8 - 16 X 4 3/4 in.
40	S 112	Hexagon Head Cap Screw	2	3/8 - 16 X 1 in.
41	S 145	Hexagon Head Cap Screw	1	1/2 - 13 X 1 1/4 in.
42	S 199 B	Hexagon Head Cap Screw	2	3/8 - 16 3 3/4 in.
	43828 B	Hose Clamp	4	1 5/16 - 2 1/4 Inch.
43	3005429	Gasket Oil Cooler To Block	1
	215724	Plain Hose	2
44	S 604	Lock Washer	8	3/8 in.
45	S 608	Lock Washer	1	1/2 in.
47	3000907	Water Transfer Tube	1
48	S 602	Plain Washer	2	3/8 in.
49	203310	Plain Washer	2	9/16 in.
46	212161	O-Ring Seal	2

SHIPMENT CHARACTERISTICS
Length * Width * Height	55cm32cm42cm
Weight	26KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

3003814 Lubricating Oil Cooler 3003814 Lubricating Oil Cooler NT855 Lubricating Oil Cooler cummins Lubricating Oil Cooler oil cooler engine oil coolers

Our rich experience in Cummins engines and spare parts makes us a reliable supplier at home and abroad.
