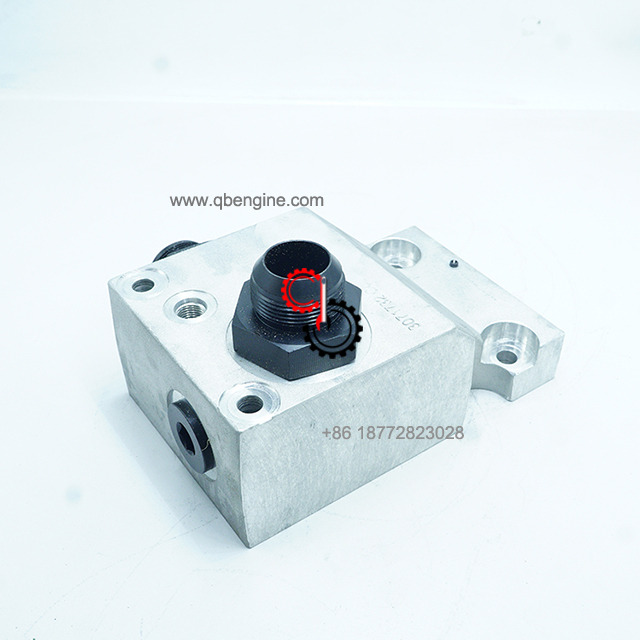

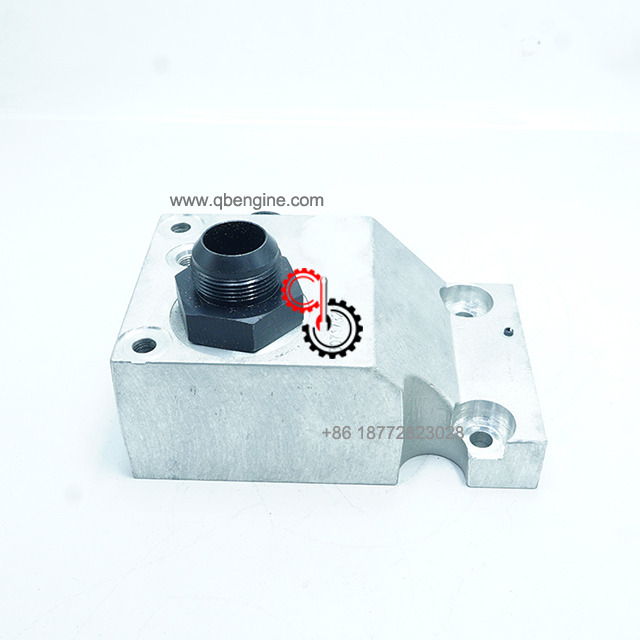

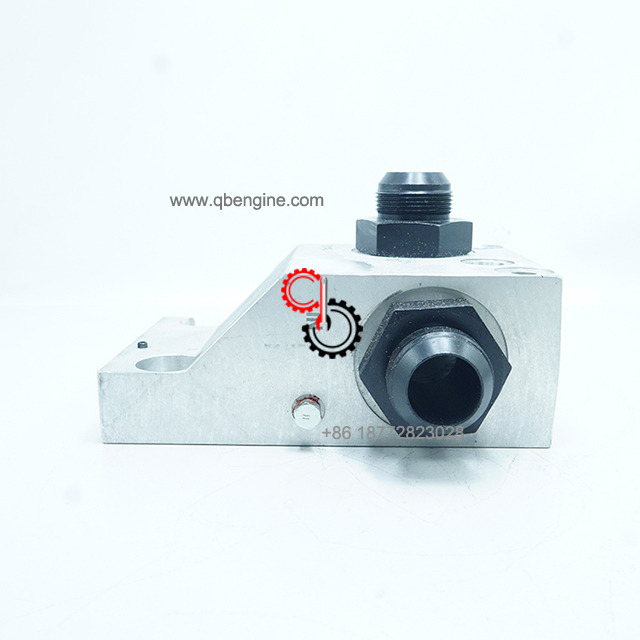

Cummins Oil Transfer Connection 3069849 3071732

  • original

  • Cummins

  • 3069849 3071732

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Oil Transfer Connection 3069849 3071732 In Stock

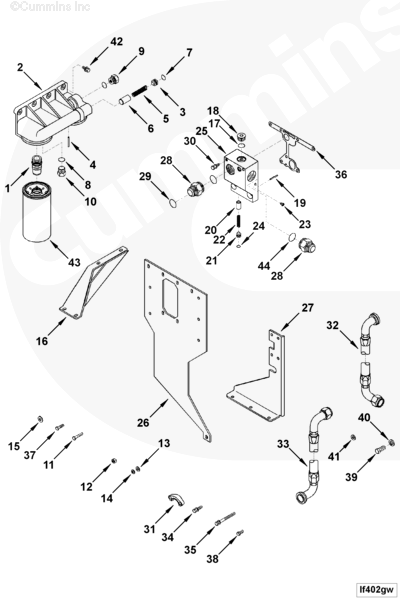

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3069849

Ref No Part Number Part Description Required Remarks

LF4020-02 Oil Filter
Oil Filter...(More)

3047352 Lubricating Oil Filter Head  Assembly 1

3046956 Lubricating Oil Filter Head 1
1 3034578 Filter Head Adapter 2
2 3046644 Lubricating Oil Filter Head 1
3 69533 Actuator Stop 1
4 205345 Roll Pin 2
5 205346 Compression Spring 1
6 205347 Bypass Valve Plunger 1
7 3029820 O-Ring Seal 1

3202092 Female Connector 1
8 3046943 O-Ring Seal 1
9 3050898 Female Connector 1

3883200 Threaded Plug 2 1 1/16 - 12 UNF
8 3046943 O-Ring Seal 1
10 3883201 Threaded Plug 1 1 1/16 - 12 UNF
11 S 120 Hexagon Head Cap Screw 6 3/8 - 16 X 1 3/4 in.
12 S 223 Heavy Hexagon Nut 11 3/8 - 16 UNC
13 S 602 Plain Washer 20 3/8 in.
14 S 604 Lock Washer 11 3/8 in.
15 146162 Plain Washer 17 7/16 in.
16 3070851 Filter Brace 1

3040818 Threaded Plug 1 1 3/16 - 12 UN
17 3035228 O-Ring Seal 1
18 3040819 Threaded Plug 1
19 161737 Roll Pin 1
20 205348 Piston Cooling Valve Plunger 1
21 205350 Retainer Plug 1
22 3007170 Piston Cool Valve Spring 1
23 3025458 Pipe Plug 1 1/8 NPT.
24 3201125 O-Ring Seal 1
25 3069849 Oil Transfer Connection 1
26 3070849 Filter Bracket 1
27 3070850 Filter Brace 1

3070871 Male Union 2
28 3100541 Male Union 1
29 3047714 O-Ring Seal 1
30 3010596 Captive Washer Cap Screw 8 3/8 - 16 x 1 1/4 in.
31 3047361 Retaining Clamp 4
32 3071733 Flexible Hose 1
33 3071734 Flexible Hose 1
34 3035624 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.
35 3042890 Captive Washer Cap Screw 2 3/8 - 16 x 4 in.
36 3200977 Lubricating Oil Filter Cover  Gasket 1
37 S 103 D Hexagon Head Cap Screw 5 3/8 - 16 x 1 1/4 in.
38 S 109 Hexagon Head Cap Screw 2 3/8 - 16 x 7/8 in.
39 S 181 Hexagon Head Cap Screw 1 5/8 - 11 X 1 1/4 in.
40 S 603 Lock Washer 1 5/8 in.
41 108330 Plain Washer 2 3/8 in.
42 3010595 Captive Washer Cap Screw 4 3/8 - 16 X 1 in.
43 3889310 Lubricating Oil Filter Element 2
44 43463 A O-Ring Seal 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 21cm*13cm*7cm
Weight 3.3KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
