Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / Cummins Motor Engine Spare Parts Engine 460V Lubricating Primer 4924922

Cummins Motor Engine Spare Parts Engine 460V Lubricating Primer 4924922

Name: Cummins Motor Engine Spare Parts Engine 460V Lubricating Primer 4924922
Brand: Cummins
Rating: 5.0 (78 reviews)

Cummins Engine 460V Lubricating Primer 4924922

Model:
Original
Brand:
Cummins
Code:
4924922
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

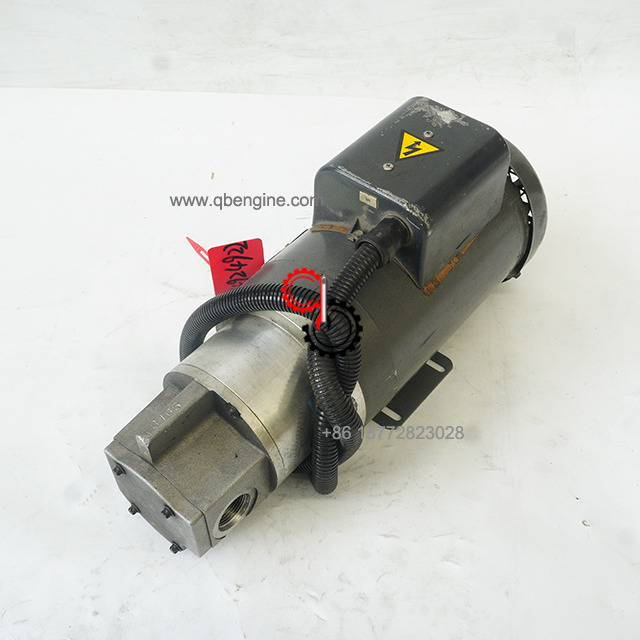

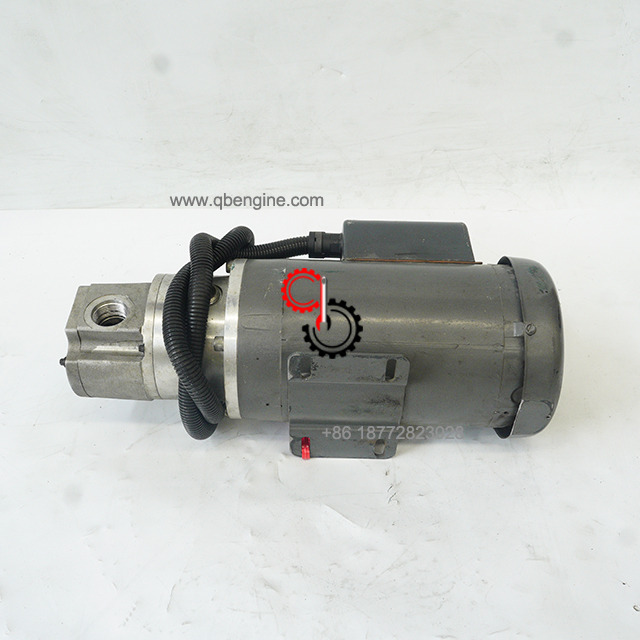

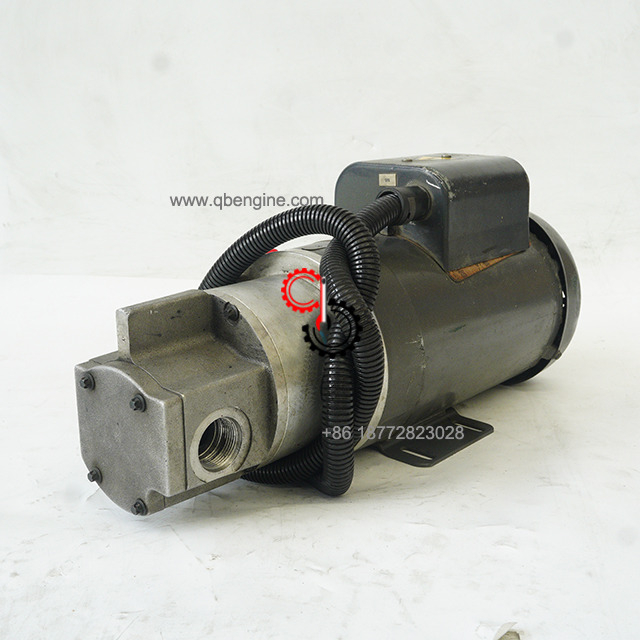

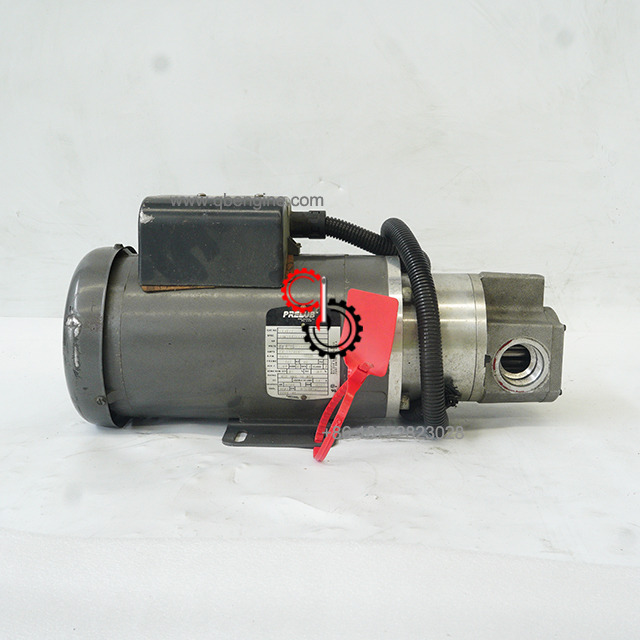

Cummins Engine 460V Lubricating Primer 4924922 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

4924922

Ref No	Part Number	Part Description	Required	Remarks

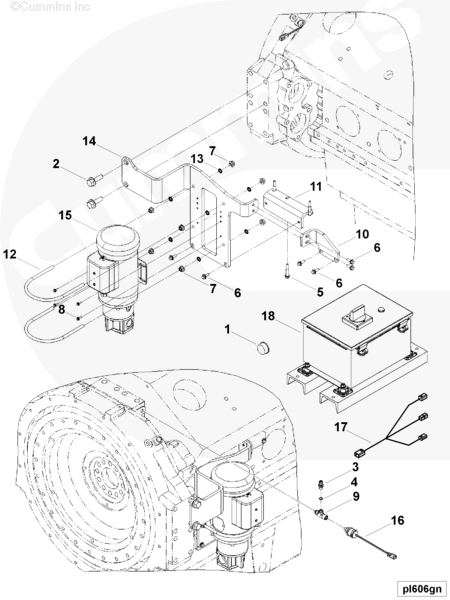

	PL6009-06	Engine Lubrication Primer Arrangement		ENG LBC PMR Arrangement
1	3074408	Protective Cover	1
2	3332175	Hexagon Flange Head Cap Screw	2
	3638767	Coupling Nipple	1
3	3638768	Coupling Nipple	1
4	3678912	O-Ring Seal	1
5	3900635	Hexagon Flange Head Cap Screw	3	M10 X 1.50 X 60.
6	3902460	Hexagon Flange Head Cap Screw	6	M10 X 1.50 X 25.
7	3903210	Hexagon Flange Nut	8	M12 X 1.75.
8	3913638	Hexagon Flange Head Cap Screw	4	M6 X 1.00 X 16.
9	4017212	Male Union Tee	1
10	4098610	Pump Bracket	1
11	4098611	Pump Bracket	1
12	4098612	U-Bolt	2
13	4382181	Lock Washer	8
14	4918000	Pump Bracket	1
15	4924922	Engine Lubricating Primer	1
16	4924925	Pressure Switch	1
17	4924942	Wiring Harness	1
18	4944324	Current Support Control	1
	4916988	Pump Shaft	1	Used To Service 4924922.
	4916989	High Volume Pump Assembly	1	Used To Service 4924922.
	4924526	460 V Replacement Motor	1	Used To Service 4924922.
	4924912	Shaft Set Screw	2	Used To Service 4924922.
	4924913	1 / 2" Npt Halloe Hexagon Plug	1	Used To Service 4924922.
	4924914	C-Face Pump Mount Adapter	1	Used To Service 4924922.
	4924915	Adapter Bolts	4	Used To Service 4924922.
	4924916	O-Ring	1	Used To Service 4924922.
	4924918	Torx Mounting Bolts	3	Used To Service 4924922.
	4924911	Metal Enclosure	1	Used To Service 4944324.
	4924921	Prelub Control Module	1	Used To Service 4944324.
	4924923	Panel Mount Led	1	Used To Service 4944324.
	4924929	Transformer	2	Used To Service 4944324.
	4924931	Shunt Trip Device	1	Used To Service 4944324.
	4924932	460 V Manual Motor Starter	1	Used To Service 4944324.
	4924933	Manual Operator	1	Used To Service 4944324.
	4924934	Auxiliary/Alarm Contacts	1	Used To Service 4944324.
	4924935	Short Circuit Contacts	1	Used To Service 4944324.
	4924936	Terminal Cover	1	Used To Service 4944324.
	4924937	460 V Contactor	1	Used To Service 4944324.
	4924938	Strain Relief Locking Nut	2	Used To Service 4944324.
	4924939	Strain Relief Seal Ring	2	Used To Service 4944324.
	4924940	Liquid Tight Strain Relf	2	Used To Service 4944324.
	4924943	2 Amplifier , Ato-Mini Fuse	2	Used To Service 4944324.
	4944326	Vibration Isolator	4	Used To Service 4944324.
	4944327	Hexagon Head Cap Screw	4	Used To Service 4944324.
	4944328	Plain Washer	4	Used To Service 4944324.
	4944329	Lock Nut	4	Used To Service 4944324.
	4944330	Control Box Bracket	1	Used To Service 4944324.
	4944331	Hexagon Head Cap Screw	16	Used To Service 4944324.
	4944332	Hexagon Head Cap Screw	4	Used To Service 4944324.
	4944333	Plain Washer	8	Used To Service 4944324.
	4944334	Lock Nut	4	Used To Service 4944324.

SHIPMENT CHARACTERISTICS
Length * Width * Height	48cm33cm36cm
Weight	34.019KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

4924922 engine lubricating primer 460V engine lubricating primer lubricating primer engine lubricating primer 4924922 cummins lubricating primer lubricating primer 4924922 cummins engine lubricating primer
