Cummins / Cummins Parts / Piston, Cylinder Liner, Connecting Rod, Bearing, Bushing / Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431

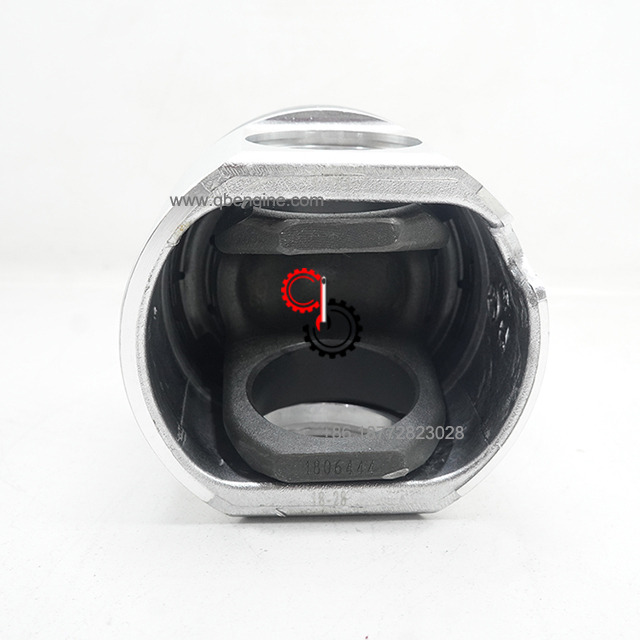

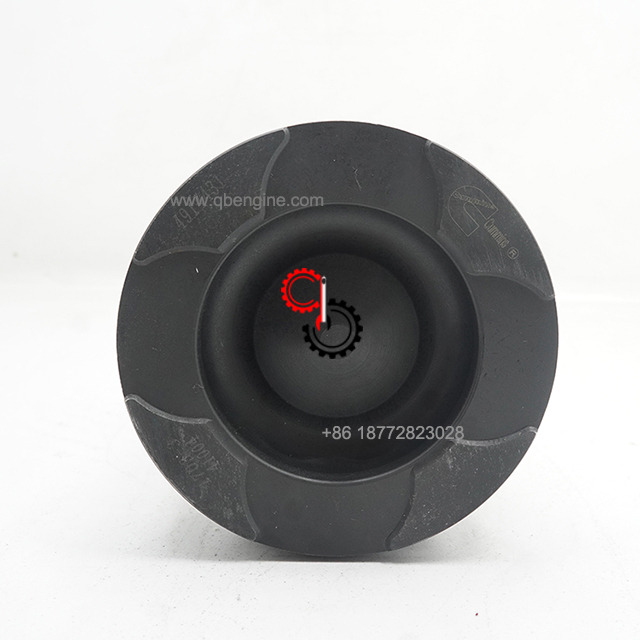

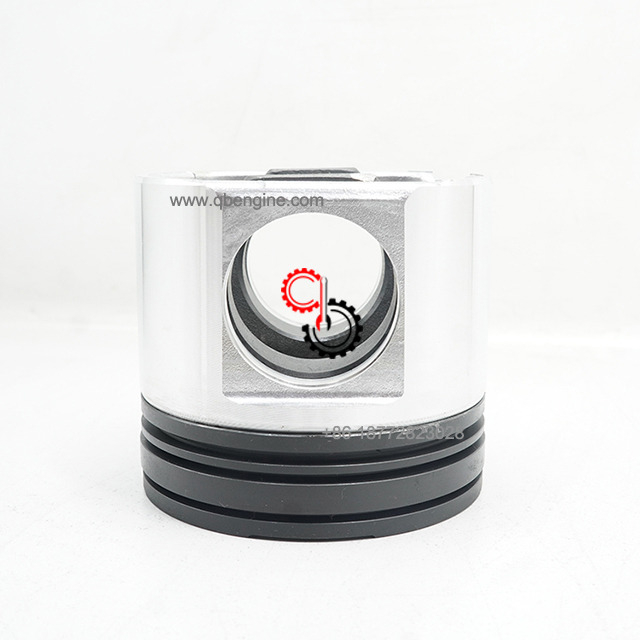

Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431
Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431 Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431
Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431 Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431
Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431 Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431

loading

Cummins M11 QSM11 Engine Part Split Piston 4914431 Piston Top 4914431

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins M11 QSM11 Piston Top 4914431

  • M11 QSM11

  • Cummins

  • 4914431

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins M11 QSM11 Piston Top 4914431 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4914431

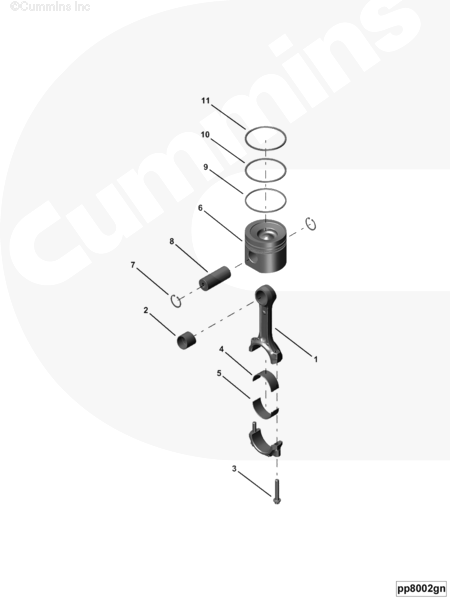

Ref No Part Number Part Description Required Remarks

PP43486 Performance Parts
Connecting Rod And Piston

4083569 Engine Connecting Rod 6
1 3896970 Engine Connecting Rod 1
2 3896894 Bushing 1
3 3027108 Connecting Rod Cap Screw 2

3027106 Ring Dowel 2 Item Not Shown In Art.
4 3016760 Connecting Rod Bearing 6 Standard.
5 3016760 Connecting Rod Bearing 6 Standard.
6 4914368 Piston , Engine Top Level Assembly 6
6 4070653 Piston Skirt 1
6 4914431 Piston Top 1
7 3016652 Retaining Ring 12
8 4083244 Piston Pin 6
9 3102367 Oil Piston Ring 6
10 3899413 Compression Piston Ring 6
11 3893752 Compression Piston Ring 6

3070393 Banjo Connector Screw 6 Item Not Shown In Art.

3080708 Piston Cooling Nozzle 6 Item Not Shown In Art.

3803977 Piston Ring Set A/R

3102367 Oil Piston Ring 1

3893752 Compression Piston Ring 1

3899413 Compression Piston Ring 1

3016760 Connecting Rod Bearing A/R Standard.

3016761 Connecting Rod Bearing A/R 0.25 mm Oversize.

3016762 Connecting Rod Bearing A/R 0.50 mm Oversize.

3016763 Connecting Rod Bearing A/R 0.75 mm Oversize.

3016764 Connecting Rod Bearing A/R 1.00 mm Oversize.



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
