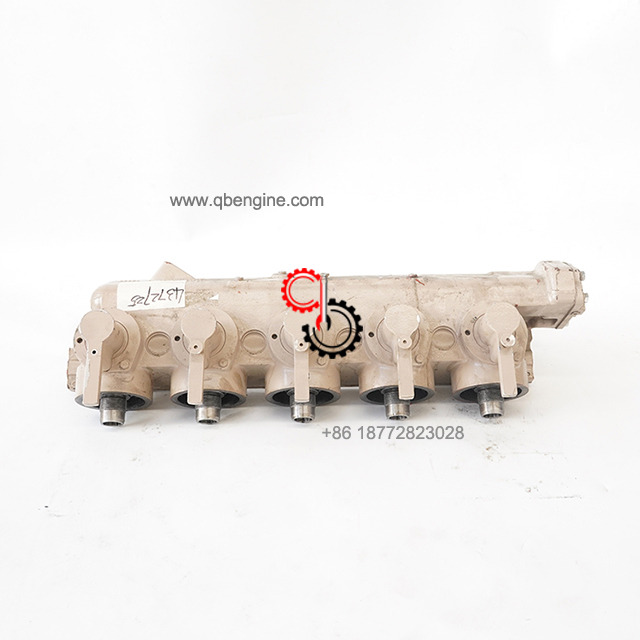

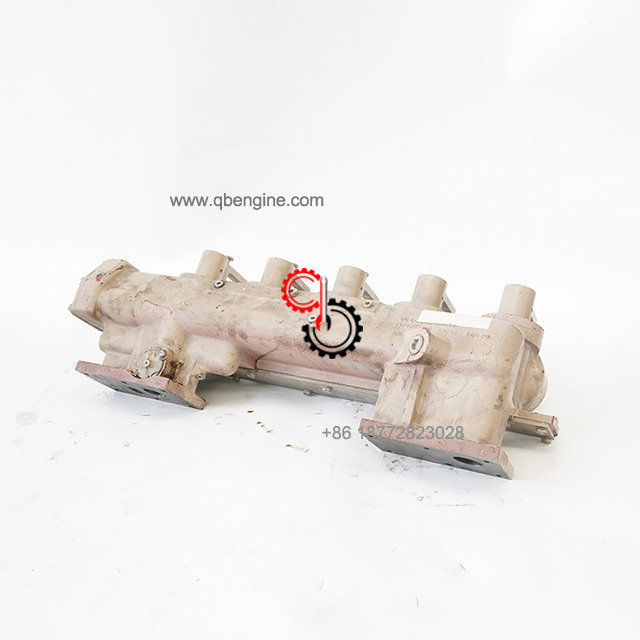

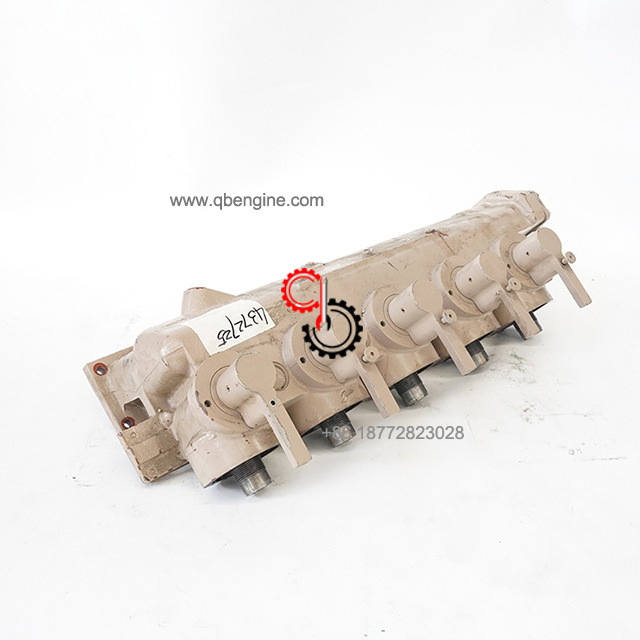

Cummins KTA50 Lubricating Oil Filter Head 4372725 3642542 3178448

  • KTA50

  • Cummins

  • 4372725 3642542 3178448

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins KTA50  Lubricating Oil Filter Head 4372725 3642542 3178448 In Stock

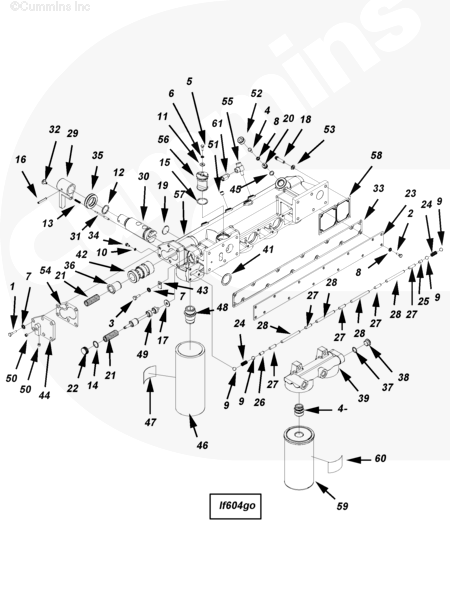

Electronic Parts Catalog - Option Detail
Cummins Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

4372725

Ref No Part Number Part Description Required Remarks

LF6090-03 Lubricating Oil Filter
Lubricating Oil Filter
1 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
2 S 107 Hexagon Head Cap Screw 14 5/16 - 18 X 3/4 in.
3


Item Not In This Version.
4


Item Not In This Version.
5 S 114 Hexagon Head Cap Screw 1 1/4 - 20 X 3/4 in.
6 S 600 Lock Washer 1 1/4 in.
7 S 604 Lock Washer 6 3/8 in.
8 S 605 Lock Washer 14 5/16 in.
9 S 1747 Ball 4
10 8078 Plain Washer 5 1/4 in.
11 62392 Plain Washer 1 1/4 in.
12 68910 O-Ring Seal 5
13 144195 Compression Spring 5
14


Item Not In This Version.
15 145578 O-Ring Seal 1
16 148976 Roll Pin 5
17


Item Not In This Version.
18 199919 Twelve Point Cap Screw 12 3/8 - 16 X 1 1/2 in.
19 204476 Expansion Plug 4
20


Item Not In This Version.
21 205659 Compression Spring 2
22


Item Not In This Version.
23 3015001 Cover Plate 1
24 3015002 Compression Spring 2
25 3015003 Filter Head Link 1
26 3015004 Filter Head Link 1
27 3015005 Filter Head Link 5
28 3015006 Filter Head Link 4
29 3015007 Filter Head Lever 5
30 3015008 Filter Head Plunger 5
31 3015009 Detent Rod 5
32 3015010 Knurled Nut 5
33 3015029 Cover Plate Gasket 1
34 3015086 Hexagon Head Cap Screw 5 1/4 - 28 X 1/2 in.
35 3015202 Shaft Retainer 5
36 3021618 Pressure Regulator Plunger 1

3021658 Lubricating Oil Filter Head 1
37 43696 A O-Ring Seal 2
38 139473 O-Ring Plug 2 7/8 - 14 UNF.

3033405 Lubricating Oil Filter Head 1
39 3010636 Fuel Filter Head 1
40 3037219 Filter Head Insert 2
41 3026393 O-Ring Seal 5
42 3028552 Bypass Valve Body 1

3040818 Threaded Plug 1 1 3/16 - 12 UN.

3035228 O-Ring Seal 1 Item Not Shown In Art.

3040819 Threaded Plug 1 Item Not Shown In Art.
43


Item Not In This Version.
44 3177433 Cover Plate 1
45


Item Not In This Version.
46 3313305 Lubricating Oil Filter Element 5
47 3393576 Decal 5
48 3627309 Filter Head Adapter 5
49 3627927 Pressure Regulator Plunger 1
50 3628604 Pipe Plug 2
51 3628605 Pipe Plug 4
52 3628607 Pipe Plug 1
53 3628902 Plain Washer 12
54 3629141 Lubricating Oil Filter Cover  Gasket 1
55 3629507 Street Pipe Tee 2
56 3637978 Shut-Off Valve Rotor 1
57 4372725 Lubricating Oil Filter Head 1
58 3643837 Filter Head Gasket 2
59 3889311 Oil Bypass Filter Element 2
60 3889382 Decal 2
61 4380349 Female Connector 2


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
