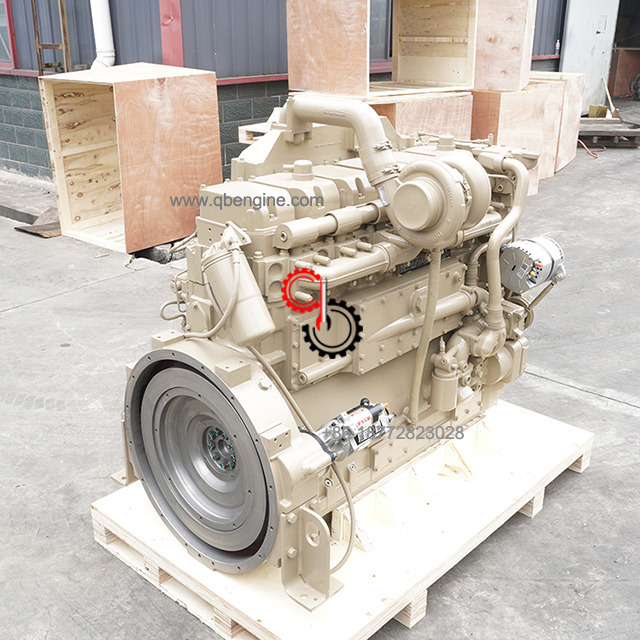

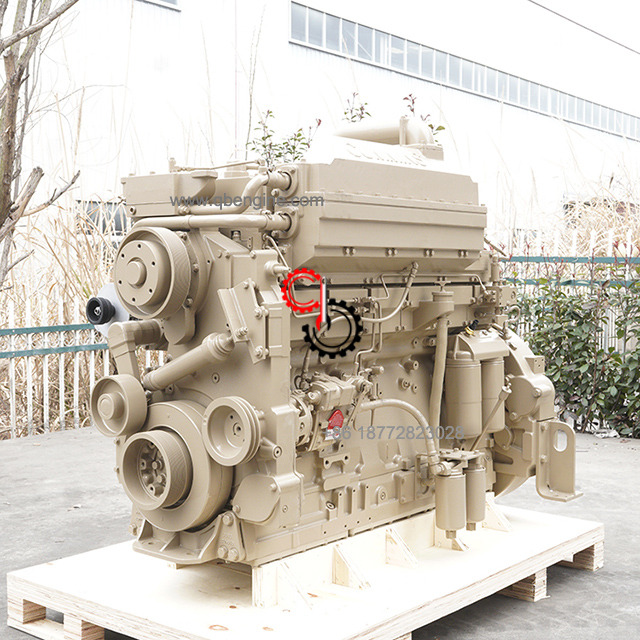

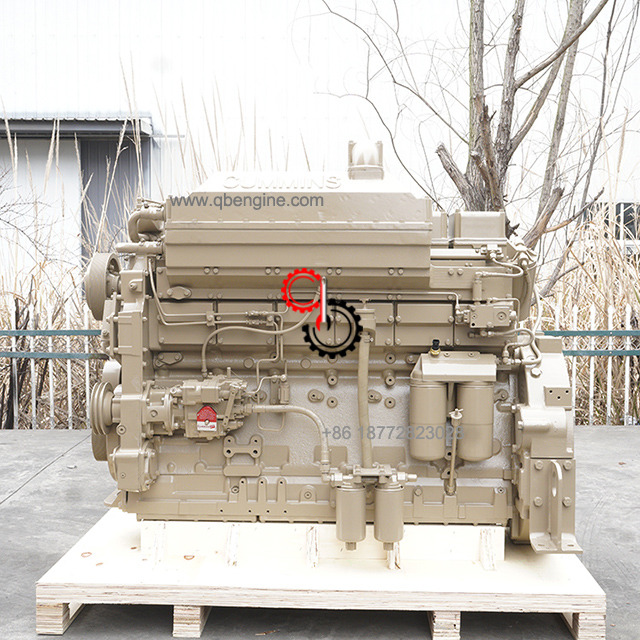

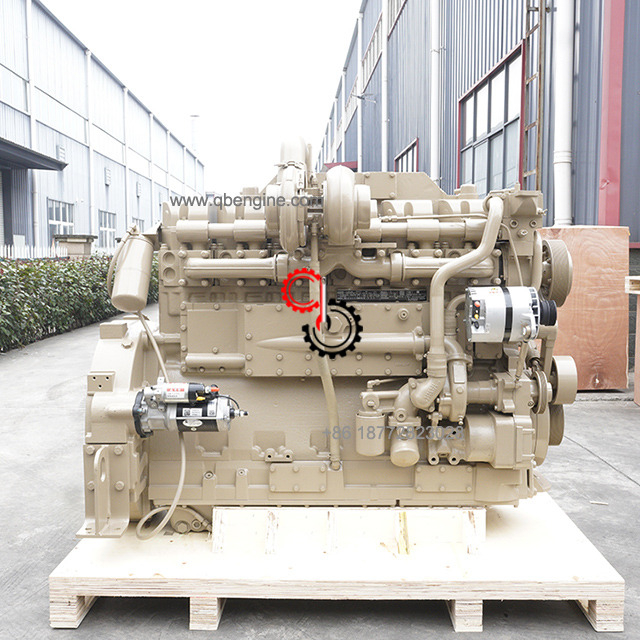

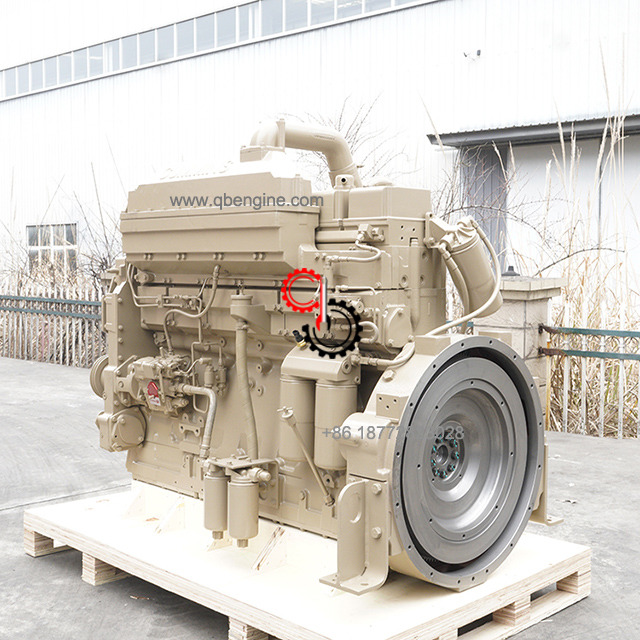

Cummins KTA19-P750 Engine Overview
| Item | Data |
| Engine Model | KTA19-P750
|
| Displacement | 19L
|
| Cylinder | 6 cylinders
|
| Cooling Method | Water- cooled |
| Power Range | 750HP
|
| Emission Standard | EURO 3 , EURO 4 , EURO 2 |
CONFIGURATIONS AND MODEL NAMES |
EPA Model Name | Not Available |
Marketing Engine Configuration # | D193113CX02 |
Marketing Model Name | KTA-19-C(600) |
Service Model Name | K19 |
Technical Engine Configuration # | D193113CX02 |
ENGINE BUILD DETAILS |
Build Date | 2023-10-25T00:00:00Z |
Build Plant | CQP - CHINA - CHONGQING (CCEC) |
CPL # | 4153 |
Shop Order | SO46272 |
Warranty Start Date | Not Available |
TECHNICAL SPECIFICATION DETAILS |
ECM Code | Not Available |
Fuel Pump Part # | Not Available |
Fuel Pump Calibration | 9999 |
KTA19 Lean Burn Gas Series
The KTA19 Gas Low Emissions Series provides simple, high efficiency, lean burn natural gas engines. These gas g-drive engines are offered in standby applications that focus on extreme transient capability through load pickup and the ability to meet NFPA 110 requirements. In addition, these Gas Low Emissions Series models meet EPA NSPS Certification and supply air fuel ratio control through Cummins ECMs, the complete Cummins Control System.
Features & Benefits
Turbocharger: Cummins Turbo Technologies Turbocharger for increased power and fuel economy.
Applications: Standby applications offering extreme transient capability by picking up block load and meeting NFPA 110 requirements.
Combustion Technology: Lean burn Combustion, capable of satisfying emissions standards without the use of aftertreatment systems.
Ignition System: Altronic CD200 Ignition System, which can be easily adjusted when necessary.
Fuel System: Impco Carburator and Maxitrol Regulator fuel system components provide stable operation and fuel tracking.
Service and Support: Gas G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service network.
Additional ratings may be available. Check with Qingbang Online Service.
