Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363
Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363
Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363 Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363
Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363 Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363
Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363 Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363

loading

Cummins K38 K50 Timing Drive Part Alloy Cast Steel Idler Gear 3628822 3632363

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

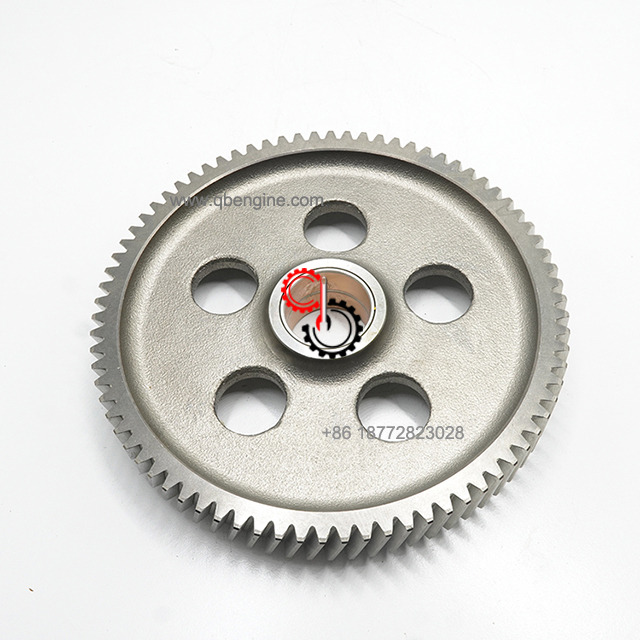

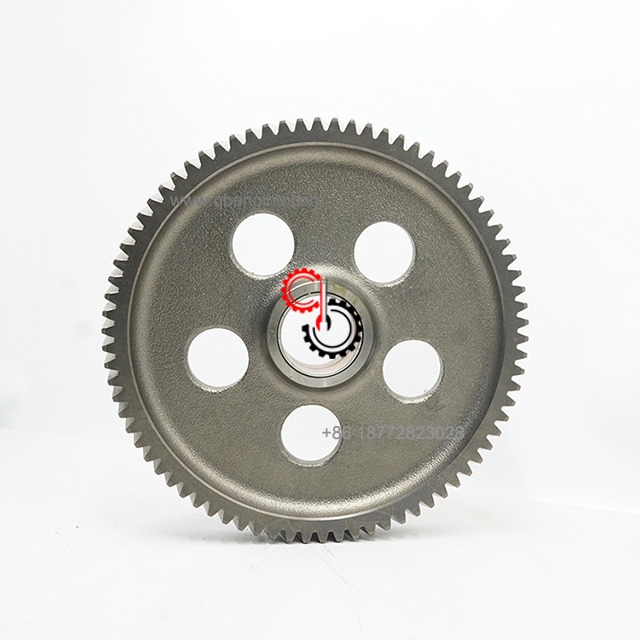

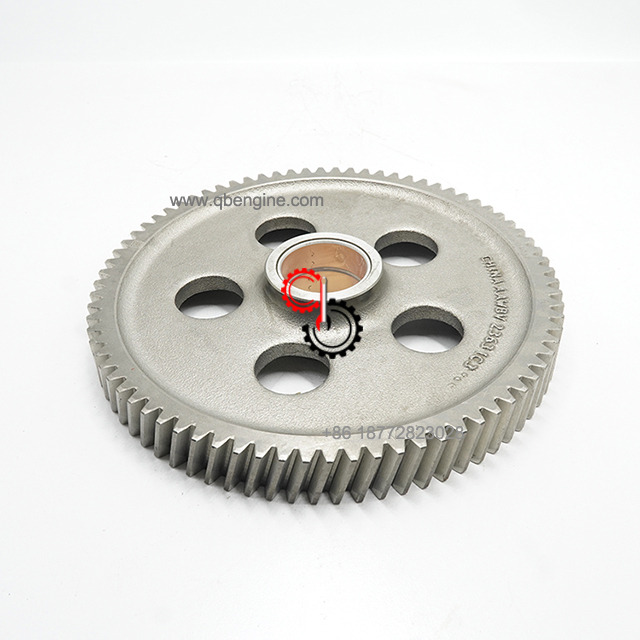

Cummins K38 K50 Idler Gear 3628822 3632363

  • K38 K50

  • Cummins

  • 3628822 3632363

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Idler Gear 3628822 3632363 In Stock

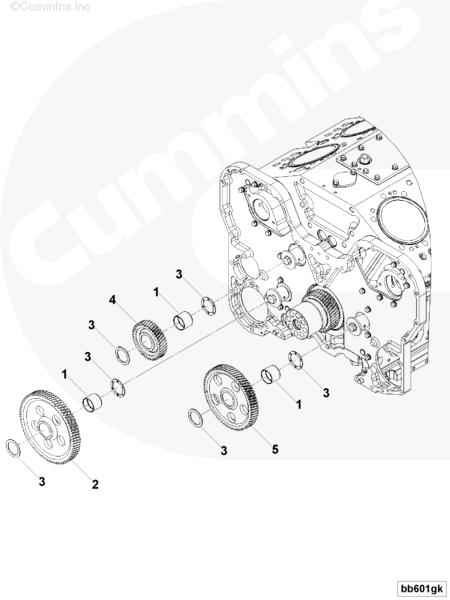

Electronic Parts Catalog - Option Detail
Cummins Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3628822

Part  Number Part Description Required Remarks
BB6758 Idler Gears
Idler Gears
3628822 Idler Gear 1
3004686 Bushing 1
3632363 Idler Gear 1
130083 Thrust Bearing 6
3004683 Idler Gear 1
3004686 Bushing 1
3004594 Idler Gear 1
3628823 Idler Gear 1
3004686 Bushing 1
3632362 Idler Gear 1
3033853 Idler Shaft 2
3178457 Plain Washer 3 5/8 in.
130081 Thrust Bearing A/R
130080 Thrust Bearing A/R
130082 Thrust Bearing A/R

SHIPMENT CHARACTERISTIC

Length * Width * Height

 36cm*36cm*17cm
Weight 7.268KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
