Cummins / Products / Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716
Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716
Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716 Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716
Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716 Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716
Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716 Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716

loading

Cummins K38-G Generators Set Parts Intake Pipe 3179716 Air Inlet Tube 3179716

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

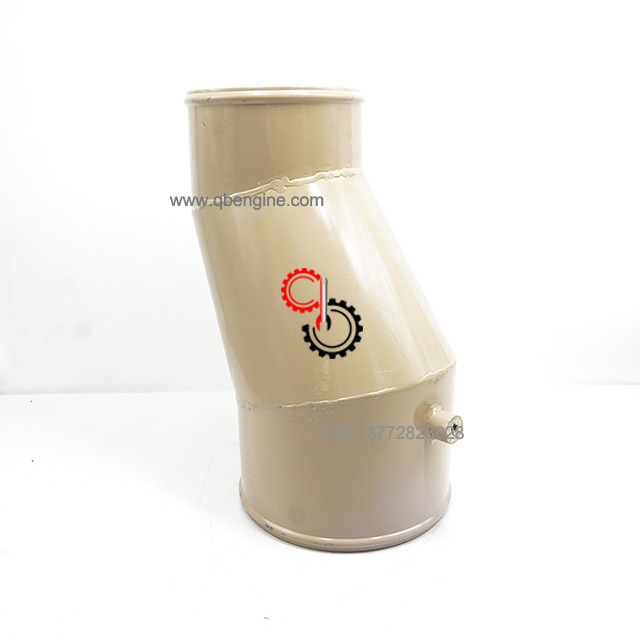

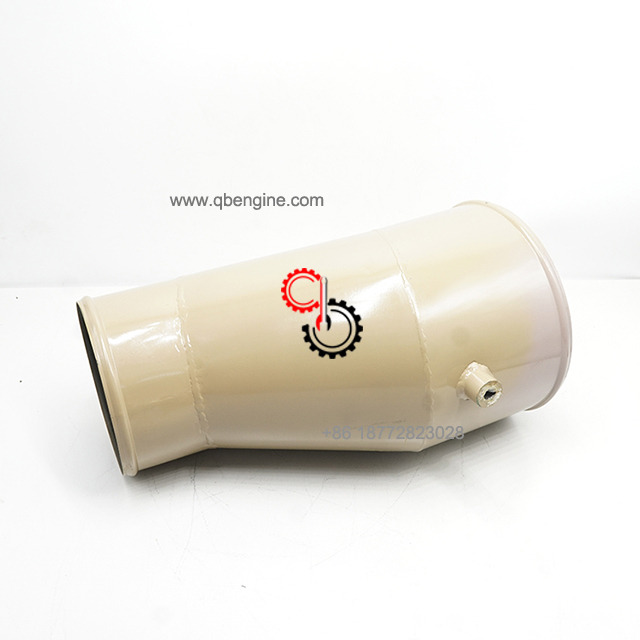

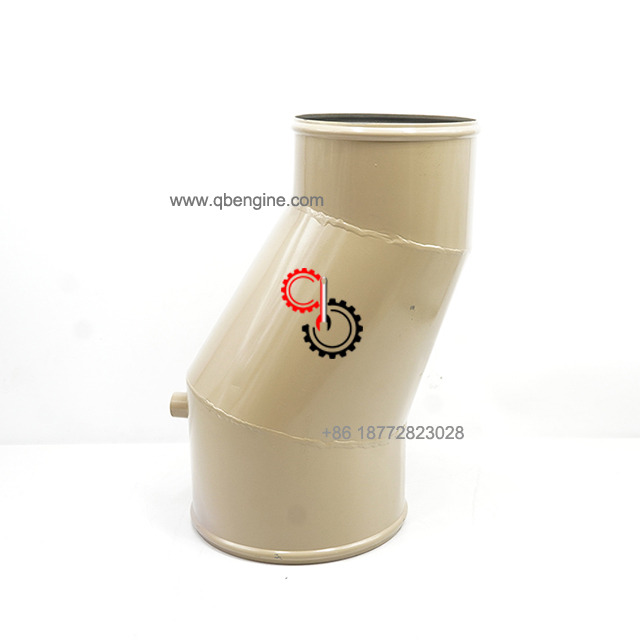

Cummins Air Inlet Tube 3179716

  • Original

  • Cummins

  • 3179716

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Air Inlet Tube 3179716 In Stock

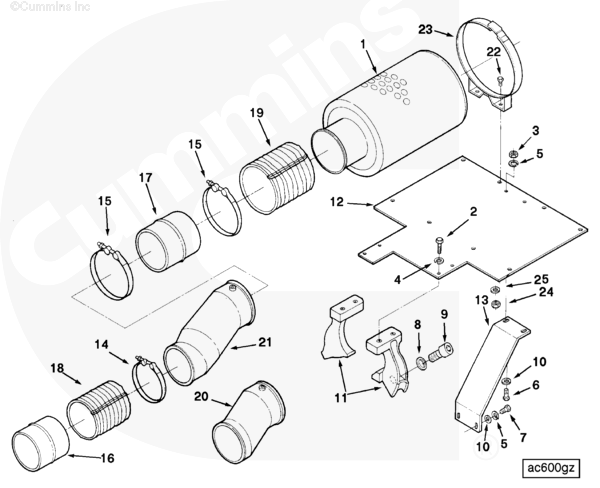

Electronic Parts Catalog - Option Detail
Cummins Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3179716

Ref No Part Number Part Description Required Remarks

AC6046-01 Air Cleaner
Two Frammodel FA-592CU...(More)
1 3028847 Air Cleaner 2
2 S 145 Hexagon Head Cap Screw 4 1/2 - 13 X 1 1/4 in.
3 S 217 Heavy Hexagon Nut 10 7/16 - 14 UNC.
4 S 608 Lock Washer 4 1/2 in.
5 S 610 Lock Washer 12 7/16 in.
6 103009 Hexagon Head Cap Screw 10 7/16 - 14 X 1 1/4 in.
7 185804 Hexagon Head Cap Screw 2 7/16 - 14 X 1 3/8 in.
8 205059 Plain Washer 2 3/4 Inch.
9 206028 Socket Head Cap Screw 2 3/4 - 10 X 2 1/4 Inch.
10 3000082 Plain Washer 4 15/32 in.
11 3051793 Turbocharger Support 2
12 3179714 Air Cleaner Bracket 1
13 3179715 Air Cleaner Support 1
14 125741 T-Bolt Clamp 4 6 in.
15 140314 T-Bolt Clamp 4 7 5/8 Inch.
16 3014244 Hump Hose 2
17 3030792 Hump Hose 2
18 3631821 Heat Shield 2
19 3631822 Heat Shield 2
20 3179716 Air Inlet Tube 1
21 3179720 Air Inlet Tube 1
22 S 111 Hexagon Head Cap Screw 4 5/16 - 18 X 1 1/2 in.
23 197221 Air Cleaner Strap 4
24 109558 Lock Nut 4 5/16 - 18 Inch.
25 S 626 Plain Washer 8 5/16 in.


SHIPMENT CHARACTERISTICS
Length * Width * Height 46cm*26cm*21cm
Weight 2.8KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
