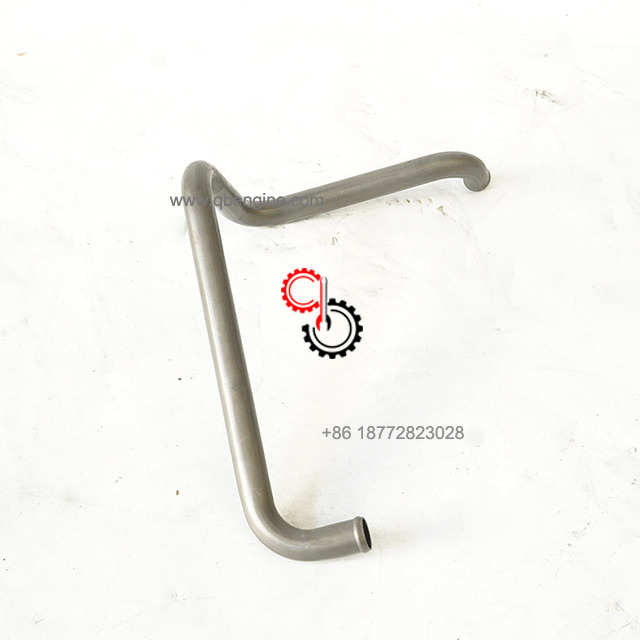

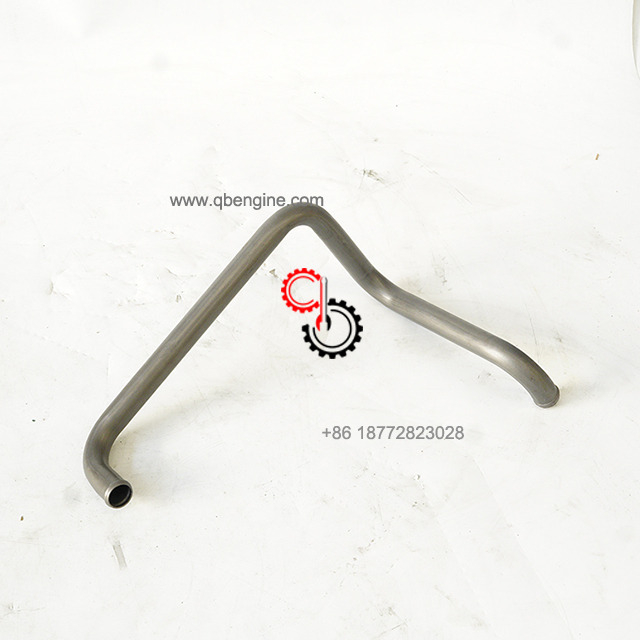

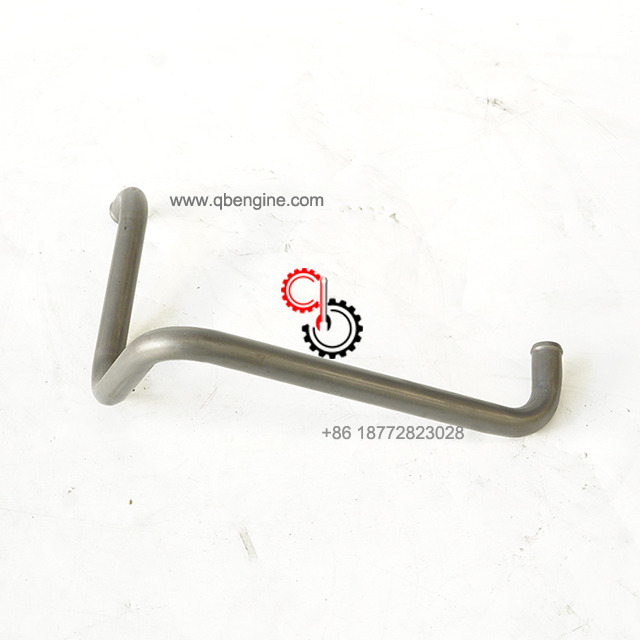

Cummins K19 KTA19 Water Transfer Tube 3002179 3010921

  • K19 KTA19

  • Cummins

  • 3002179 3010921

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 KTA19 Water Transfer Tube 3002179 3010921 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3002179

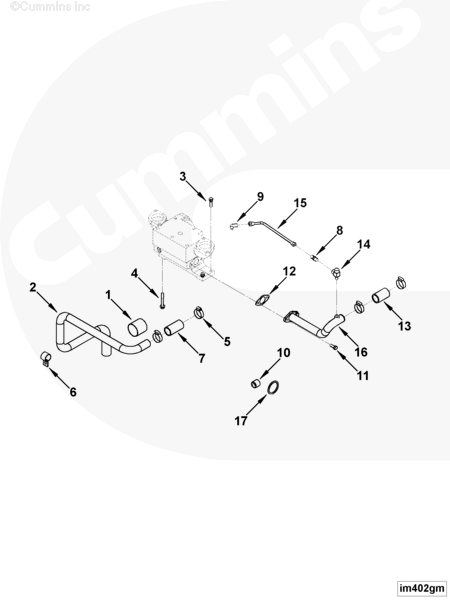

Ref No Part Number Part Description Required Remarks

IM4006-02 Intake Manifold
Aftercooled intake  manifold....(More)
1 207378 Water Transfer Tube 1
2 3002179 Water Transfer Tube 1
3 3012472 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.
4 3060567 Captive Washer Cap Screw 2 3/8 - 16 x 2 3/4 in.
5 209773 Hose Clamp 4 3/4 - 1 3/4 in
6 3010922 Clip 1
7 3818271 Plain Hose 2

3016728 Aftercooler Connection 1
8 143950 Male Connector 1
9 144372 Male Adapter Elbow 1
10 3008466 Pipe Plug 1 1/4 NPT.
11 3010595 Captive Washer Cap Screw 2 3/8 - 16 X 1 in.
12 3010926 Flange Gasket 1
13 3017276 Plain Hose 1
14 3175687 Street Pipe Tee 1
15 3201384 Vent Tube 1
16 3201401 Water Transfer Connection 1
17 3028291 O-Ring Seal 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 46cm*32cm*23cm
Weight 1.238KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
