Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372
Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372 Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372
Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372 Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372
Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372 Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372

loading

Cummins K19 Engine Torque Converter Oil Cooler Cover 3042372

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins K19 Torque Converter Oil Cooler Cover 3042372

  • K19

  • Cummins

  • 3042372

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 Torque Converter Oil Cooler Cover 3042372 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3042372

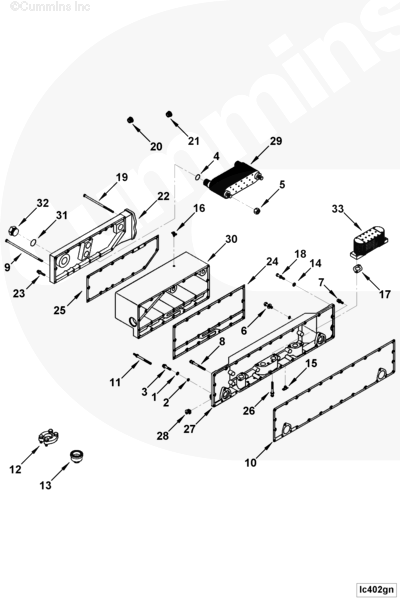

Ref No Part Number Part Description Required Remarks

LC4704 Engine Oil Cooler
Engine Oil Cooler...(More)
1 S  604 Lock Washer 12 3/8 in.
2 127362 Plain Washer 12 3/8 in.
3 205275 Twelve Point Cap Screw 4 3/8 - 16 X 1 3/4 in.
6 3033038 Captive Washer Cap Screw 2 3/8 - 16 X 1 5/8 in.
7 3040838 Captive Washer Cap Screw 10 3/8 - 16 X 1 1/4 in.
8 3042890 Captive Washer Cap Screw 3 3/8 - 16 X 4 in.
9 3062410 Hexagon Head Cap Screw 7 3/8 - 16 X 11 1/4 in.
10 3065790 Lubricating Oil Cooler Housing  Gasket 1
11 3329535 Studded Flange Cap Screw 4
12 3349777 Flange 2
13 3349778 Reducing Adapter 2

4081284 Engine Oil Cooler 1
4 212161 O-Ring Seal 8
5 3002126 Lock Nut 4
14 S 602 Plain Washer 2 3/8 in.
15 S 923 E Draincock 1 1/4 NPTF.
16 S 962 E Draincock 1
17 206973 Oil Cooler Core Gasket 4
18 3012474 Captive Washer Cap Screw 2 3/8 - 16 x 2 in.
19 3013222 Hexagon Head Cap Screw 8 3/8 - 16 x 9 in.
20 3037536 Threaded Plug 1 9/16 - 18 UNF.
21 3040995 Threaded Plug 1 9/16 - 18 UNF.
22 3042372 Torque Converter Oil Cooler Cover 1
23 3042889 Captive Washer Cap Screw 1 3/8 - 16 X 1 7/8 in.
24 3065791 Torque Converter Cooler Gasket 1
25 3065792 Torque Converter Cooler Gasket 1
26 3078053 Captive Washer Cap Screw 8 3/8 - 16 X 3 1/2 in.
27 3085955 Oil Cooler Housing 1
28 3202101 Threaded Plug 2 1 1/16 - 12 UN.
29 3635074 Cooler Core 2
30 3090449 Torque Converter Cooler Housing 1

3200781 Drain Plug 1
31 145540 O-Ring Seal 1
32 206256 Threaded Plug 1 1 3/4 - 18 UNS.
33 4095096 Cooler Core 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 76cm*25cm*18cm
Weight 21.792KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
