Cummins ISX15 Electronic Control Module Wiring Harness 2891973 2871307 3684480

  • ISX15

  • Cummins

  • 2891973 2871307 3684480

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX15 ECM Wiring Harness 2891973 2871307 3684480 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

2891973

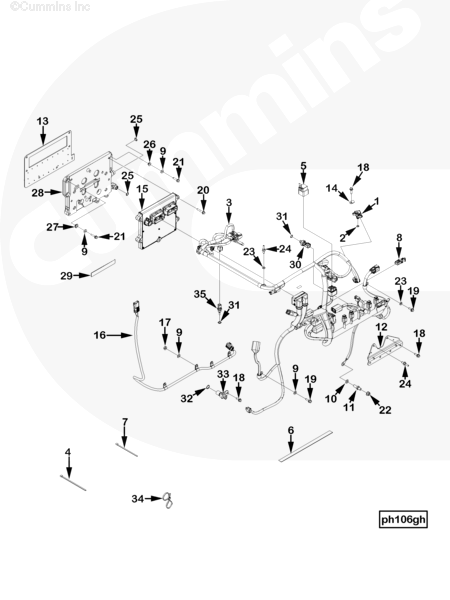

Ref No Part Number Part Description Required Remarks

PH1802-14 Engine Control Module

1 2872784 Pressure Temperature Sensor 1 Intake Manifold.
2 4903482 O-Ring Seal 1

2891973 Electronic Control Module Wiring  Harness 1
3 2891972 Electronic Control Module Wiring  Harness 1
4 3062329 Wire Tie Clamp 8
5 3658948 Relay 1
6 3964307 Tape 1
7 3964308 Wire Tie Clamp Retainer 1
8 4076493 Pressure Sensor 1 Ambient Air.
9 3009329 Plain Washer 10 M8.
10 3036460 Spring Washer 1
4 3062329 Wire Tie Clamp 11
11 3681386 Studded Hexagon Cap Screw 1
12 3682576 Customer Accessory Bracket 1
13 3682577 Electronic Control Module Gasket 1
14 3684241 Retaining Brace 1

3684276 Electronic Control Module 1
15 3684275 Electronic Control Module 1

3684277 Non-Volatile Memory Data 1

4963806 Bootloader Data 1
16 3684513 Wiring Harness 1

3900589 Hexagon Flange Nut 3 M8 X 1.25
18 3900630 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 20
19 3900631 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 25.
20 3900678 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 40.
21 3902114 Hexagon Flange Head Cap Screw 6 M8 X 1.25 X 30.
22 3902662 Hexagon Flange Nut 1 M10 x 1.50
23 3910266 Spring Washer 3
24 3921816 Studded Flange Cap Screw 3 M8 X 1.25 X 45.

4076861 Electronic Control Cooler 1
25 3627695 O-Ring Seal 2
26 4062346 Insulating Washer 5
27 4062357 Ground Washer 1
28 4076946 Electronic Control Cooler 1
29 4083185 Dataplate 1
30 4921517 Pressure Sensor 1 Oil.
31 4010519 O-Ring Seal 1

4921599 Position Sensor 2 Cam or crank.
32 4010600 O-Ring Seal 1
33 4921600 Position Sensor 1 Serviced As 4921599.
34 4952223 Wire Tie Clamp 2 Not shown on art.
35 4954905 Temperature Sensor 2 Coolant Or Fuel Or Oil.
31 4010519 O-Ring Seal 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 1cm*1cm*1cm
Weight 1KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
