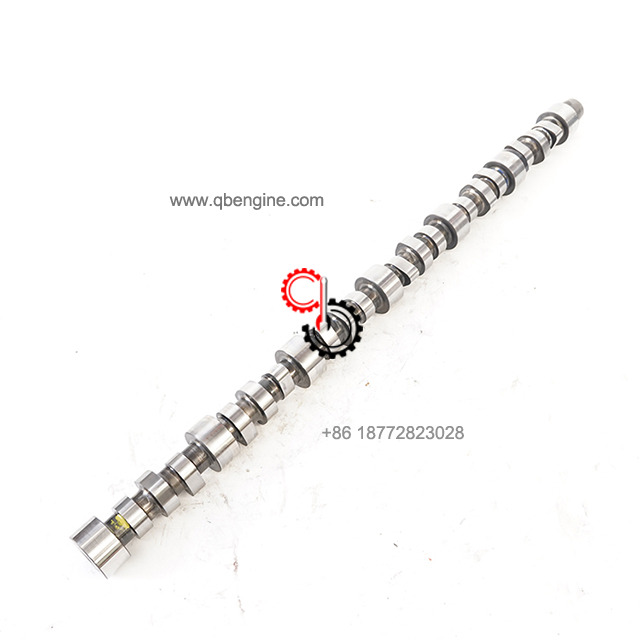

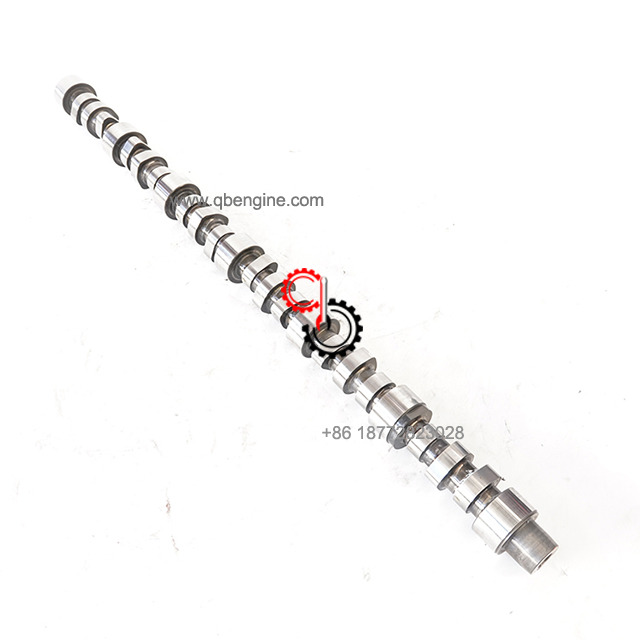

Cummins ISX X15 Camshaft 3688242

  • ISX X15

  • Cummins

  • 3688242

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX X15 Camshaft 3688242 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

3688242

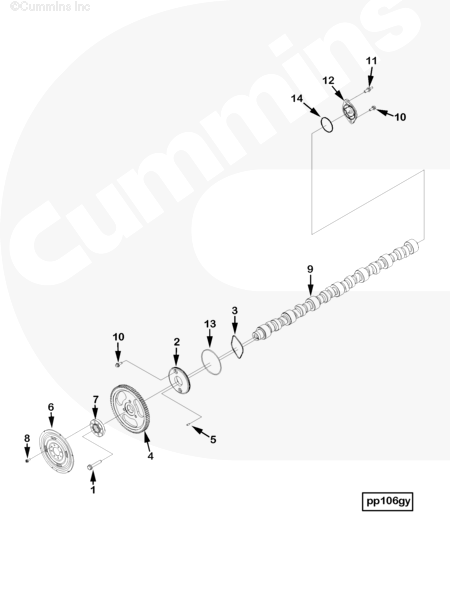

Ref No Part Number Part Description Required Remarks

PP10401 Camshaft
Camshaft
1 3678882 Hexagon Flange Head Cap Screw 1
2 3679930 Camshaft Thrust Support 1
3 3679932 Camshaft Cover Gasket 1
4 3680522 Camshaft Gear 1

3694957 Plate, Position Sensor 1
5 3681054 Pin Dowel 1
6 3685749 Position Sensor Plate 1
7 3686306 Position Sensor Adapter 1
8 3694956 Screw, Tamper Proof 8
9 3688242 Camshaft 1
10 3902460 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 25.
11 3944152 Studded Flange Cap Screw 1
12 4026587 Camshaft Cover 1
13 4299125 O-Ring Seal 1
14 4985660 Camshaft Cover Seal 1


SHIPMENT CHARACTERISTIC

Length * Width * Height

 125cm*15cm*15cm
Weight 37KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
