Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819

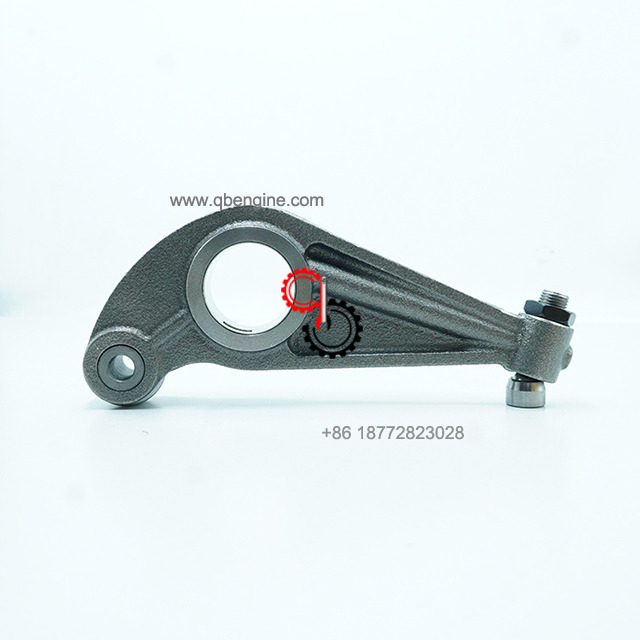

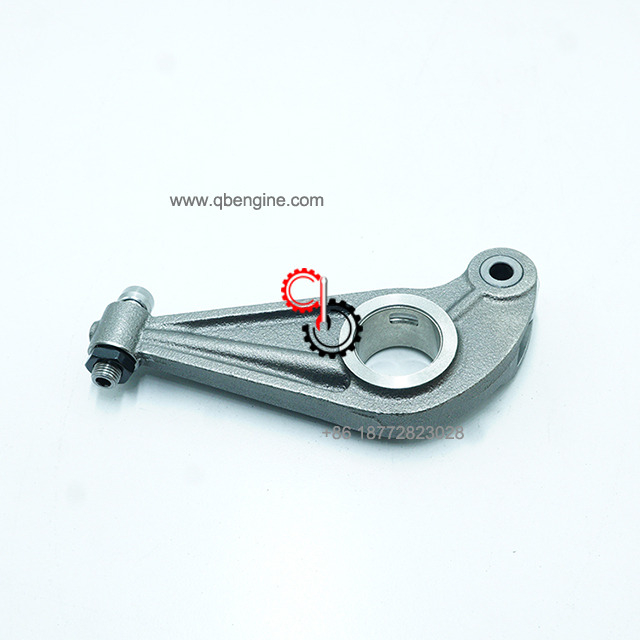

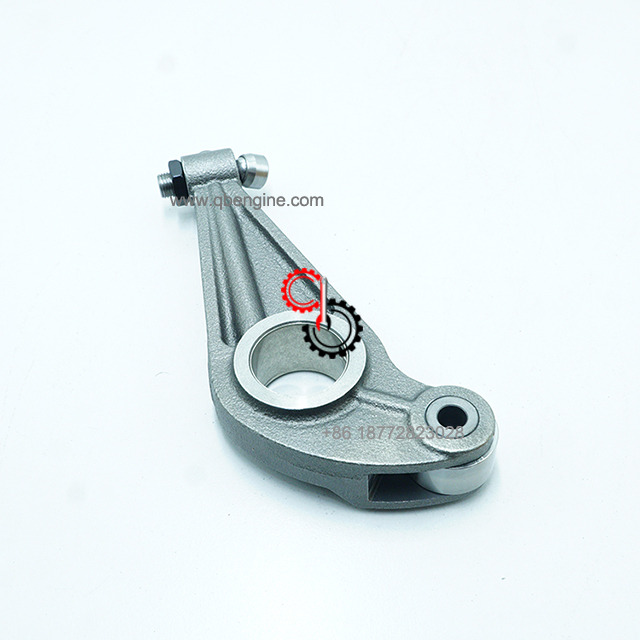

Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819
Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819 Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819
Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819 Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819
Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819 Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819

loading

Cummins ISX QSX X15 Engine Components Rocker Lever 5484231 4318207 4298642 4972819

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins ISX QSX X15 Rocker Lever 5484231 4318207 4298642 4972819

  • ISX QSX X15

  • Cummins

  • 5484231 4318207 4298642 4972819

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX X15 Rocker Lever 5484231 4318207 4298642 4972819 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B

4318207

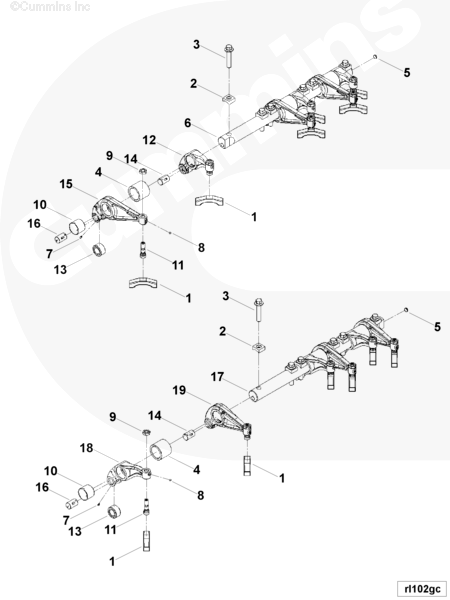

Ref No Part Number Part Description Required Remarks

RL1750-03

Rocker Lever
1 4059342 Valve Crosshead 12
2 3679427 Retaining Clamp 12
3 3681221 Hexagon Flange Head Cap Screw 12

4059416 Rocker Lever 1
4 3679561 Thrust Ring Spacer 3

4059283 Rocker Lever Shaft 1
5 3105973 Drive Plug 2
6 4059284 Rocker Lever Shaft 1

4318204 Rocker Lever 3
7 3679504 Spiral Pin 1

4298635 Rocker Lever 1
8 3067941 Ball Plug 1
9 3679694 Regular Hexagon Jam Nut 1
10 4059282 Bushing 1
11 4059377 Rocker Lever Adjusting Screw 1
12 4298631 Rocker Lever 1
13 4319026 Cam Follower Roller 1
14 4319029 Cam Follower Roller Pin 1

4318206 Rocker Lever 3
15 4298633 Rocker Lever 1
16 4319030 Cam Follower Roller Pin 1

4059417 Rocker Lever 1

4059288 Rocker Lever Shaft 1
17 4059289 Rocker Lever Shaft 1

4318205 Rocker Lever 3

4298636 Rocker Lever 1
18 4298632 Rocker Lever 1

4318207 Rocker Lever 3
19 4298634 Rocker Lever 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 10.5cm*10.5cm*21cm
Weight 1.06KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
