Cummins ISX QSX Intake Valve Kit 5693781 3685996

  • ISX QSX

  • Cummins

  • 5693781 3685996

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX Intake Valve Kit 5693781 3685996 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

3685996

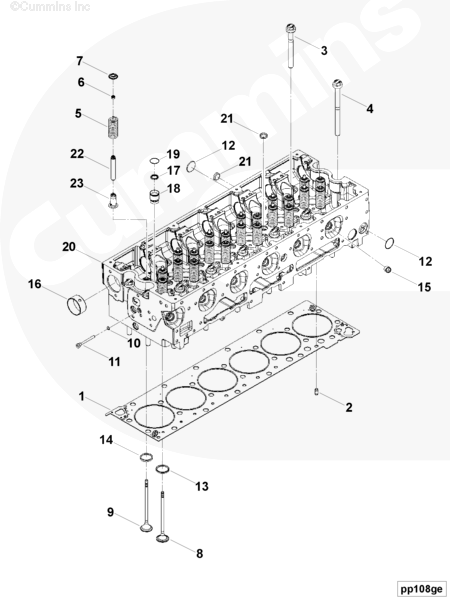

Ref No Part Number Part Description Required Remarks

PP10358-01 Cylinder Head
Cylinder Head
1 3689567 Cylinder Head Gasket 1
2 3901846 Pin Dowel 2
3 3678506 Fracture Resistant Screw 22
4 3678804 Fracture Resistant Screw 4

3688800 Cylinder Head 1
5 3679551 Valve Spring 24
6 3680883 Valve Collet 48
7 3680884 Valve Spring Retainer 24
8 3685996 Intake Valve 12
9 3686661 Exhaust Valve 12

4920470 Threaded Plug 1
10 3678603 O-Ring Seal 1
11 4920469 Threaded Plug 1

3688759 Cylinder Head 1
12 3015865 Expansion Plug 6
13 3104445 Valve Insert 12 Standard.
14 3679659 Valve Insert 12 Standard.
15 3685383 Fuel Supply Connector Guide 6
16 3685690 Bushing 7
17 3686883 Retaining Ring 6
18 3686961 Injector Sleeve 6
19 4386754 Rectangular Ring Seal 6
20 3688755 Cylinder Head 1
21 3813247 Expansion Plug 21
22 4026657 Valve Stem Guide 24
23 4356366 Valve Stem Seal 24

2882041 Cylinder Head Rebuild Kit A/R


SHIPMENT CHARACTERISTICS
Length * Width * Height 33cm*20cm*17cm
Weight 1.45KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
