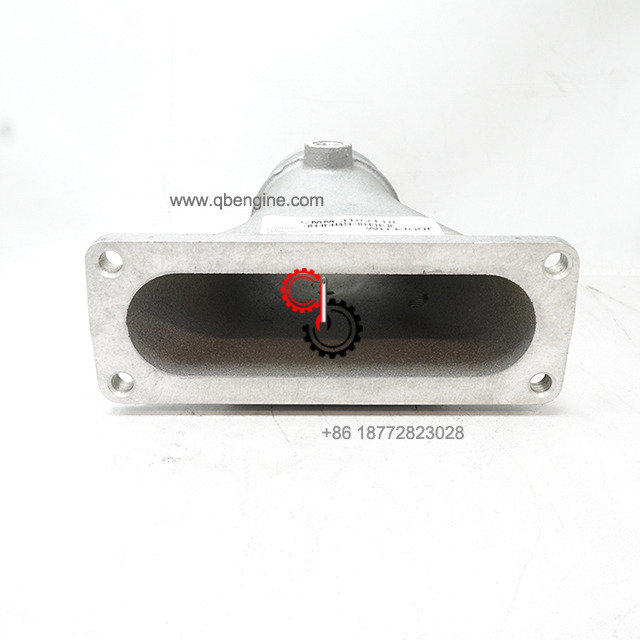

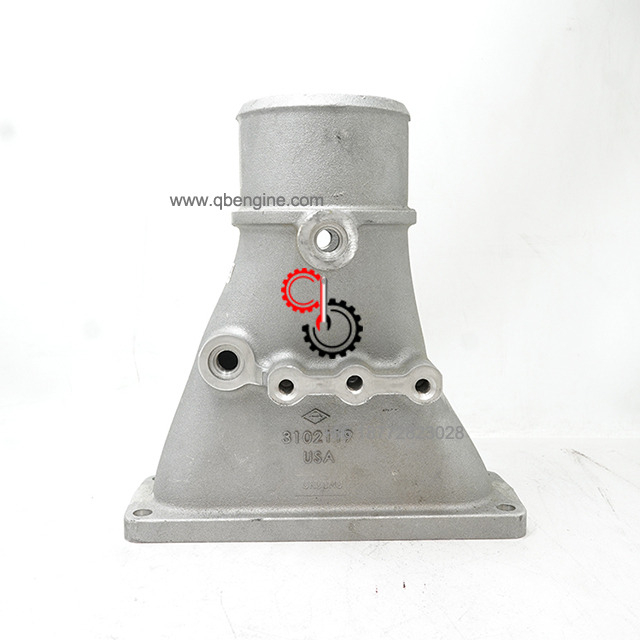

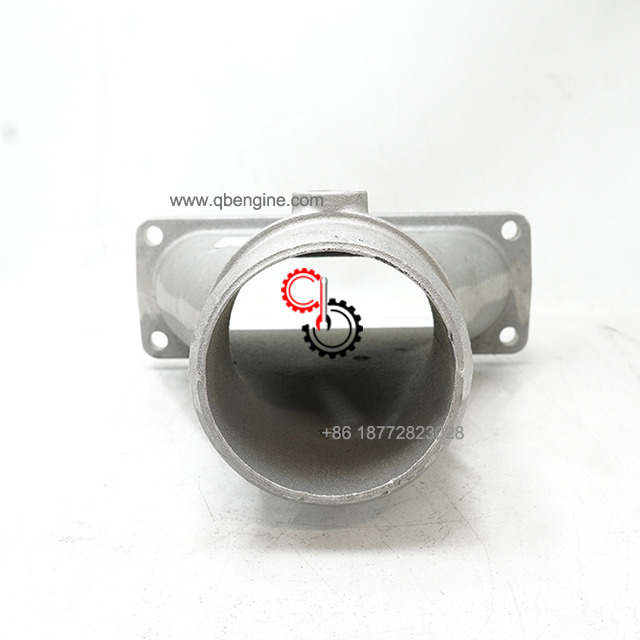

Cummins ISX QSX Air Intake Connection 3103119 3102118

  • QSK ISX

  • Cummins

  • 3103119 3102118

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export


Cummins ISX QSX Air Intake Connection 3103119 3102118

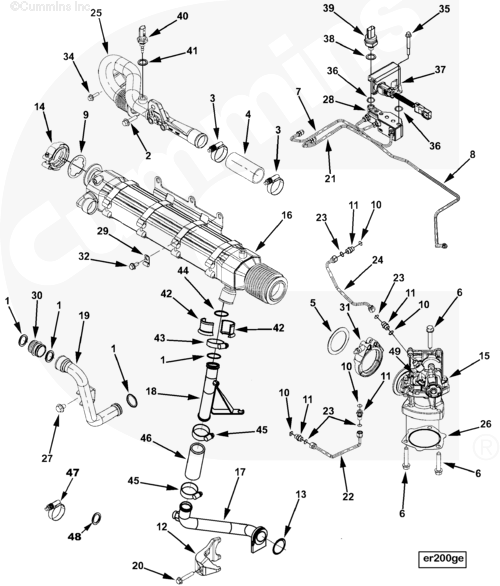

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876   E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11   CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3103119

Cart Ref No Part Number Part Description Required Remarks


ER2709-05 Exhaust Recirculation

1 3049221 O-Ring Seal 2

2 3089016 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 35.
3 3101088 Spring Hose Clamp 2

4 3101632 Plain Hose 1

5 3101917 Exhaust Gas Recirculation Valve  Gasket 1

6 3102043 Hexagon Flange Head Cap Screw 3 M10 x 1.50 x 55
7 3102383 Pressure Sensing Tube 1

8 3102386 Pressure Sensing Tube 1

9 3102392 Exhaust Gas Recirculation Valve  Gasket 1


3102561 Male Union 2

10 3036666 O-Ring Seal 1

11 3102562 Male Union 1

12 3102643 Retaining Clamp 1

13 3102645 O-Ring Seal 1

14 3102650 V Band Clamp 1

15 3104875 Exhaust Gas Recirculation Valve 1 Serviced As 4955421.
49 3103823 Position Sensor 1 EGR Valve
16 3102803 Exhaust Gas Recirculation Cooler 1 4089380 Kit
17 3103230 Water Transfer Tube 1

18 3103231 Water Inlet Tube 1

19 3102846 Water Outlet Tube 1

20 3102873 Captive Washer Cap Screw 1

21 3102890 Pressure Sensing Tube 1

22 3102895 Water Inlet Tube 1

23 3682826 Grommet Seal 2

24 3102939 Water Outlet Tube 1

23 3682826 Grommet Seal 2

25 3102967 Air Transfer Connection 1

26 3103077 Exhaust Gas Recirculation Valve  Gasket 1

27 3103099 Captive Washer Cap Screw 1

28 3103119 Sensor Adapter 1

29 3103122 Clip 1


3683068 Plain Pipe Coupling 1

1 3049221 O-Ring Seal 2

30 3683067 Plain Pipe Coupling 1

31 3683144 V Band Clamp 1

32 3821783 Captive Washer Cap Screw 5 M8 x 1.25 x 20
34 3900630 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 20
35 3901446 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 60.

4076949 Pressure Sensor 1 Egr differential.
36 4076823 Rectangular Ring Seal 2

37 4076950 Pressure Sensor 1


4087989 Pressure Sensor 1 exhaust gas.
38 4010519 O-Ring Seal 1

39 4087990 Pressure Sensor



4088712 Temperature Sensor 1 Exhaust Gas
40 4088389 Temperature Sensor 1

41 4088528 Sealing Washer 1

42 3103228 Tube Retainer 2

43 3895734 Hose Clamp 1

44 3033915 O-Ring Seal


45 3026806 Hose Clamp 2 1 3/8 - 1 3/4 in.
46 3103250 Plain Hose 1

47 3026806 Hose Clamp 1 1 3/8 - 1 3/4 in.
48 3033915 O-Ring Seal



4955421 Engineering Valve Kit
Recon Equivalent 4955421 NX

3103823 Position Sensor 1 EGR Valve

3104230 Exhaust Gas Recirculation Valve  Gasket 1 EGR Cooler Outlet

3104875 Exhaust Gas Recirculation Valve 1 Serviced As 4955421.

3103823 Position Sensor 1 EGR Valve

3684014 Socket Head Cap Screw 2


3684014 Socket Head Cap Screw 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 33cm*29cm*17cm
Weight 2.42kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
