Cummins ISG QSG X12 X13 Engine Oil Pan 3697512 3697281 6307550

  • ISX QSX X11 X12 X13

  • Cummins

  • 3697512 3697281 6307550

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISG QSG X12 X13 Engine Oil Pan 3697512 3697281 6307550 In Stock

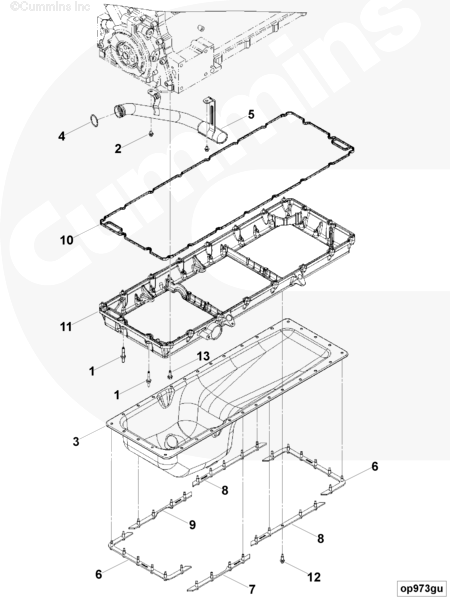

Electronic Parts Catalog - Option Detail
Cummins Engines

3697281

Ref No Part Number Part Description Required Remarks

OP2193 Oil Pan
Oil Pan
1 3697606 Studded Flange Cap Screw 2

3698395 Oil Pan 1
2 3093956 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 12.
3 3697281 Oil Pan 1

3697283 Oil Suction Connection 1
4 120554 O-Ring Seal 1
5 3697284 Lubricating Oil Suction Tube 1
6 3697288 Clamping Plate 2
7 3697289 Clamping Plate 1
8 3697290 Clamping Plate 2
9 3697689 Clamping Plate 1

3698394 Oil Pan Adapter 1
10      3695880 Oil Pan Seal 1
11 3698393 Oil Pan Adapter 1
12 3698430 Hexagon Flange Head Cap Screw 32
13 3697619 Hexagon Flange Head Cap Screw 18


SHIPMENT CHARACTERISTICS
Length * Width * Height 105cm*42cm*42cm
Weight 21KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
