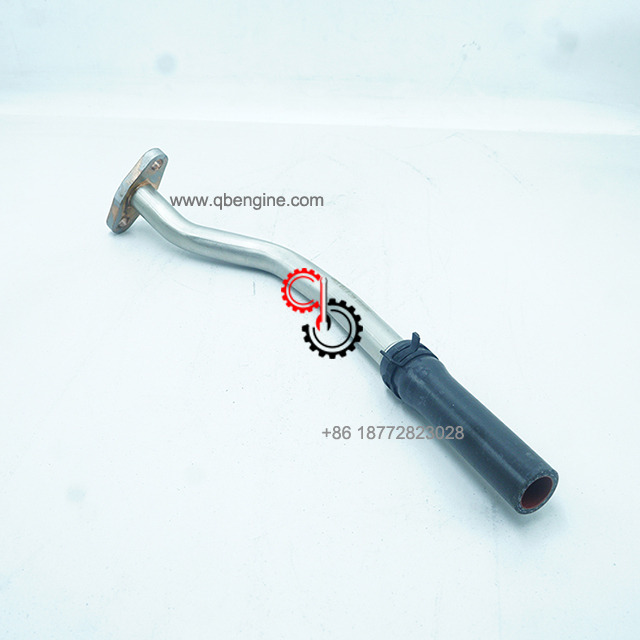

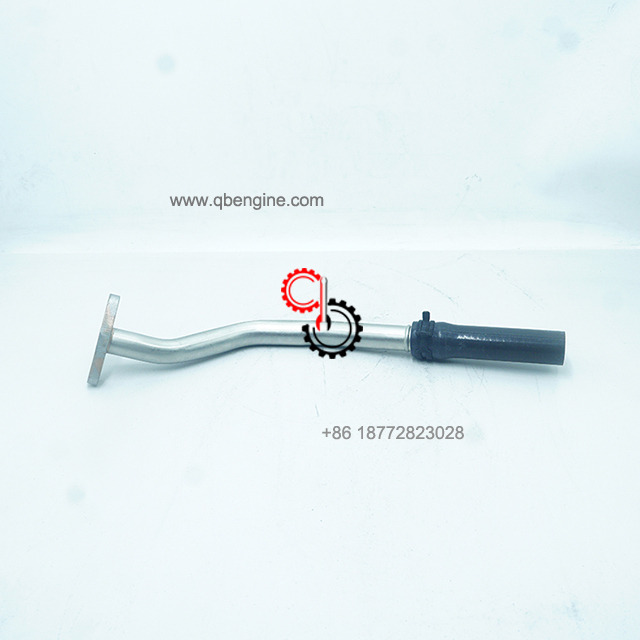

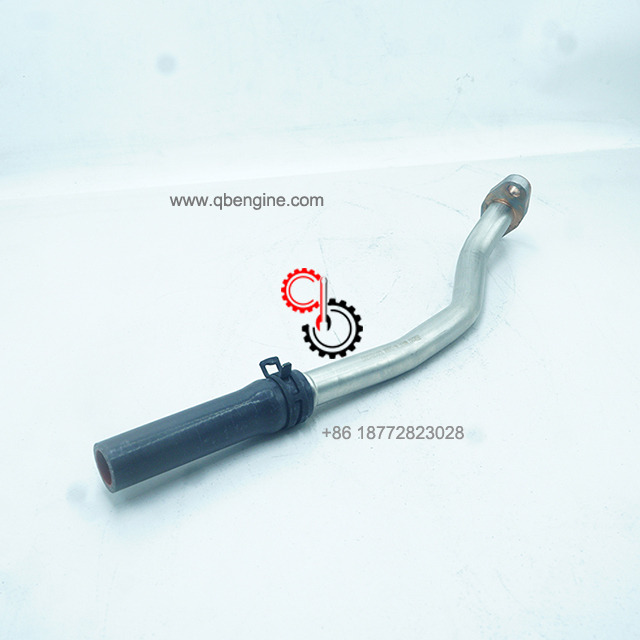

Cummins ISG QSG X11 X12 X13 Turbocharger Oil Drain Connection 3698247 5614427

  • ISG QSG X11 X12 X13

  • Cummins

  • 3698247 5614427

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISG QSG X11 X12 X13 Turbocharger Oil Drain Connection 3698247 5614427 In Stock

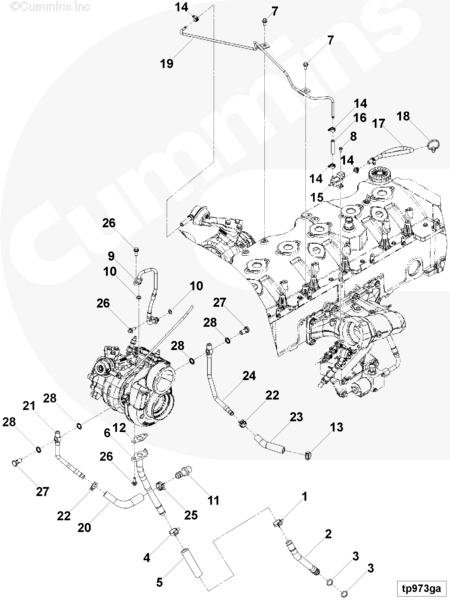

Electronic   Parts Catalog - Option Detail
Cummins   Engines


3698247

Ref No Part Number Part Description Required Remarks

TP2919 Turbocharger Plumbing
Turbocharger Plumbing
1 3697607 Spring Hose Clamp 1

3697675 Turbocharger Oil Drain Tube 1
2 3697674 Turbocharger Oil Drain Tube 1
3 3928624 O-Ring Seal 2

3698247 Turbocharger Oil Drain Connection 1
4 2878372 Spring Hose Clamp 1
5 3698244 Plain Hose 1
6 3698246 Turbocharger Oil Drain Connection 1
7 3900629 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 16.
8 3925381 Hexagon Flange Head Cap Screw 2 M5 X 0.80 X 12.
9 4365088 Turbocharger Oil Supply Tube 1
10 4989613 O-Ring Seal 2
11 4974337 Male Connector 1
12 5264569 Oil Drain Gasket 1
13 5268265 Hose Clamp 1
14 5271773 Hose Clamp 2

5371020 Air Control Valve 1
15 5314963 Air Control Valve 1

5371098 Air Fuel Control Tube 1
14 5271773 Hose Clamp 3
16 3938056 Plain Hose 1
17 3991034 Plain Hose 1
18 4371509 Wire Tie Clamp 1
19 5371021 Air Fuel Control Tube 1

5371044 Turbocharger Coolant Plumbing 1
20 5371045 Molded Hose 1
21 5371046 Elbow Hose Coupling 1
22 5371094 Spring Hose Clamp 1

5371047 Turbocharger Coolant Plumbing 1
22 5371094 Spring Hose Clamp 1
23 5371048 Molded Hose 1
24 5371049 Elbow Hose Coupling 1
25 5371096 Spring Hose Clamp 1
26 3900630 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 20.
27 3924725 Banjo Connector Screw 2
28 3963988 Sealing Washer 4

SHIPMENT CHARACTERISTICS
Length * Width * Height 55cm*10cm*7cm
Weight 0.45KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
