Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251

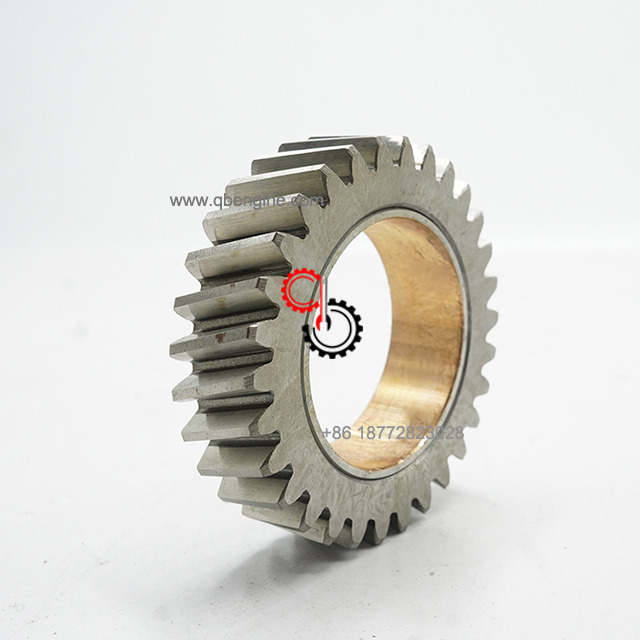

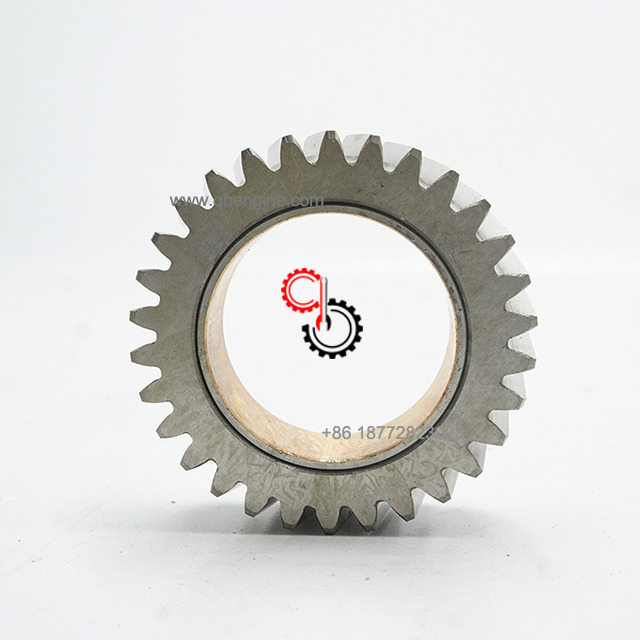

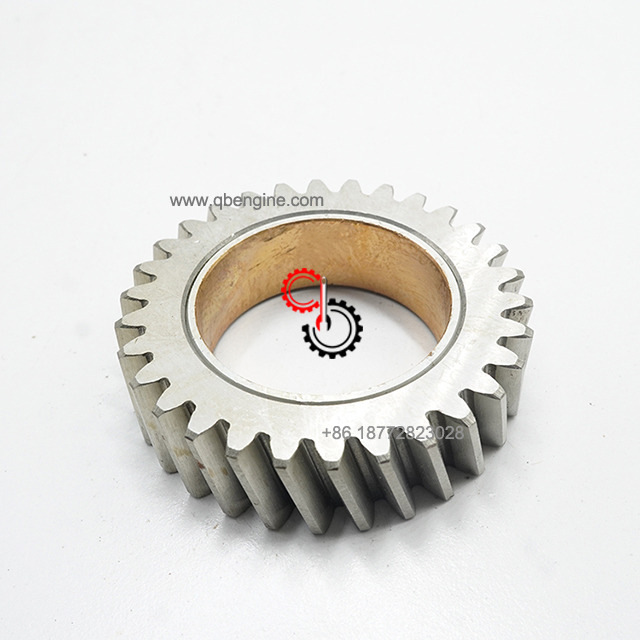

Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251
Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251 Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251
Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251 Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251
Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251 Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251

loading

Cummins ISB Engine Timing System Parts Fuel Injection Pump Gear 5342251

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins ISB Fuel Injection Pump Gear 5342251

  • ISB

  • Cummins

  • 5342251

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISB  Fuel Injection Pump Gear 5342251 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines 4B3.9, 6A3.4, 6B5.9, B GAS INTERNATIONAL CM556, B4.5, B4.5 CM2350 B129B, B4.5 CM2350 B146C, B4.5 CM2350 B147B, B4.5 RGT, B4.5S, B5.9 G, B5.9 GAS PLUS CM556, B5.9 LPG, B5.9 LPG PLUS CM556, B6.7 CM2350 B121B, B6.7 CM2350 B135B, B6.7 CM2350 B136C, B6.7 CM2350 B148B, B6.7 G CMOH6.0 B125, B6.7N CM2380 B150B, B6.7S, F3.8 CM2350 F120B, F3.8 CM2350 F128C, F3.8 CM2350 F132B, F3.8 F102, G3.9, G5.9, G5.9 CM558, ISB (CHRYSLER), ISB CM2150, ISB CM2150 E, ISB CM550, ISB CM850, ISB/ISD4.5 CM2150 B119, ISB/ISD4.5 CM2150 SN, ISB/ISD6.7 CM2150 B120, ISB/ISD6.7 CM2150 SN, ISB/ISD6.7 CM2880 B126, ISB3.9 CM2220 B107, ISB4.5 CM2150, ISB5.9G CM2180, ISB6.7 2010 DCX PICKUP, ISB6.7 2013 DCX CHASSIS CAB, ISB6.7 CM2150 SQ, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 CM2350 B103, ISB6.7 CM2350 B142, ISB6.7 CM2670 B153B, ISB6.7 G CM2180 B118, ISBE CM2150, ISBE CM800, ISBE2/ISBE3 CM850, ISBE4 CM850, ISD4.5 CM2150, ISD6.7 CM2880 D101, ISF2.8 CM2220, ISF2.8 CM2220 AN, ISF2.8 CM2220 EC, ISF2.8 CM2220 ECF2, ISF2.8 CM2220 F101, ISF2.8 CM2220 F117, ISF2.8 CM2220 F122, ISF2.8 CM2220 F126, ISF2.8 CM2220 F129, ISF2.8 CM2220 IAN, ISF3.8 CM2220, ISF3.8 CM2220 AN, ISF3.8 CM2220 F103, ISF3.8 CM2220 F110, ISF3.8 CM2220 F116, ISF3.8 CM2220 F134B, ISF3.8 CM2220 IAN, ISF3.8 CM2350 F109, ISF4.5 CM2220 F123, ISG11 CM2880 G106, ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 CM2880 G109, ISG12 G CMOH6.0 G111, QSB3.9 30 CM550, QSB3.9 CM2880 B138, QSB4.5 30 CM550, QSB4.5 CM2150 B108, QSB4.5 CM2250 B131, QSB4.5 CM2250 EC, QSB4.5 CM2350 B106, QSB4.5 CM2350 B122

5342251

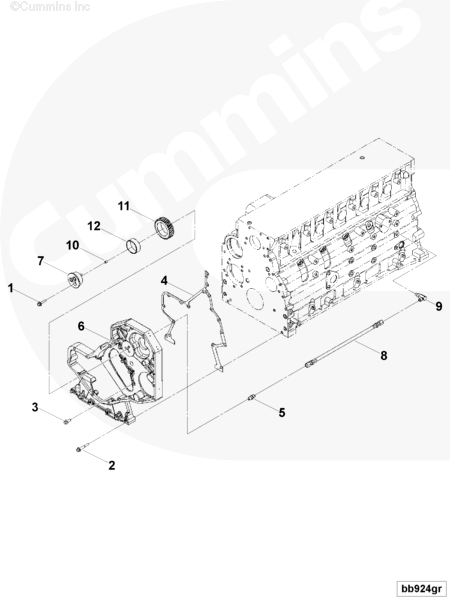

Ref No Part Number Part Description Required Remarks

BB9631-01 Front Gear Housing
Front Gear Housing
1 2830411 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 30.
2 3900633 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 50.
3 5363403 Hexagon Flange Head Cap Screw 5
4 3938156 Gear Housing Gasket 1
5 4981372 Male Connector 1
6 5340107 Gear Housing 1
7 5340111 Idler Shaft 1
8 5340115 Flexible Hose 1
9 5340116 Male Adapter Elbow 1
10 5340490 Ring Dowel 1

5342251 Idler Gear 1
11 5340109 Idler Gear 1
12 5342250 Bushing 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 9cm*2cm*9cm
Weight 0.434KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
