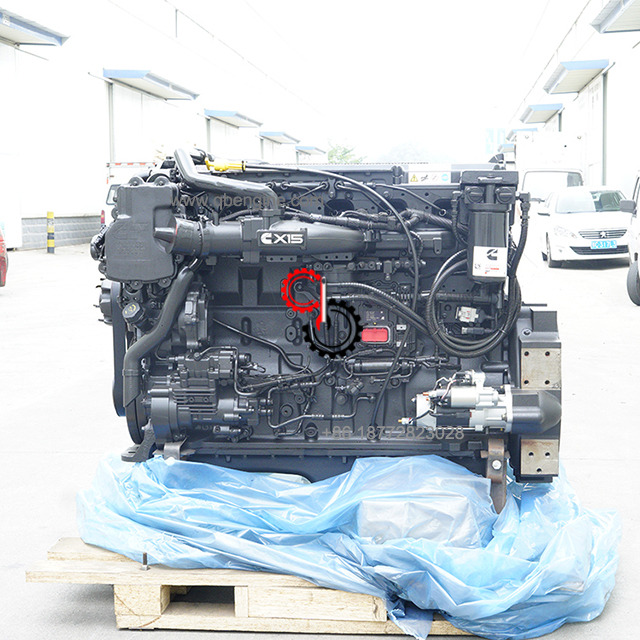

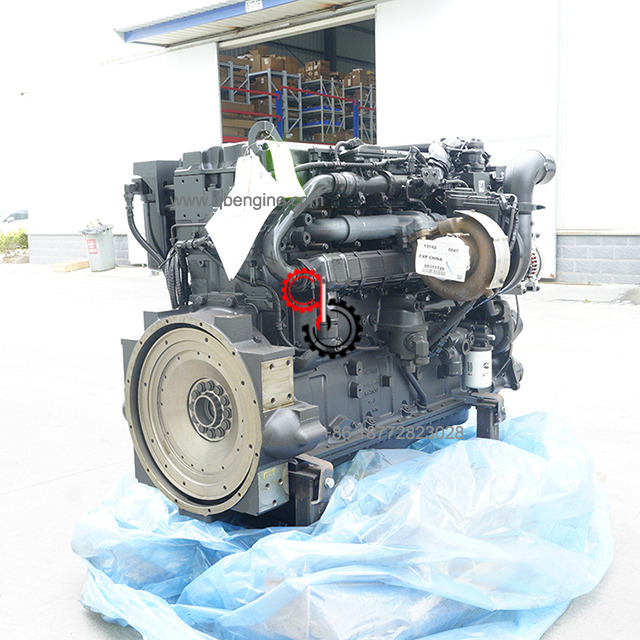

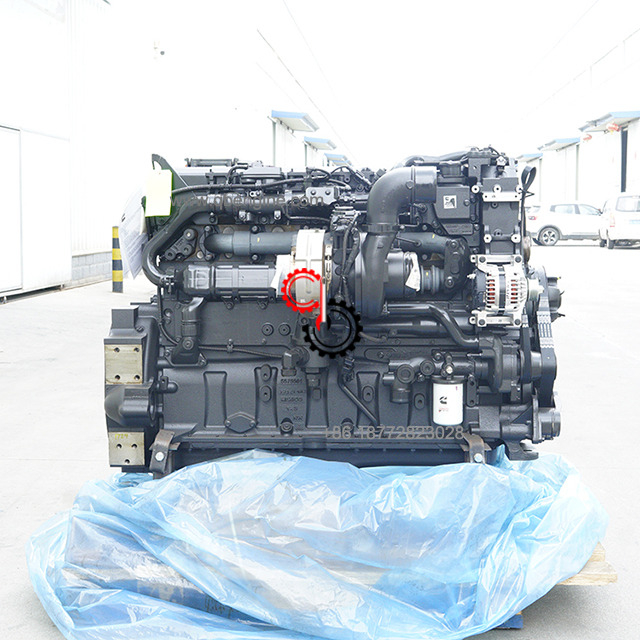

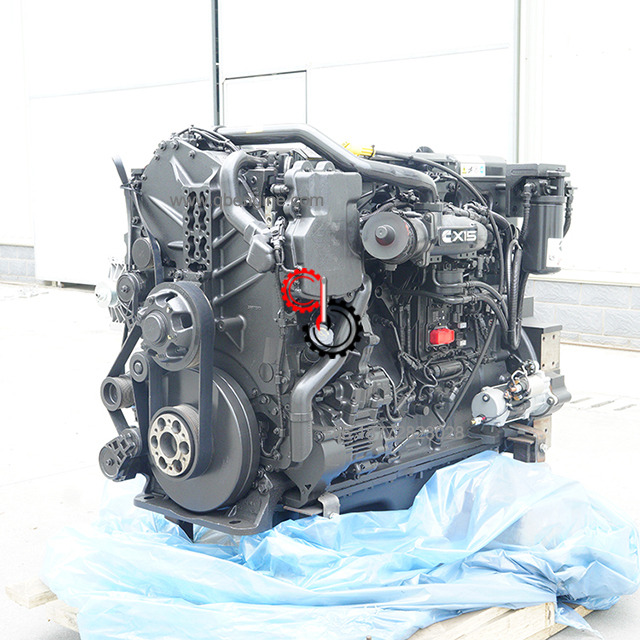

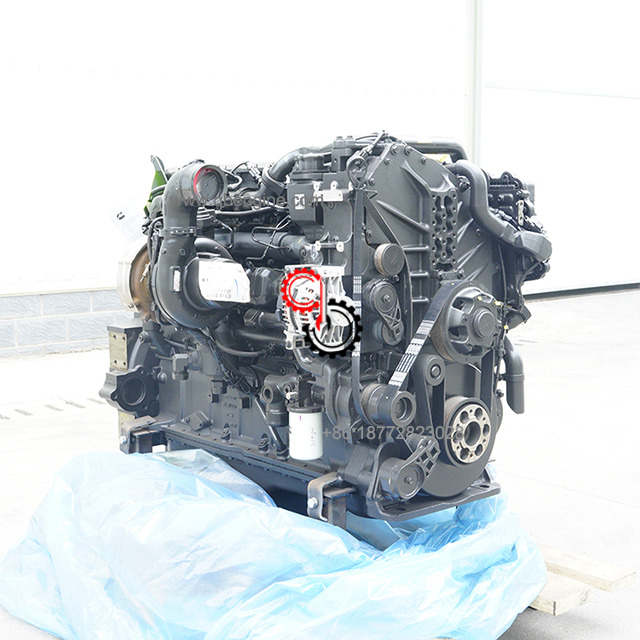

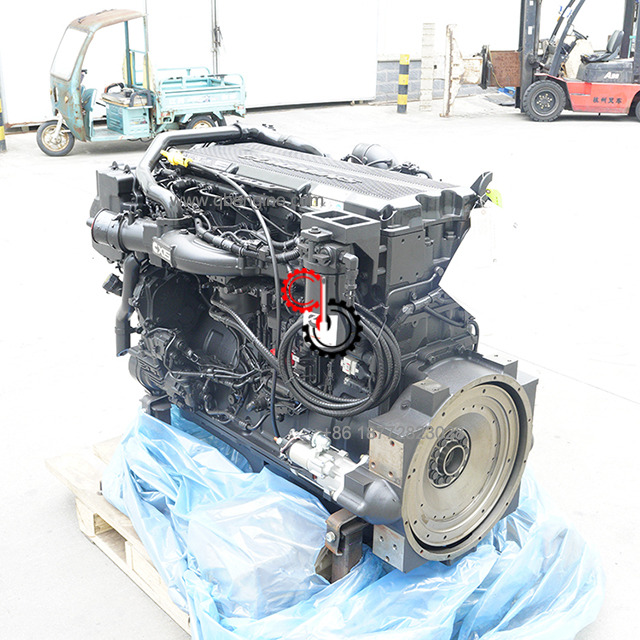

Cummins QSX15-C550 CPL5429 Engine Overview
No | Item | Data |
1 | Engine Model | QSX15-C550 CPL5429 |
2 | Displacement | 15L |
3 | Cylinder | 6 cylinders |
4 | Valve | 24valves |
5 | Start | Electric Start |
6 | Type | inline 6 cylinders, water-cooled, 4 strokes |
7 | Rated Power | 550 Bhp @ 2100 Rpm |
8 | torque Peak | 1950 Lb Ft @ 1400 Rpm |
CONFIGURATIONS AND MODEL NAMES |
EPA Model Name | X15 |
Marketing Engine Configuration # | D103015CC20 |
Marketing Model Name | X15 |
Service Model Name | X15 CM2350 X130C |
Technical Engine Configuration # | D103015CX03 |
ENGINE BUILD DETAILS |
Build Date | 2021-10-08T00:00:00Z |
Build Plant | JEP - JAMESTOWN |
CPL # | 5429 |
Shop Order | SO19142 |
Warranty Start Date | Not Available |
TECHNICAL SPECIFICATION DETAILS |
ECM Code | LG10047 |
Fuel Pump Part # | Not Available |
Fuel Pump Calibration | PW02 |
QSX15 (Tier 4 Final/Stage IV)
Better Performance. Where You Need it Most.
Whether you are manufacturing a large excavator, wheel loader, grader, rock drill or compressor, the QSX15 is engineered to deliver the economical, reliable power and performance that you expect from a Cummins engine. In fact, the QSX15 for Tier 4 Final offers ratings that are capable of achieving over a 50 percent increase in torque while at the same time getting better fuel economy.
Every major component and system is designed by Cummins for total quality control, building on a proven engine with fully integrated electronics. Increased control over oxides of nitrogen (NOx) with the addition of Selective Catalytic Reduction (SCR) has enabled modifications to increase combustion efficiency. This results in higher fuel efficiency and better transient response. SCR combined with the Cummins Diesel Particulate Filter (DPF) ensures an additional margin of Particulate Matter (PM) reduction, optimizing performance, which gives the QSX15 one of the highest power densities of any engine in its class. Strong performance and durability, exceptional dependability and superior fuel economy give you every reason to choose the QSX15 for your heavy-duty equipment.
Additional ratings may be available. Check with Qingbang Online Service.
