Cummins Heat Exchanger Assembly 5289417

  • original

  • Cummins

  • 5289417

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Heat Exchanger Assembly 5289417 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines 4B3.9, 6A3.4, 6B5.9, B GAS INTERNATIONAL CM556, B4.5, B4.5 CM2350 B129B, B4.5 CM2350 B146C, B4.5 CM2350 B147B, B4.5 RGT, B4.5S, B5.9 G, B5.9 GAS PLUS CM556, B5.9 LPG, B5.9 LPG PLUS CM556, B6.7 CM2350 B121B, B6.7 CM2350 B135B, B6.7 CM2350 B136C, B6.7 CM2350 B148B, B6.7 G CMOH6.0 B125, B6.7N CM2380 B150B, B6.7S, F3.8 CM2350 F120B, F3.8 CM2350 F128C, F3.8 CM2350 F132B, F3.8 F102, G3.9, G5.9, G5.9 CM558, ISB (CHRYSLER), ISB CM2150, ISB CM2150 E, ISB CM550, ISB CM850, ISB/ISD4.5 CM2150 B119, ISB/ISD4.5 CM2150 SN, ISB/ISD6.7 CM2150 B120, ISB/ISD6.7 CM2150 SN, ISB/ISD6.7 CM2880 B126, ISB3.9 CM2220 B107, ISB4.5 CM2150, ISB5.9G CM2180, ISB6.7 2010 DCX PICKUP, ISB6.7 2013 DCX CHASSIS CAB, ISB6.7 CM2150 SQ, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 CM2350 B103, ISB6.7 CM2350 B142, ISB6.7 CM2670 B153B, ISB6.7 G CM2180 B118, ISBE CM2150, ISBE CM800, ISBE2/ISBE3 CM850, ISBE4 CM850, ISD4.5 CM2150, ISD6.7 CM2880 D101, ISF2.8 CM2220, ISF2.8 CM2220 AN, ISF2.8 CM2220 EC, ISF2.8 CM2220 ECF2, ISF2.8 CM2220 F101, ISF2.8 CM2220 F117, ISF2.8 CM2220 F122, ISF2.8 CM2220 F126, ISF2.8 CM2220 F129, ISF2.8 CM2220 IAN, ISF3.8 CM2220, ISF3.8 CM2220 AN, ISF3.8 CM2220 F103, ISF3.8 CM2220 F110, ISF3.8 CM2220 F116, ISF3.8 CM2220 F134B, ISF3.8 CM2220 IAN, ISF3.8 CM2350 F109, ISF4.5 CM2220 F123, ISG11 CM2880 G106, ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 CM2880 G109, ISG12 G CMOH6.0 G111, QSB3.9 30 CM550, QSB3.9 CM2880 B138, QSB4.5 30 CM550, QSB4.5 CM2150 B108, QSB4.5 CM2250 B131, QSB4.5 CM2250 EC, QSB4.5 CM2350 B106, QSB4.5 CM2350 B122

5289417

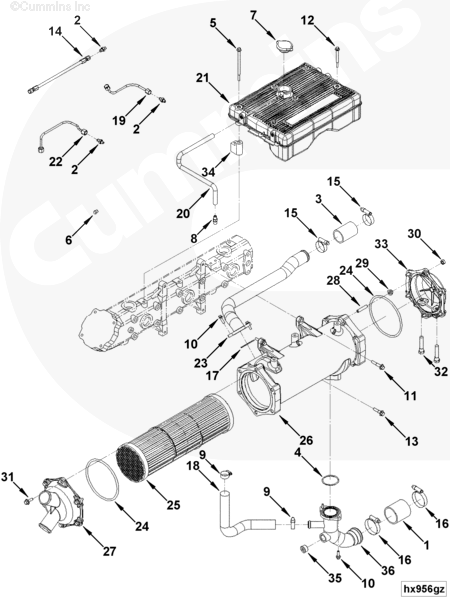

Ref No Part Number Part Description Required Remarks

HX9146 Heat Exchanger
Heat Exchanger
1 63549 A Plain Hose 1
2 68138 Male Connector 3
3 70458 A Plain Hose 1
4 145582 O-Ring Seal 1
5 2874751 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 140.
6 3064947 Pipe Plug 1 1/8 NPT
7 5304925 Filler Cap 1
8 3627856 Male Connector 1
9 3819725 Hose Clamp 2 9/16 - 1 3/8 Inch
10 3900631 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 25.
11 3900634 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 50.
12 3902112 Hexagon Flange Head Cap Screw 3 M8 x 1.25 x 80
13 3903464 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 40.
14 3918496 Flexible Hose 1
15 3922846 Hose Clamp 2
16 3922849 Hose Clamp 2
17 4978288 O-Ring Seal 1
18 5270525 Molded Hose 1
19 5270528 Vent Tube 1
20 5273199 Molded Hose 1
21 5305921 Expansion Tank 1 Refer To TSB150131.
22 5287845 Vent Tube 1
23 5289413 Water Inlet Tube 1

5289417 Heat Exchanger 1
24 5261992 O-Ring Seal 2

5289418 Heat Exchanger Housing 1 Purchase 5289417
25 5273349 Heat Exchanger Core 1 Purchase 5289417
26 5289419 Heat Exchanger Housing 1 Purchase 5289417
27 5290397 Heat Exchanger Cover 1
28 5290398 Continuous Thread Stud 1
29 5290399 Hexagon Flange Nut 1
30 5290400 Regular Hexagon Nut 1
31 5290401 Hexagon Flange Head Cap Screw 11 M10 X 1.50 X 25
32 5290511 Zinc Electrode Plug 2
33 5291826 Heat Exchanger Cover 1
34 5294302 Mounting Spacer 1

5297217 Water Inlet Tube 1 Purchase Lower Level Parts
35 4933532 Pipe Plug 1 3/4 NPT
36 5288008 Water Inlet Tube 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 26cm*36cm*97cm
Weight 30kg
