Cummins B-Series engines include a direct fuel injection for a cleaner, quieter, more fuel-efficient performance and offer outstanding value in terms of installation, simplicity and servicing.

  • 6BT5.9-G2

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 1 years

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

Cummins 6BT5.9-G2 Engine Overivew

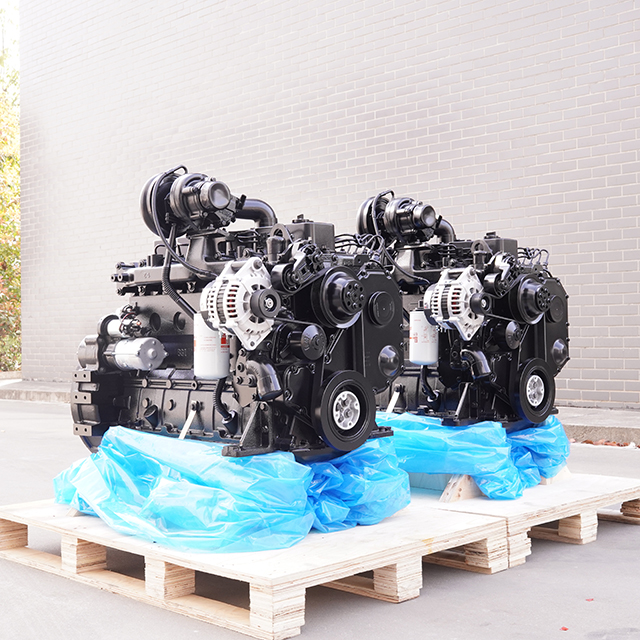

6bt5.9-g2 (5)

Parameter Value
Engine Model Cummins 6BT5.9 - G2
Type 6 - cylinder in -  line
Displacement 5.9 L
Bore &  Stroke 102×120 mm
Dry Weight 411 KG
Dimensions  (L×W×H) 867×544×998mm
Center of  Gravity of Front Face of Block 544 mm
Center of  Gravity Above Central Line of Crankshaft 155 mm


Parameter Value
Nominal Output / Speed (1500rpm) 86KW / 115 HP
Standby Output / Speed (1500rpm) 92KW / 123 HP
Nominal Output / Speed (1800rpm) 100KW / 133 HP
Standby Output / Speed (1800rpm) 110KW / 147 HP
Fuel Consumption / Nominal Output  (1500RPM) 214 g/kW·h
Fuel Consumption / Standby Output  (1500RPM) 221 g/kW·h
Fuel Consumption / Nominal Output  (1800RPM) 235 g/kW·h
Fuel Consumption / Standby Output  (1800RPM) 235 g/kW·h


Additional ratings may be available.  Check with Qingbang Online Service.
