Crankshaft Cummins QSK19 4916790 4917120 4371598 4371597

  • 4916790 4917120 4371598 4371597

  • Cummins

Supersession Part Number:
4916790
4371598
4917120
4371597
weigt(kg):
237
Size:
38cm*41cm*147cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

Electronic   Parts Catalog - Option details
motor K19, KTA19   G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150   MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850   MCRS, QSK19G

4371597

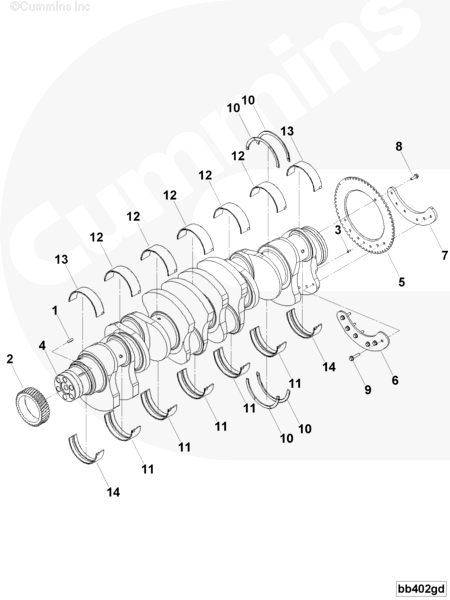

Cart Ref No Part Number Part   Description


BB4729-03 crankshaft

4371598 Engine   Crankshaft 1
1 206904 Plain   Woodruff Key 1
2 4953337 Crankshaft   Gear 1

4371597 Engine   Crankshaft 1
3 69558 Pin   Dowel 1
4 4371577 Engine   Crankshaft 1
5 4916798 Speed   Indicator Ring 1
6 4916799 Crankshaft   Counter Weight 1
7 4916800 Crankshaft   Counter Weight 1
8 4916801 Hexagon   Flange Head Cap Screw 1
9 4916802 Hexagon   Flange Head Cap Screw 4

AR12270 Main   Bearing Stud Shell 1
10 2888695 Thrust   Bearing 4
11 205140 Main   Bearing 5
12 205150 Main   Bearing 5
13 205160 Main   Bearing 2
14 205170 Main   Bearing 2

AR12271 Main   Bearing .010 Shell A/R
10 2888696 Thrust   Bearing 4
11 205141 Main   Bearing 5
12 205151 Main   Bearing 5
13 205161 Main   Bearing 2
14 205171 Main   Bearing 2

AR12272 Main   Bearing .020 Shell A/R
10 2888697 Thrust   Bearing 4
11 205142 Main   Bearing 5
12 205152 Main   Bearing 5
13 205162 Main   Bearing 2
14 205172 Main   Bearing 2

AR12273 Main   Bearing .030 Shell A/R
11 205143 Main   Bearing 5
12 205153 Main   Bearing 5
13 205163 Main   Bearing 2
14 205173 Main   Bearing 2
