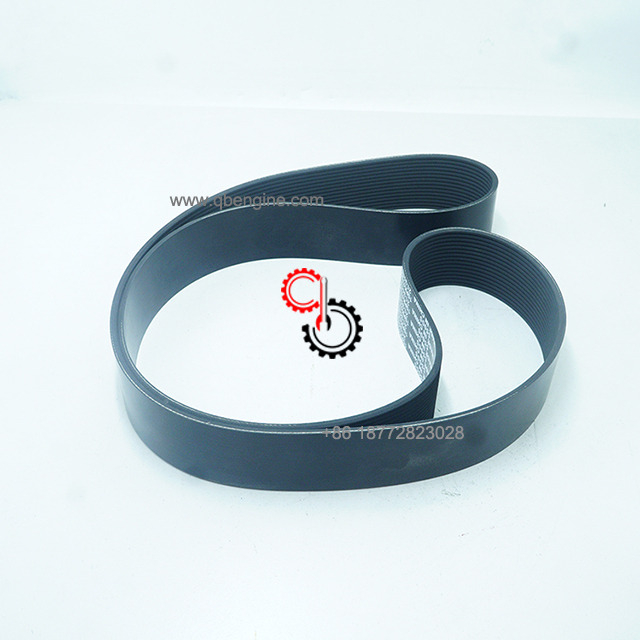

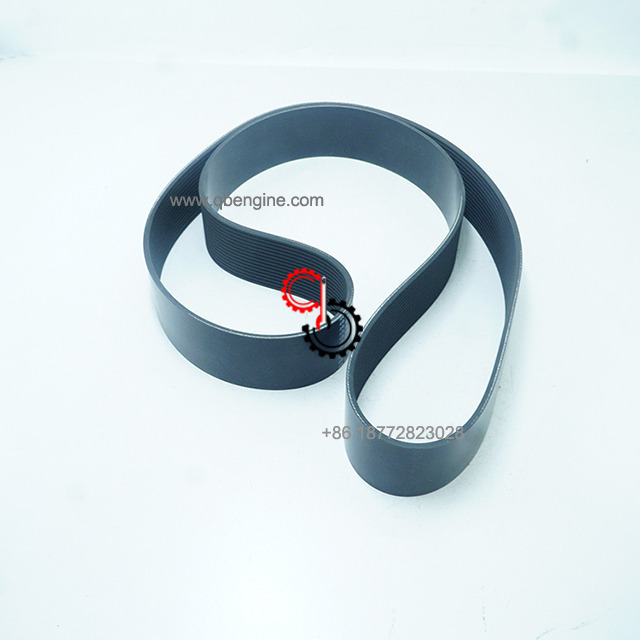

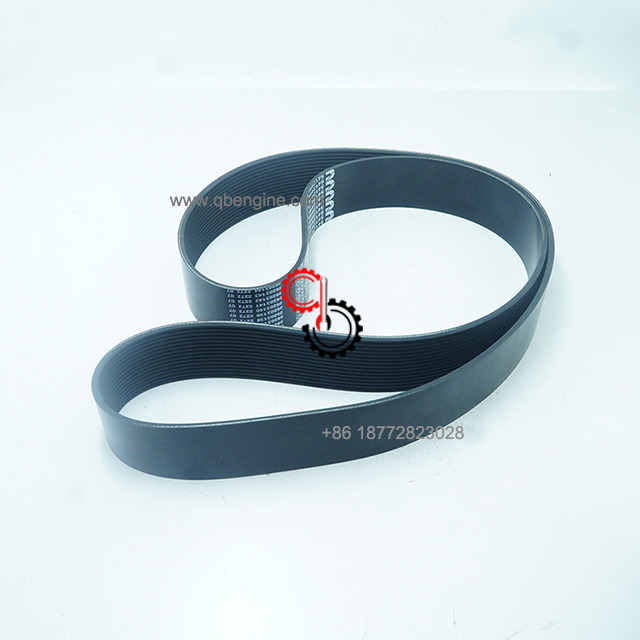

Cummins V Ribbed Fan Belt 5412996 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |
| Part Number | Part Description | Required | Remarks |
| FA4126 | Fan Drive Arrangement |
| Fan drive...(More) |
| 3002202 | V Ribbed Belt | 1 |
|
| 3002232 | Fan Hub | 1 |
|
| S 113 | Hexagon Head Cap Screw | 6 | 1/2 - 13 X 1 1/2 Inch. |
| S 911 B | Pipe Plug | 2 | 1/8 NPT. |
| 111445 | Lock Washer | 6 |
|
| 145551 | O-Ring Seal | 1 |
|
| 3001280 | Retaining Ring | 1 |
|
| 3001281 | Roller Bearing | 2 |
|
| 3002183 | Fan Hub | 1 |
|
| 3002193 | Fan Hub Cover | 1 |
|
| 3002210 | Bearing Spacer | 1 |
|
| 3002211 | Bearing Spacer | 1 |
|
| 3002220 | Fan Pulley | 1 |
|
| 3012467 | Plain Washer | 1 | 1 1/8 Inch. |
| 3036139 | Fan Spindle | 1 |
|
| 3062393 | Oil Seal | 1 |
|
| 3202206 | Lock Nut | 1 | 1 1/8 - 12 UNF. |
| 3012628 | Alternator Support | 1 |
|
| 127362 | Plain Washer | 4 | 3/8 Inch. |
| 3010596 | Captive Washer Cap Screw | 2 | 3/8 - 16 X 1 1/4 Inch. |
| S 604 | Lock Washer | 1 | 3/8 Inch. |
| 3010597 | Captive Washer Cap Screw | 2 | 3/8 - 16 X 3 3/4 Inch. |
| S 199 B | Hexagon Head Cap Screw | 1 | 3/8 - 16 3 3/4 Inch. |
| 3041859 | Alternator Support | 1 |
|
| 3200798 | Fan Mounting Hub | 1 |
|
| S 205 | Regular Hexagon Nut | 7 | 3/8 - 24 UNF. |
| S 604 | Lock Washer | 7 | 3/8 Inch. |
| 64929 | Double End Plain Stud | 2 |
|
| 102397 | Double End Plain Stud | 4 |
|
| 3201117 | Double End Plain Stud | 1 |
|
| 3201659 | Rectangular Ring Seal | 1 |
|
| 4922501 | O-Ring Seal | 1 |
|
| 4009442 | Idler Lever | 1 |
|
| S 249 | Regular Hexagon Jam Nut | 1 | 3/4 - 16 UNF. |
| S 626 | Plain Washer | 2 | 5/16 Inch. |
| S 640 | Plain Washer | 1 | 3/4 Inch. |
| 135530 | Retaining Ring | 1 |
|
| 3003354 | Roller Bearing | 1 |
|
| 3004057 | Lock Nut | 1 | 3/4 - 16 UNF. |
| 3065830 | Oil Seal | 1 |
|
| 3076301 | Wire Tie Clamp | 2 |
|
| 3086278 | Plain Washer | 1 |
|
| 3201206 | Expansion Plug | 1 |
|
| 3201228 | Idler Pulley | 1 |
|
| 3410132 | Pivot Shaft Support | 1 |
|
| 3410133 | Pivot Shaft Support | 1 |
|
| 4371702 | Bushing | 2 |
|
| 3410134 | Idler Lever | 1 |
|
| 3410136 | Dust Seal | 1 |
|
| 4009433 | Idler Shaft | 1 |
|
| 4986161 | Belt Tensioner | 1 |
|
| S 113 | Hexagon Head Cap Screw | 1 | 1/2 - 13 X 1 1/2 Inch. |
| S 178 C | Hexagon Head Cap Screw | 3 |
|
| 68050 | Plain Washer | 1 | 1/2 Inch. |
| 2888893 | Belt Tensioner | 1 |
|
| S 253 | Regular Hexagon Jam Nut | 2 | 1/2 - 20 UNF. |
| S 500 | Cotter Pin | 1 |
|
| 137936 | Hexagon Head Cap Screw | 1 | 1/2 - 20 X 9 Inch. |
| 146517 | Regular Hexagon Nut | 1 | 1/2 - 20 UNF. |
| 2888795 | Control Rod Retainer | 1 |
|
| 43463 A | O-Ring Seal | 1 |
|
| 2888794 | Control Rod Retainer | 1 |
|
| 3036900 | Plain Washer | 5 | 1/2 Inch. |
| 3076301 | Wire Tie Clamp | 2 |
|
| 3086244 | Belt Tensioner Housing | 1 |
|
| 3086251 | Spring Retainer | 1 |
|
| 3086252 | Clevis Pin | 1 |
|
| 3086269 | Compression Spring | 1 |
|
| 3090194 | Dust Seal | 1 |
|
| 3347591 | Control Rod End | 1 |
|
| 3402156 | Spring Guide | 1 |
|
| 4295620 | Wire Tie Clamp | 1 |
|
| 4967703 | Control Rod End | 1 |
|
| 3036900 | Plain Washer | 1 | 1/2 Inch. |
| 3042330 | Plain Washer | 3 | 3/8 Inch. |
| 4998227 | Belt Tensioner Bracket | 1 |
|
| S 169 A | Hexagon Head Cap Screw | 3 | 3/8 - 16 X 4 1/2 Inch. |
| 3042329 | Plain Washer | 3 | 3/8 Inch. |
| 3201128 | Regular Hexagon Nut | 3 | 3/8 - 16 UNC. |
| 4057646 | Belt Tensioner Bracket | 1 |
|
| 5412996 | Belt, V Ribbed | 1 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 20cm*12cm*20cm |
| Weight | 0.526KG |
