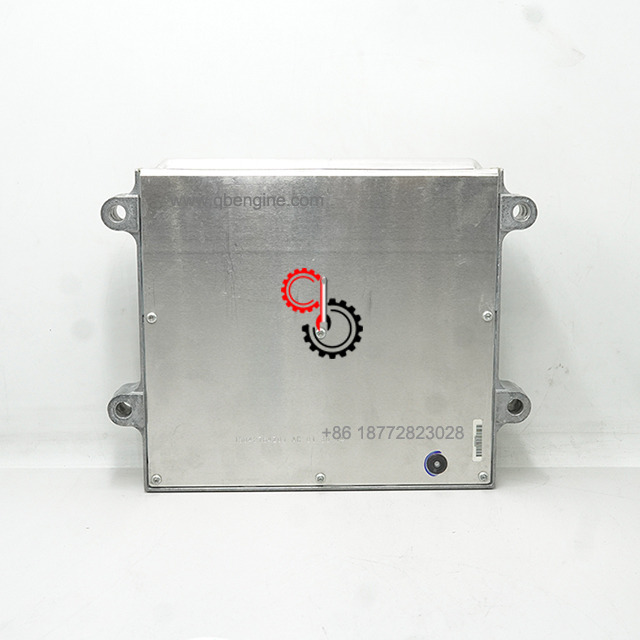

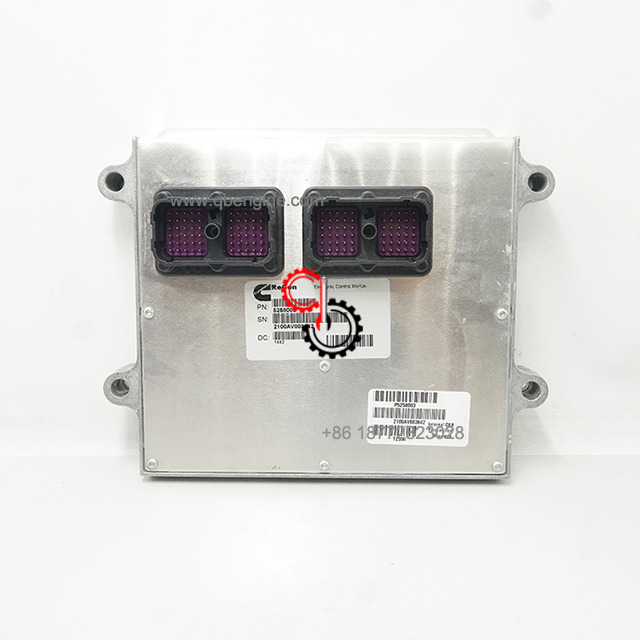

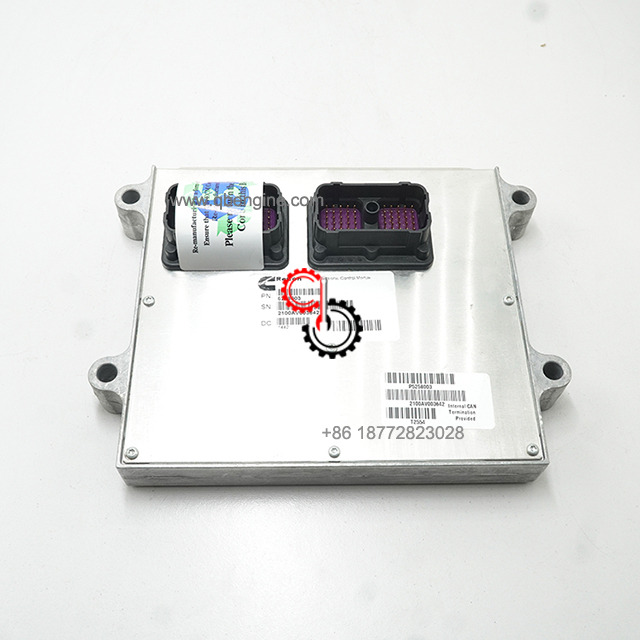

Cummins CM2100A Control Module ECM 5258003

  • original

  • cummins

  • 5258003

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins CM2100A Control Module ECM 5258003 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines 4B3.9, 6A3.4, 6B5.9, B GAS INTERNATIONAL CM556, B4.5, B4.5 CM2350 B129B, B4.5 CM2350 B146C, B4.5 CM2350 B147B, B4.5 RGT, B4.5S, B5.9 G, B5.9 GAS PLUS CM556, B5.9 LPG, B5.9 LPG PLUS CM556, B6.7 CM2350 B121B, B6.7 CM2350 B135B, B6.7 CM2350 B136C, B6.7 CM2350 B148B, B6.7 G CMOH6.0 B125, B6.7N CM2380 B150B, B6.7S, F3.8 CM2350 F120B, F3.8 CM2350 F128C, F3.8 CM2350 F132B, F3.8 F102, G3.9, G5.9, G5.9 CM558, ISB (CHRYSLER), ISB CM2150, ISB CM2150 E, ISB CM550, ISB CM850, ISB/ISD4.5 CM2150 B119, ISB/ISD4.5 CM2150 SN, ISB/ISD6.7 CM2150 B120, ISB/ISD6.7 CM2150 SN, ISB/ISD6.7 CM2880 B126, ISB3.9 CM2220 B107, ISB4.5 CM2150, ISB5.9G CM2180, ISB6.7 2010 DCX PICKUP, ISB6.7 2013 DCX CHASSIS CAB, ISB6.7 CM2150 SQ, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 CM2350 B103, ISB6.7 CM2350 B142, ISB6.7 CM2670 B153B, ISB6.7 G CM2180 B118, ISBE CM2150, ISBE CM800, ISBE2/ISBE3 CM850, ISBE4 CM850, ISD4.5 CM2150, ISD6.7 CM2880 D101, ISF2.8 CM2220, ISF2.8 CM2220 AN, ISF2.8 CM2220 EC, ISF2.8 CM2220 ECF2, ISF2.8 CM2220 F101, ISF2.8 CM2220 F117, ISF2.8 CM2220 F122, ISF2.8 CM2220 F126, ISF2.8 CM2220 F129, ISF2.8 CM2220 IAN, ISF3.8 CM2220, ISF3.8 CM2220 AN, ISF3.8 CM2220 F103, ISF3.8 CM2220 F110, ISF3.8 CM2220 F116, ISF3.8 CM2220 F134B, ISF3.8 CM2220 IAN, ISF3.8 CM2350 F109, ISF4.5 CM2220 F123, ISG11 CM2880 G106, ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 CM2880 G109, ISG12 G CMOH6.0 G111, QSB3.9 30 CM550, QSB3.9 CM2880 B138, QSB4.5 30 CM550, QSB4.5 CM2150 B108, QSB4.5 CM2250 B131, QSB4.5 CM2250 EC, QSB4.5 CM2350 B106, QSB4.5 CM2350 B122

5258003

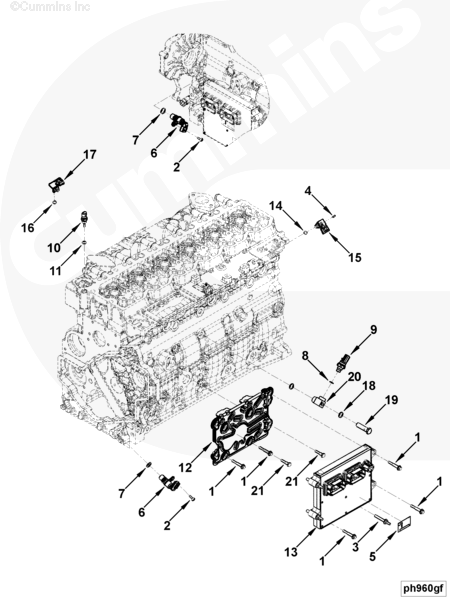

Ref No Part Number Part Description Required Remarks

PH9188-01 Engine Control Module
Engine Control Module
1 3900633 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 50
2 3906391 Socket Head Cap Screw 1 M6 X 1.00 X 16.
3 3944816 Studded Flange Cap Screw 1 M8 X 1.25 X 50
4 3957849 Socket Head Cap Screw 1 M4 X 0.7 X 16.
5 3958748 Information Decal 1
6 2872277 Position Sensor 1 Cam Or Crank.
7 4928599 O-Ring Seal 1

4954220 Pressure Switch 1 Serviced as 4955362
8 4921574 O-Ring Seal 1
9 4954221 Pressure Switch 1
10 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.
11 4010519 O-Ring Seal 1
12 4981929 Electronic Control Module Bracket 1
13 5258003 Electronic Control Module 1
14 4903482 O-Ring Seal 1
15 4921322 Pressure Temperature Sensor 1 Intake Manifold.

4921850 Pressure Temperature Sensor 1 Ambient Air.
16 4076420 O-Ring Seal 1
17 4928395 Pressure Temperature Sensor 1

4940215 Sensor Adapter 1
18 3954861 Sealing Washer 2
19 4940217 Banjo Connector Screw 1
20 4940216 Sensor Adapter 1
21 3902114 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 30.

4955362 Pressure Switch Kit A/R Oil Pressure

4954220 Pressure Switch 1 Serviced as 4955362

4940215 Sensor Adapter 1
18 3954861 Sealing Washer 2
19 4940217 Banjo Connector Screw 2
20 4940216 Sensor Adapter 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 13.13cm*9.88cm*4cm
Weight 5.25KG
