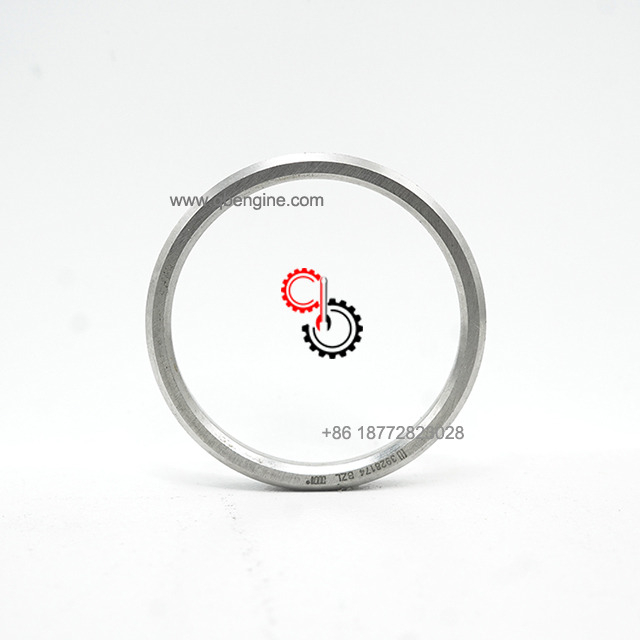

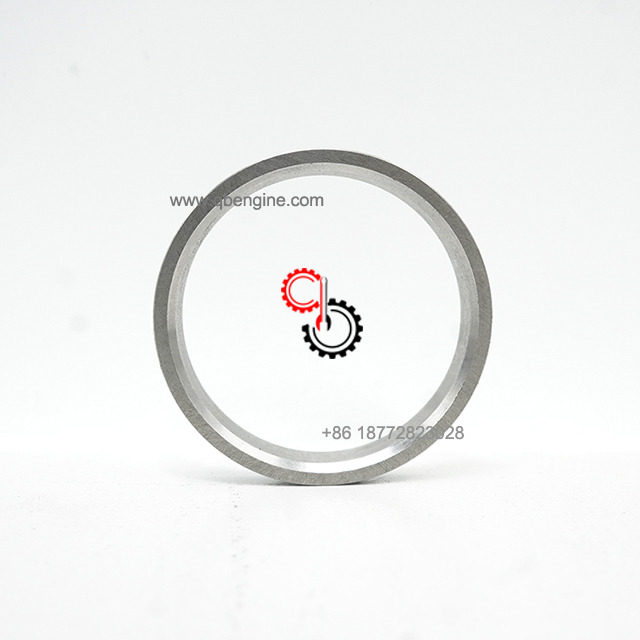

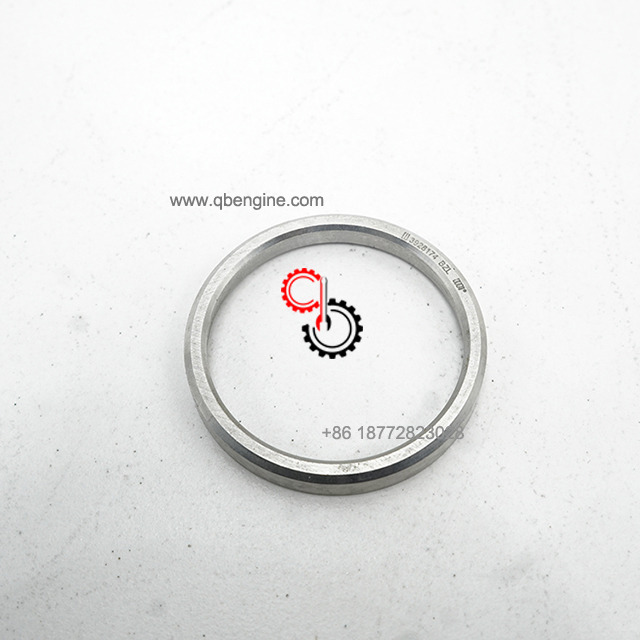

Cummins / Products / Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174
Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174
Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174 Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174
Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174 Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174
Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174 Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174

loading

Cummins 6CT Engine Parts Valve Insert 3928174 Intake Valve Seat 3928174

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins 6CT Valve Insert 3928174

  • 6CT

  • Cummins

  • 3928174

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins 6CT Valve Insert 3928174 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

3928174

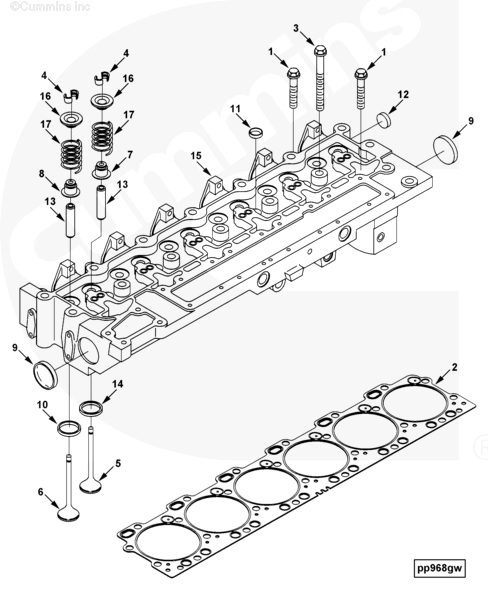

Ref No Part Number Part Description Required Remarks

PP97971-09 Cylinder Head
MR - HEAD, CYLINDER
1 3917729 Fracture Resistant Screw 12 M14 X 2.00 X 80.
2 3938267 Cylinder Head Gasket 1
3 3960043 Fracture Resistant Screw 14 M14 X 2.00 X 160.

3968902 Cylinder Head 1
4 3901177 Valve Collet 24
5 3921444 Exhaust Valve 6 Sold In Higher Level Assy/Kit
6 3924492 Intake Valve 6 Sold In Higher Level Assy/Kit
7 3927642 Valve Stem Seal 6
8 3930057 Valve Stem Seal 6

3936180 Cylinder Head 1 Sold In Higher Level Assy/Kit

3936180 Cylinder Head 1 Sold In Higher Level Assy/Kit
9 3900965 Expansion Plug 2 58.06 mm
10 3908830 Valve Insert 6 Standard
11 3914035 Expansion Plug 5
12 3920443 Expansion Plug 1
13 3925863 Valve Stem Guide 12
14 3928174 Valve Insert 6 Exhaust
15 3936154 Cylinder Head 1
16 3972757 Valve Spring Retainer 12
17 5292625 Valve Spring 12

3802085 Exhaust Valve A/R

3901177 Valve Collet 2

3921444 Exhaust Valve 1 Sold In Higher Level Assy/Kit

3802463 Intake Valve Kit A/R

3924492 Intake Valve 1 Sold In Higher Level Assy/Kit

SHIPMENT CHARACTERISTICS
Length * Width * Height 15cm*10cm*1cm
Weight 0.022KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
