Cummins / Complete Engine Cummins/ Komatsu/ Weichai / B, C, L Cummins Engine / 4B3.9 4BT 4BTA 4BTAA Cummins Engine 3.9L / Cummins 4BT3.9 C100 CPL8204 Diesel Engine VE Pumps 4BT3.9-C100 Complete Engine

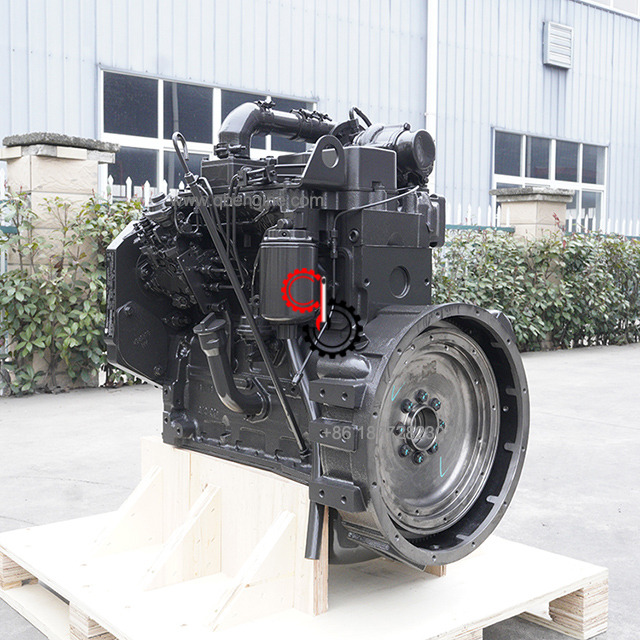

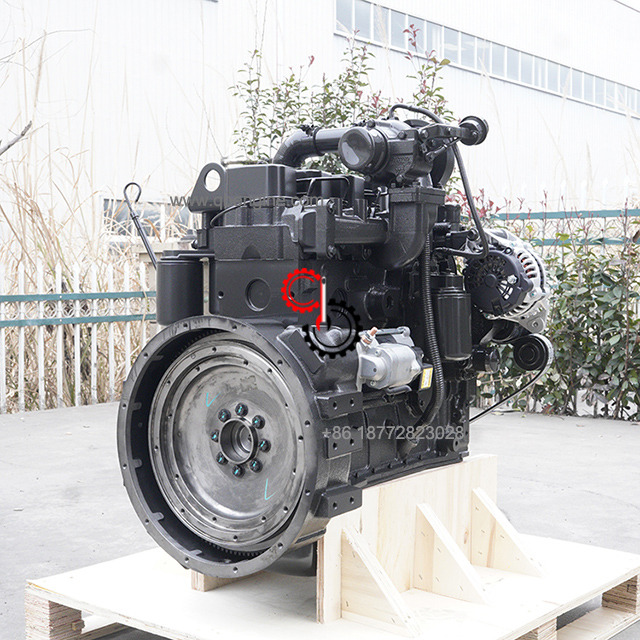

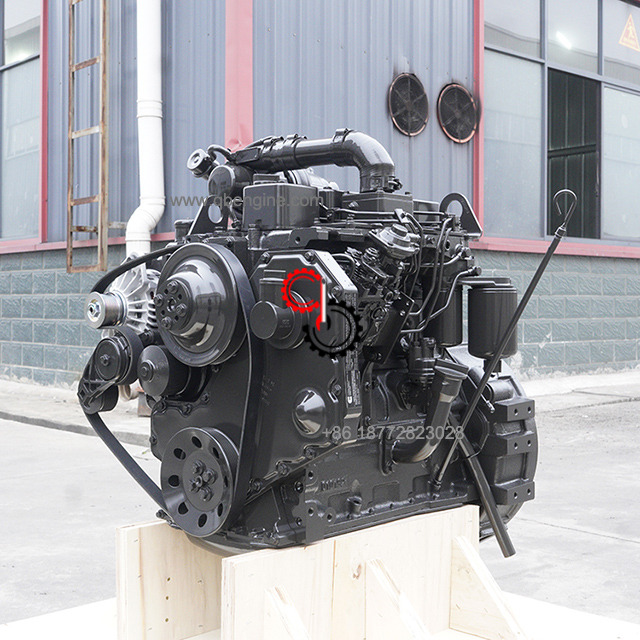

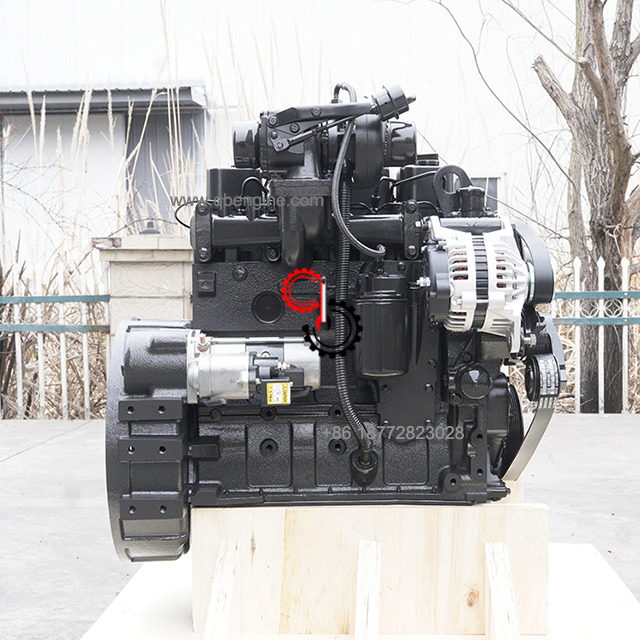

Cummins 4BT3.9 C100 CPL8204 Diesel Engine VE Pumps 4BT3.9-C100 Complete Engine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The 4B3.9 is a 4-cylinder in-line/rotary fuel system design
  • 4BT3.9-C100

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 1 years

Availability:
Quantity:

PDF Export

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

Cummins 4BTA3.9 Engine Overivew

Configurations and Model Names
EPA Model NameNot Available
Marketing Engine Configuration #D852002CC03
Marketing Model NameB4.5
Service Model NameB4.5
Technical Engine Configuration #D852002CX03
Engine Build Details
Build Date2007-12-10T00:00:00Z
Build PlantDAR - DARLINGTON OPERATIONS
CPL #8204
Shop OrderSO1788
Warranty Start DateNot Available
Technical Specification Details
ECM CodeNot Available
Fuel Pump Part #3957701
Fuel Pump CalibrationNot Available


4BT3.9 for Commercial Industrial

Specifications

  • Cummins® heavy-duty engine - Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.

  • Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

  • Control system - The PowerCommand® electronic control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, AmpSentry™ protection, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

  • Cooling system - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.

  • Enclosures - Optional weather protective and sound attenuated enclosures are available.

  • Fuel tanks - Dual wall sub-base fuel tanks and in-skid day tanks are also offered.

  • NFPA - The genset accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems

Cummins 4BT3.9 Engine Ratings

Model
Rated power output (kW@RPM)
Peaktorque (Nm@RPM)
Rated power output (HP)
4BTA3.9-C80
60@2200
350@1500
80HP
4BTA3.9-C100
74@2200
380@1500
99HP
4BTA3.9-C110
82@2200
460@1400
110HP
4BTA3.9-C125
93@2300
475@1500
125HP
4BTA3.9-C130
97@2500
475@1500
130HP
