Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941
Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941
Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941 Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941
Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941 Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941
Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941 Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941

loading

Cummins 4951941 Engine Electronic Control System Temperature Sensor 4951941

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins Temperature Sensor 4951941

  • original

  • Cummins

  • 4951941

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

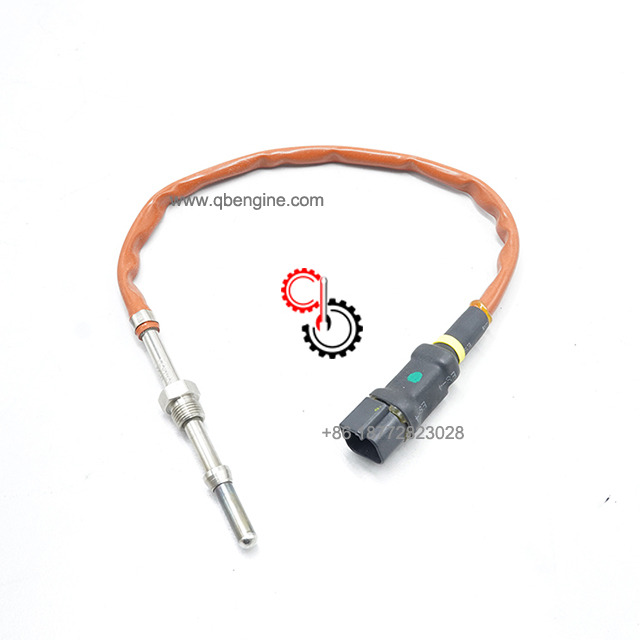

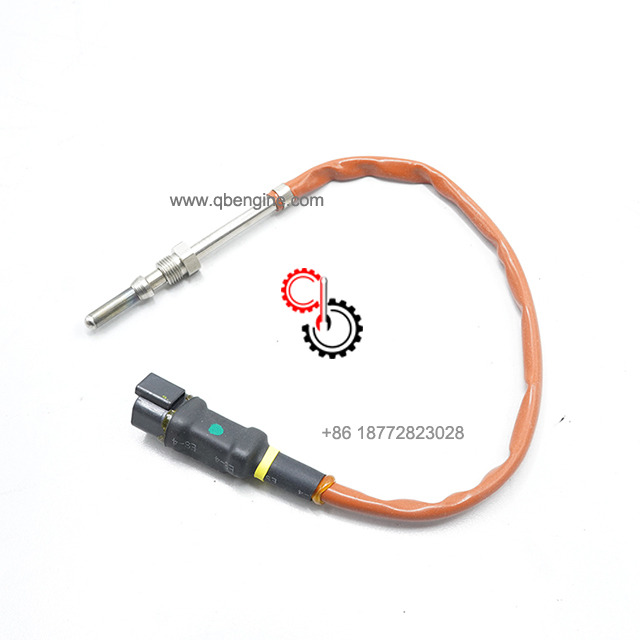

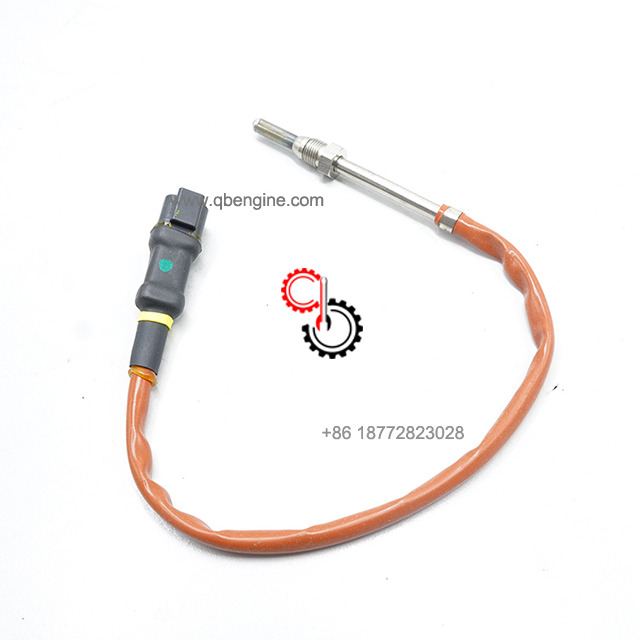

Cummins Temperature Sensor 4951941 In Stock

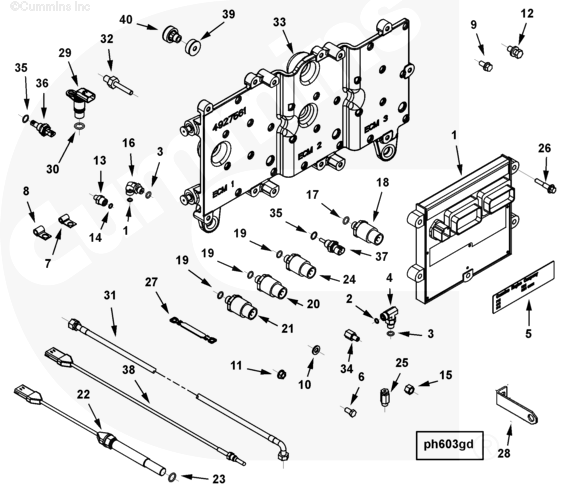

Electronic  Parts Catalog - Option Detail
Cummins  Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

4951941

Ref No Part Number Part Description Required Remarks

PH6815-02 Engine Control Module

1 4921776 Electronic Control Module 1 Order 4921776 NX

4924727 Plain Adapter Tee 2
2 3089392 O-Ring Seal 1
3 3678603 O-Ring Seal 1
4 4924728 Plain Adapter Tee 1
5 3609867 Dataplate 1
6 S 110 Hexagon Head Cap Screw 16 5/16 - 18 X 5/8 in.
7 180371 Clip 16
8 180372 Clip 21
9 3015283 Captive Washer Cap Screw 17 5/16 - 18 x 3/4 in.
10 3042328 Plain Washer 16 1/4 in.
11 3063556 Hexagon Flange Nut 4 5/16 - 18 UNC
12 3064321 Captive Washer Cap Screw 16 3/8 - 16 x 7/8 in.

3170812 Male Connector 3
13 3397525 Male Connector 1
14 3865251 O-Ring Seal 1
15 3175239 Lock Nut 16

3393834 Male Union Elbow 2
16 3393835 Male Union Elbow 1

3408533 Pressure Sensor 1 Crankcase.
17 3330202 O-Ring Seal 1
18 3408534 Pressure Sensor 1

3408600 Pressure Sensor 2 Intake Manifold Or Coolant **
19 3330159 O-Ring Seal 1
20 3408601 Pressure Sensor 1

3408602 Pressure Sensor 1 Oil Or Oil Rifle.
21 3408603 Pressure Sensor 1

3408647 Position Sensor 1 Crank.
22 3408650 Position Sensor 1
23 4903568 O-Ring Seal 1

3408651 Pressure Sensor 1 Pre/Post Oil Filter.
24 3408652 Pressure Sensor 1
25 3638582 Draincock 1
26 3900678 Hexagon Flange Head Cap Screw 5 M8 X 1.25 X 40.
27 3954204 Ground Wire 1
28 4071258 Tube Brace 16

4921686 Position Sensor 1 Crank
29 4921687 Position Sensor 1
30 4928599 O-Ring Seal 1
31 4924674 Flexible Hose 3
32 4924726 Studded Hexagon Cap Screw 4

4927561 Electronic Control Cooler 1
33 4927562 Electronic Control Cooler 1
34 553044 Plain Pipe Adapter 2

3085185 Temperature Sensor 2 Intake Manifold
35 3037537 O-Ring Seal 1
36 3085198 Temperature Sensor 1 Intake Manifold

3865312 Temperature Sensor 1 Coolant Or Oil *.
37 3865323 Temperature Sensor 1 Coolant Or Oil *.
38 4951941 Temperature Sensor 16 Exhaust gas.
39 3955219 Vibration Isolator 4
40 3955220 Vibration Isolator 4


SHIPMENT CHARACTERISTICS

Length * Width * Height

 1cm*1cm*1cm
Weight 1KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
