Cummins / Products / Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components
Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components
Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components
Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components
Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components

loading

Cummins 3633381 STC Oil Control Valve 3633381 Heavy-Duty Equipment Components

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

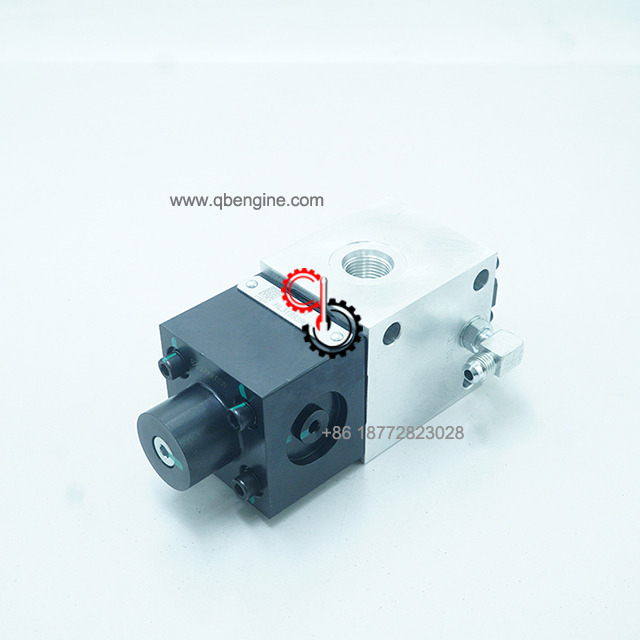

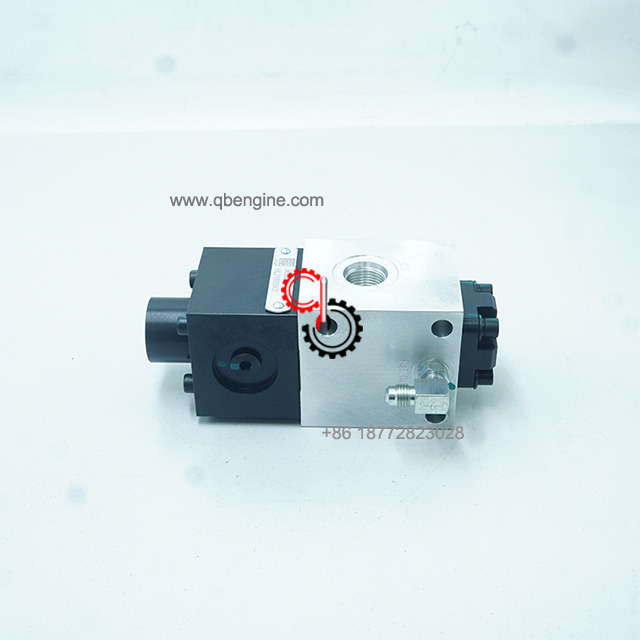

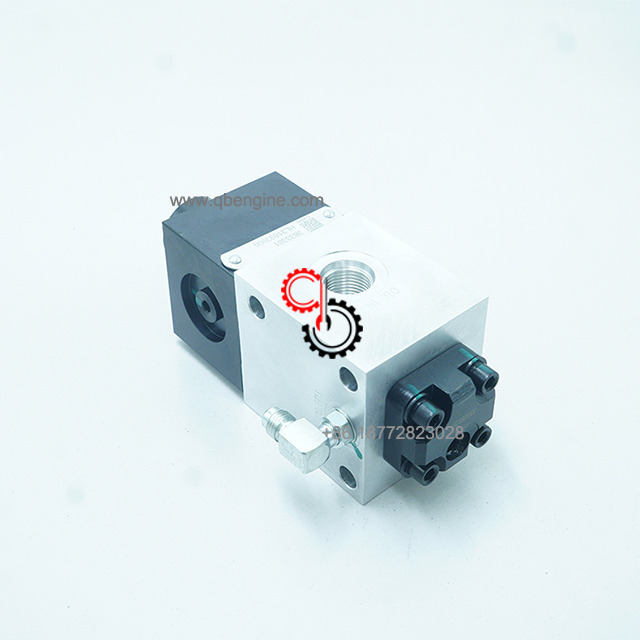

Cummins STC Oil Control Valve 3633381

  • original

  • Cummins

  • 3633381

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins STC Oil Control Valve 3633381 In Stock

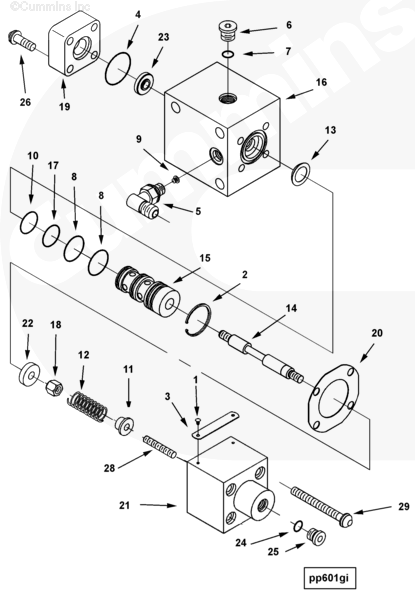

Electronic  Parts Catalog - Option Detail
Cummins  Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3633381

Ref No Part Number Part Description Required Remarks

PP43763 Oil Control Valve


3633381 Oil Control Valve 2
1 S 2286 Drive Screw 2 3/16 in.
2 S 16240 Retaining Ring 1
3 105375 Nameplate 1
4 3034408 O-Ring Seal 1
5 3038743 Check Valve 1

3040814 Threaded Plug 1 7/16 - 20 UNF
6 3036665 Threaded Plug 1 7/16 - 20 UNF
7 3036666 O-Ring Seal 1
8 3042542 O-Ring Seal 2
9 3044993 Injector Orifice Plug 1
10 3045986 O-Ring Seal 1
11 3049041 Spring Retainer 1
12 3056072 Compression Spring 1
13 3054411 Leaf Spring 1

3060605 Barrel And Plunger 1
14 3053667 Oil Control Valve Plunger 1
15 3060604 Oil Control Valve Barrel 1
16 3060606 Oil Control Valve Body 1
17 3066914 O-Ring Seal 1
18 3069015 Lock Nut 2 1/4 - 28 UNF.
19 3069989 Oil Control Valve Cover 1
20 3070108 Control Valve Body Gasket 1
21 4009927 Diaphragm Cover 1
22 3070186 Plain Washer 1 1/4 Inch.
23 3073998 Valve Disc 1

3417076 Threaded Plug 1
24 3034412 O-Ring Seal 1
25 3417103 Threaded Plug 1
26 3417077 Socket Head Cap Screw 4
28 3417096 Socket Set Screw 1
29 3417098 Socket Head Cap Screw 4

SHIPMENT CHARACTERISTICS
Length * Width * Height 19cm*19cm*13cm
Weight 2.291KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
