Cummins / Products / Cummins 3085989 Lubricating Oil Pump Gasket 3085989
Cummins 3085989 Lubricating Oil Pump Gasket 3085989
Cummins 3085989 Lubricating Oil Pump Gasket 3085989 Cummins 3085989 Lubricating Oil Pump Gasket 3085989
Cummins 3085989 Lubricating Oil Pump Gasket 3085989 Cummins 3085989 Lubricating Oil Pump Gasket 3085989

loading

Cummins 3085989 Lubricating Oil Pump Gasket 3085989

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

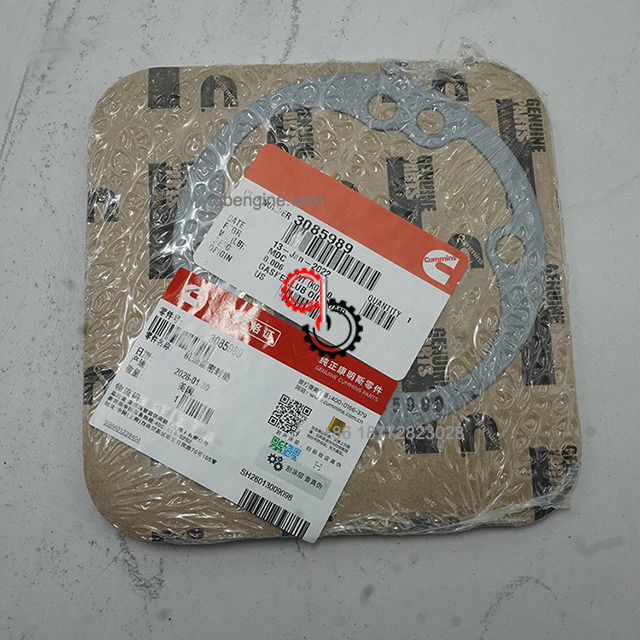

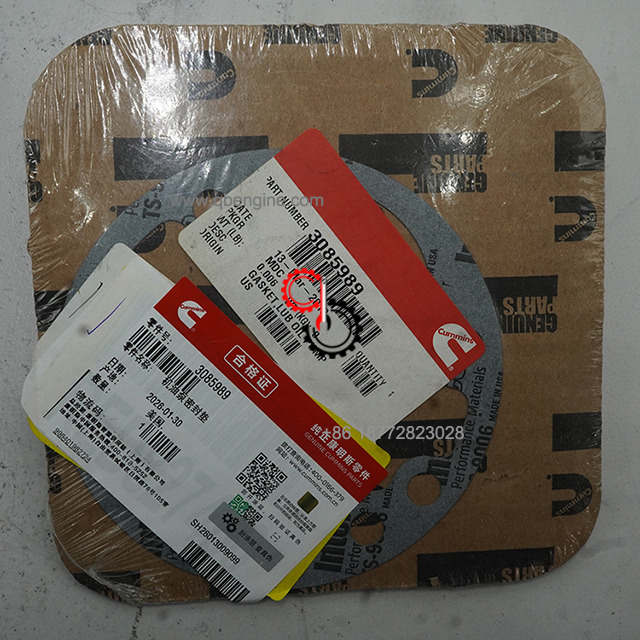

Cummins Lubricating Oil Pump Gasket 3085989

  • Original

  • Cummins

  • 3085989

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Lubricating Oil Pump Gasket 3085989 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM2350 K114, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3085989

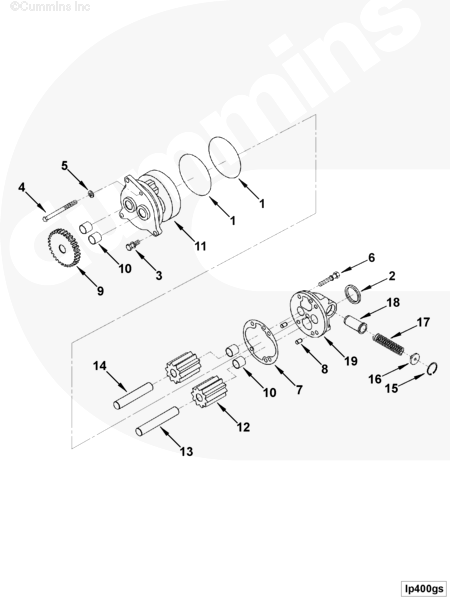

Ref No Part Number Part Description Required Remarks

BP4051 Lubricating Oil Pump
Lubricating Oil Pump
1 205898 O-Ring Seal 2
2 207135 Rectangular Ring Seal 1
3 3010596 Captive Washer Cap Screw 3 3/8 - 16 x 1 1/4 in.

3096326 Lubricating Oil Pump 1 Recon Equiv. 3096326 NX/RX
4 S 197 Hexagon Head Cap Screw 1 3/8 - 16 X 4 1/4"
5 S 604 Lock Washer 1 3/8 in.
6 3012475 Captive Washer Cap Screw 3 3/8 - 16 X 2 1/4 in.
7 3085989 Lubricating Oil Pump Gasket 1

3086008 Lubricating Oil Pump 1
8 70760 Pin Dowel 2
9 207252 Lubricating Oil Pump Gear 1

3086007 Lubricating Oil Pump Body 1
10 69521 Bushing 2
11 3086006 Lubricating Oil Pump Body 1

3329510 Gear And Shaft 1
12 3096368 Lubricating Oil Pump Gear 1
13 3086221 Lubricating Oil Pump Drive Shaft 1

3329511 Gear And Shaft 1
12 3096368 Lubricating Oil Pump Gear 1
14 3079701 Idler Shaft 1

3096327 Lubricating Oil Pump Cover 1
10 69521 Bushing 2
15 156676 Retaining Ring 1
16 3081668 Retainer Plug 1
17 3096323 Compression Spring 1
18 3096324 Pressure Regulator Plunger 1
19 3096328 Lubricating Oil Pump Cover 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 17cm*17cm*1cm
Weight 0.018KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
