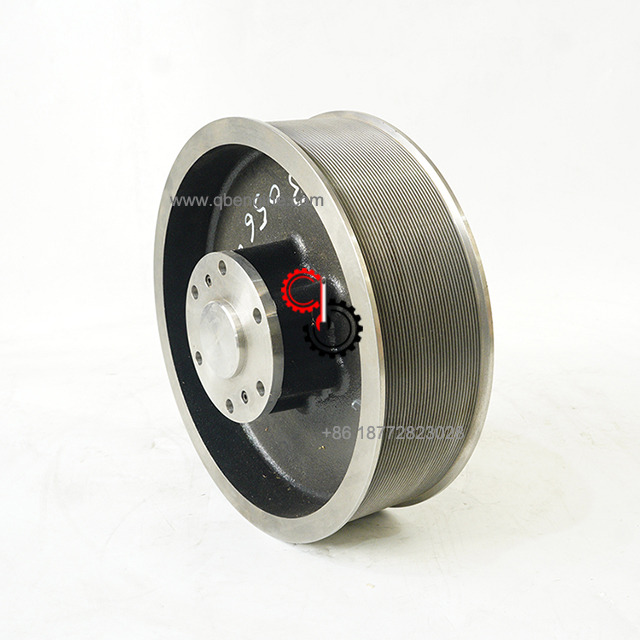

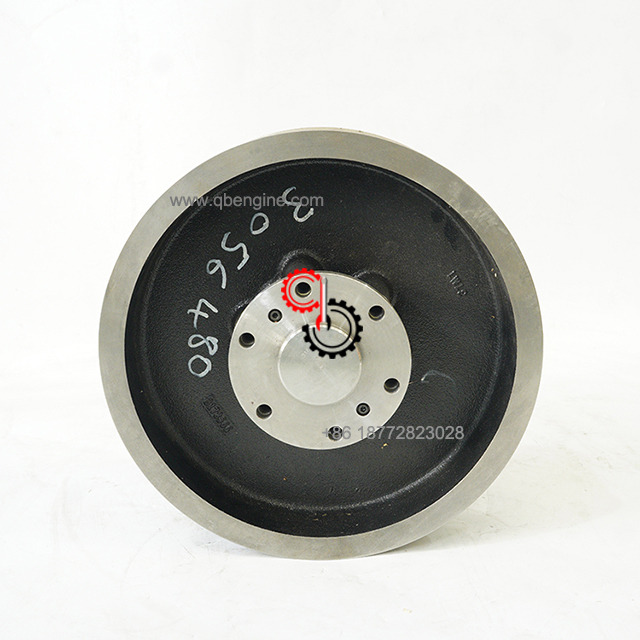

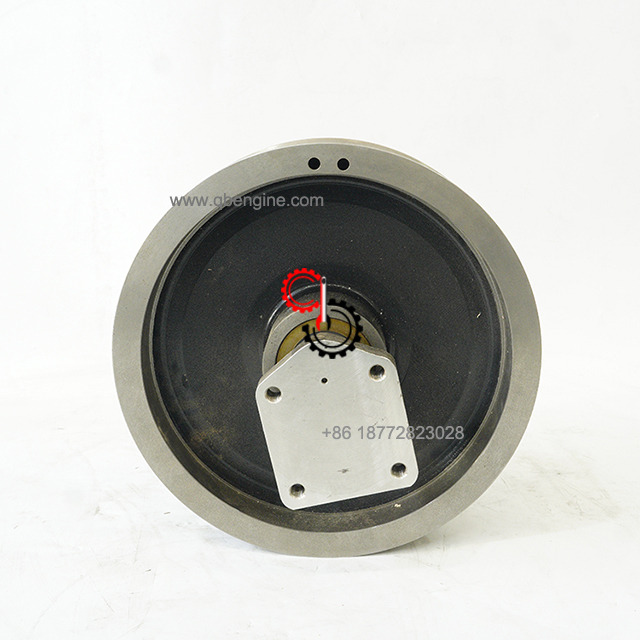

Cummins 3056480 QST30 Fan Hub 3056480 Diesel Engine Parts for Mining Trucks

Cummins 3056480 QST30 Fan Hub 3056480 Diesel Engine Parts for Mining Trucks

Name: Cummins 3056480 QST30 Fan Hub 3056480 Diesel Engine Parts for Mining Trucks
Brand: Cummins
Rating: 5.0 (9 reviews)

Cummins QST30 Fan Hub 3056480

Model:
QST30
Brand:
Cummins
Code:
3056480
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins QST30 Fan Hub 3056480 In Stock

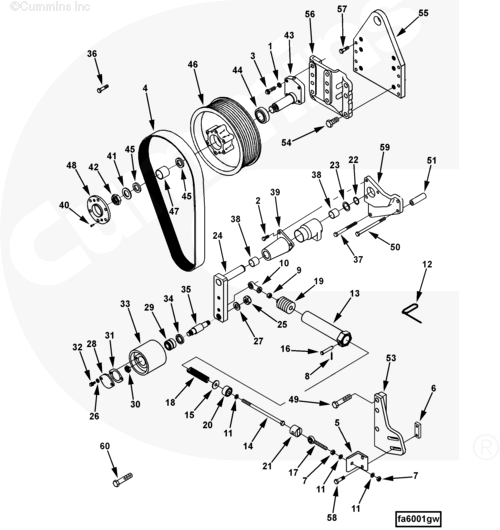

Electronic Parts Catalog - Option Detail
Cummins Engines	QST30 CM2350 T101, QST30 CM552, QST30 CM850

3056480

Ref No	Part Number	Part Description	Required	Remarks
	FA5079-05	Fan Drive
	S 608	Lock Washer	3	1/2 in.
1	S 603	Lock Washer	4	5/8 in.
2	3064111	Hexagon Head Cap Screw	3	M12 x 1.75 x 35.
3	153581	Twelve Point Cap Screw	4	5/8 - 11 x 2 in.
4	3092206	V Ribbed Belt	1
5	3092284	Idler Pulley Brace	1
6	3092289	Clamping Plate	1
	3092157	Fan Drive Idle Assembly	1
	4068467	Belt Tensioner	1
7	S 253	Regular Hexagon Jam Nut	3	1/2 - 20 UNF
8	S 500	Cotter Pin	1
9	146517	Regular Hexagon Nut	1	1/2 - 20 UNF
10	177269	Control Rod End	1
11	3036900	Plain Washer	3	1/2 in.
12	3076301	Wire Tie Clamp	2
13	3086244	Belt Tensioner Housing	1
14	4068466	Hexagon Head Cap Screw	1
15	3086251	Spring Retainer	1
16	3086252	Clevis Pin	1
17	3086253	Control Rod End	1
18	3086269	Compression Spring	1
19	3090194	Dust Seal	1
20	3402156	Spring Guide	1
21	3402157	Control Rod Retainer	1
	3092158	Idler Pulley	1
22	135530	Retaining Ring	1
23	3086278	Plain Washer	1
24	3092159	Idler Lever	1
	3329557	Pivot Shaft	1
	3092364	Idler Pulley	1
25	S 249	Regular Hexagon Jam Nut	1	3/4 - 16 UNF
26	S 626	Plain Washer	2	5/16 in.
27	S 640	Plain Washer	1	3/4 in.
28	207603	Idler Pulley Cover	1
29	3003354	Roller Bearing	1
30	·3004057	Lock Nut	1	3/4 - 16 UNF.
31	3014449	Flange Gasket	1
32	3021470	Captive Washer Cap Screw	2	5/16 - 18 x 3/4 in.
33	3028409	Idler Pulley	1
34	3065830	Oil Seal	1
35	3028410	Idler Shaft	1
36	3093755	Hexagon Head Cap Screw	1
37	3094936	Hexagon Head Cap Screw	1
	3329561	Pivot Shaft Support	1
38	3329556	Bushing	2
39	3329560	Pivot Shaft Support	1
	3056480	Fan Hub	1
40	69771	Socket Head Cap Screw	2	1/4 - 20 x 5/8 in.
	3056479	Fan Hub	1
41	205168	Plain Washer	1	1 1/2 in.
42	206506	Lock Nut	1
43	3028405	Fan Hub Shaft	1
44	3048625	Oil Seal	1
45	3048626	Roller Bearing	2
46	3178566	Fan Pulley	1
47	3627679	Bearing Spacer	1
48	3176672	Fan Pilot Spacer	1
49	3092350	Hexagon Head Cap Screw	3	M20 x 2.50 x 90
50	3092474	Hexagon Head Cap Screw	2
51	4067974	Mounting Spacer	4
53	4067971	Belt Tensioner Bracket	1
54	3093761	Hexagon Head Cap Screw	2	M20 x 2.50 x 45
55	3093978	Lifting Bracket	1
56	4068052	Fan Support	1
57	3094934	Hexagon Head Cap Screw	8
58	3202222	Hexagon Head Cap Screw	2	1/2 - 13 X 1 3/4 in.
59	4068146	Idler Pulley Bracket	1
60	3093761	Hexagon Head Cap Screw	3	M20 x 2.50 x 45

SHIPMENT CHARACTERISTICS
Length * Width * Height	43cm63cm43.4cm
Weight	51KG
