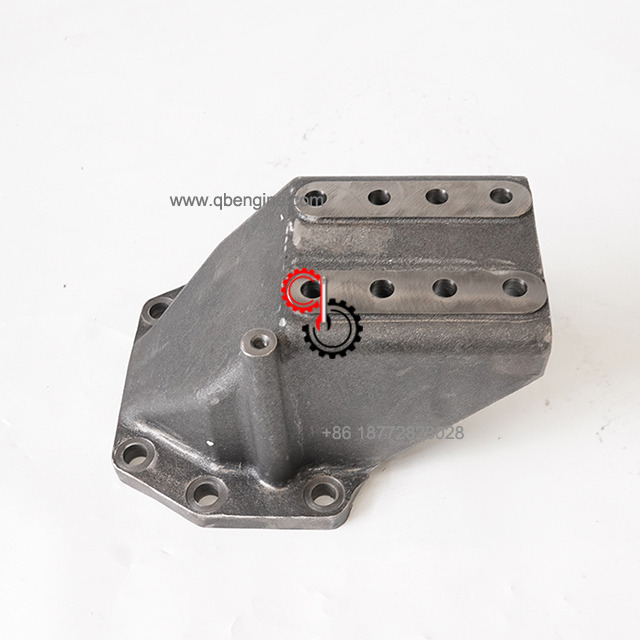

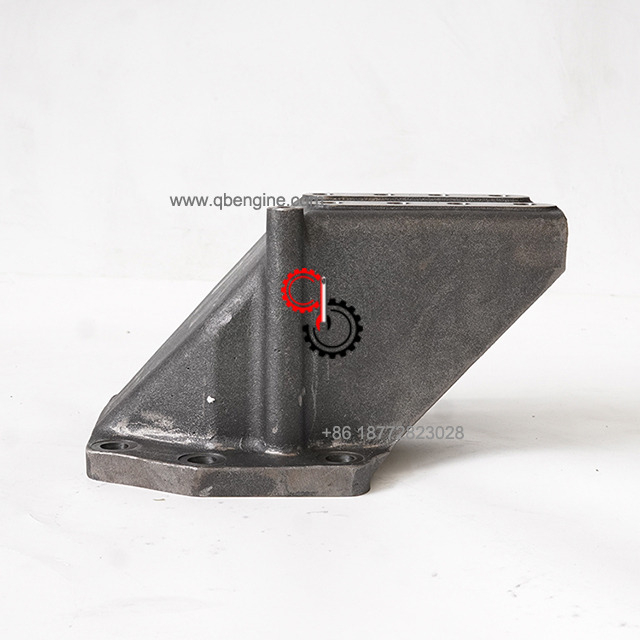

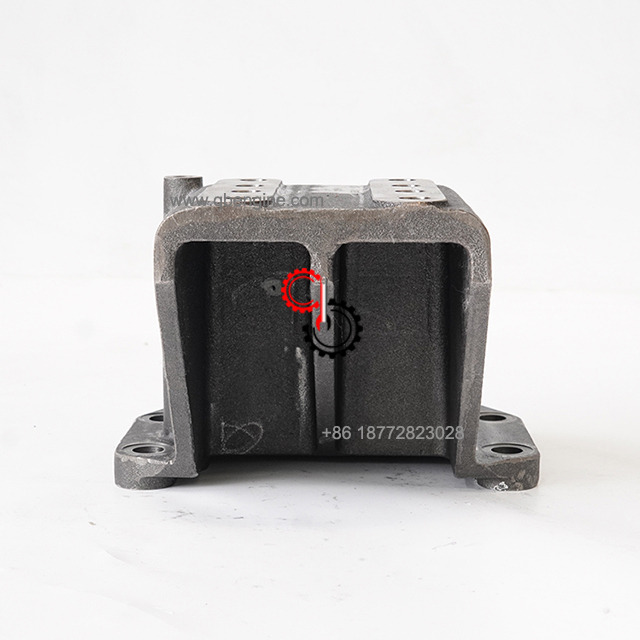

Cummins K50 Fan Support 3015460

  • K50

  • Cummins

  • 3015460

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K50 Fan Support 3015460 In Stock

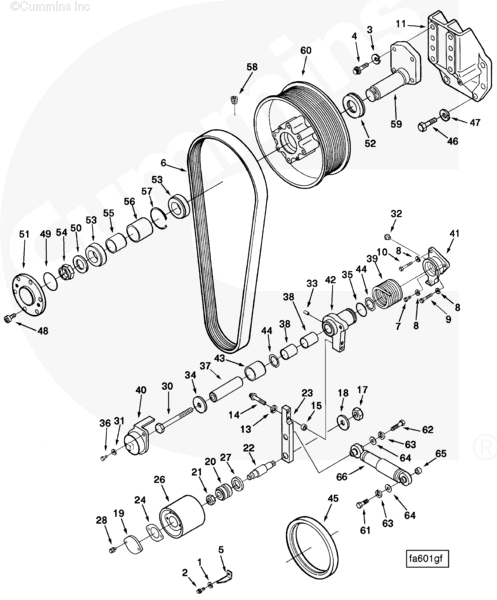

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3015460

Cart Ref No Part Number Part Description Required Remarks


FA6108-06 Fan Drive Arrangement
Fan drive arrangement  with...(More)
1 S 605 Lock Washer 1 5/16 in.
2 206527 Twelve Point Cap Screw 1 5/16 - 18 X 5/8 in.
3 S 603 Lock Washer 4 5/8 in.
4 153581 Twelve Point Cap Screw 4 5/8 - 11 x 2 in.
5 206526 Timing Pointer 1

6 3015259 V Ribbed Belt 1

7 S 153 Hexagon Head Cap Screw 1 7/16 - 14 X 5 in.
8 S 610 Lock Washer 4 7/16 in.
9 103009 Hexagon Head Cap Screw 1 7/16 - 14 X 1 1/4 in.
10 3176465 Hexagon Head Cap Screw 2 7/16 - 14 X 5 1/2 Inch.
11 3015460 Fan Support 1


3017670 Fan Idler 1

13 S 604 Lock Washer 2 3/8 in.
14 205375 Twelve Point Cap Screw 2 3/8 - 16 X 2 1/4 Inch.
15 3002993 Ring Dowel 2


3009480 Idler Pulley 1

17 S 249 Regular Hexagon Jam Nut 1 3/4 - 16 UNF
18 S 640 Plain Washer 1 3/4 in.
19 207603 Idler Pulley Cover 1

20 3003354 Roller Bearing 1

21 3004057 Lock Nut 1 3/4 - 16 UNF.
22 3009481 Idler Shaft 1

23 3009482 Idler Pulley Bracket 1

24 3014449 Flange Gasket 1


3016766 Idler Pulley 1

26 3009483 Idler Pulley 1

27 3065830 Oil Seal 1

28 3021470 Captive Washer Cap Screw 2 5/16 - 18 x 3/4 in.

4101093 Idler Lever 1

30 3628104 Hexagon Head Cap Screw 1

31 S 610 Lock Washer 1 7/16 in.
32 S 2268 Grease Fitting 1

33 68171 Roll Pin 2

34 127454 Plain Washer 1 5/8 Inch.
35 145581 O-Ring Seal 1

36 185804 Hexagon Head Cap Screw 1 7/16 - 14 X 1 3/8 in.
37 3009475 Pivot Shaft 1

38 3009477 Sleeve 2

39 3019416 Torsion Spring 1

40 3023499 Idler Lever Cap 1

41 3177126 Pivot Shaft Support 1

42 4101094 Idler Lever 1

43 3177128 Wear Sleeve 1

44 3177129 Thrust Bearing 2

45 3016792 Oil Seal 1

46 S 174 Hexagon Head Cap Screw 6 3/4 - 10 X 4 in.
47 S 611 Lock Washer 6 3/4 in.

3031545 Fan Hub 1

48 69771 Socket Head Cap Screw 2 1/4 - 20 x 5/8 in.
49 145586 O-Ring Seal 1

50 205168 Plain Washer 1 1 1/2 in.
51 206507 Fan Hub 1

52 185747 Oil Seal 1

53 206505 Roller Bearing 2

54 206506 Lock Nut 1

55 3627681 Bearing Spacer 1

56 206519 Bearing Spacer 1

57 206520 Retaining Ring 1

58 3628604 Pipe Plug 2 1/8 - 27 X 0.3 in.
59 3031518 Fan Hub Shaft 1

60 3178564 Fan Pulley 1

61 S 121 B Hexagon Head Cap Screw 1 7/16 - 14 X 2 1/2 in.
62 S 162 A Hexagon Head Cap Screw 1 7/16 - 14 X 2 3/4 in.
63 S 610 Lock Washer 2 7/16 in.
64 S 622 Plain Washer 2 3/8 in.
65 104857 Fan Spacer 1

66 3008018 Shock Absorber



SHIPMENT CHARACTERISTICS
Length * Width * Height 33cm*28cm*25cm
Weight 14.515kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
