NT855 Applications Mining Generators Power 280 - 480 hp 209 - 358 kW The Cummins NT-Series engines have been service proven through millions of hours of operation in some of the world’s most demanding applications.
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

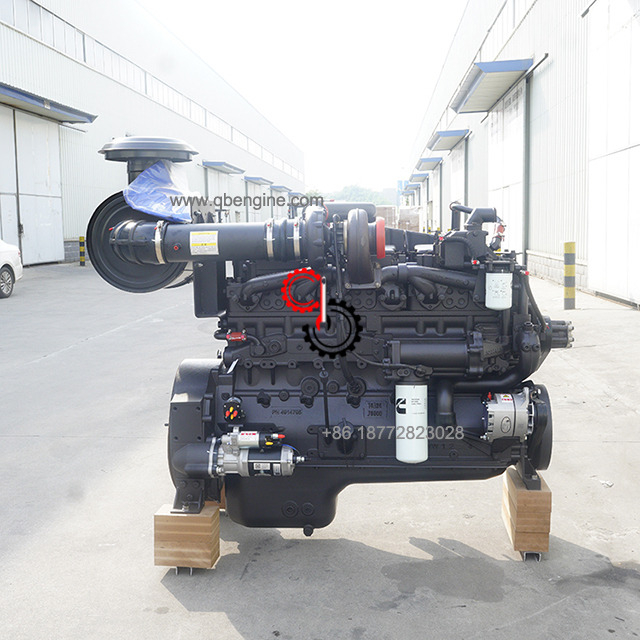

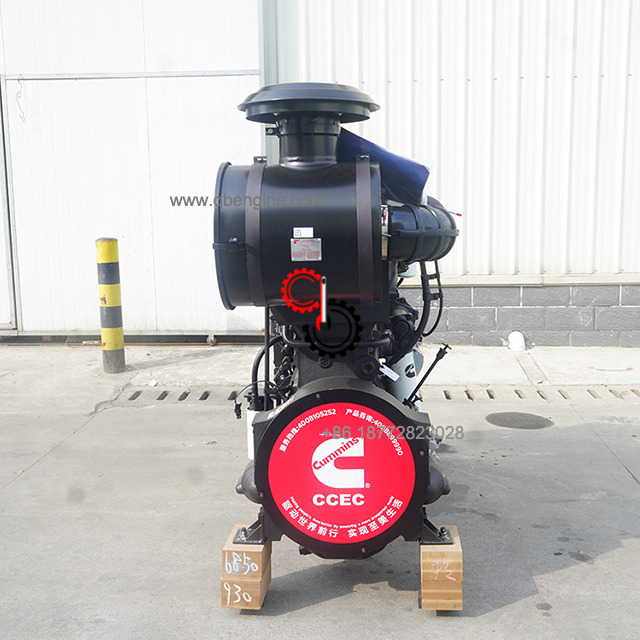

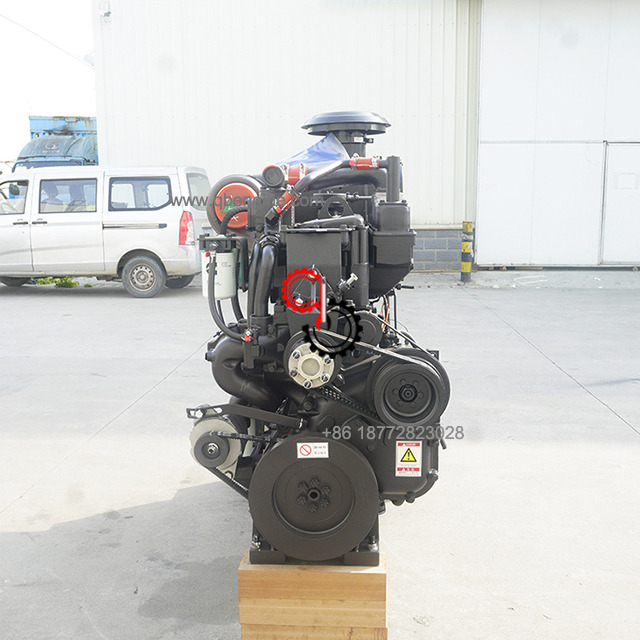

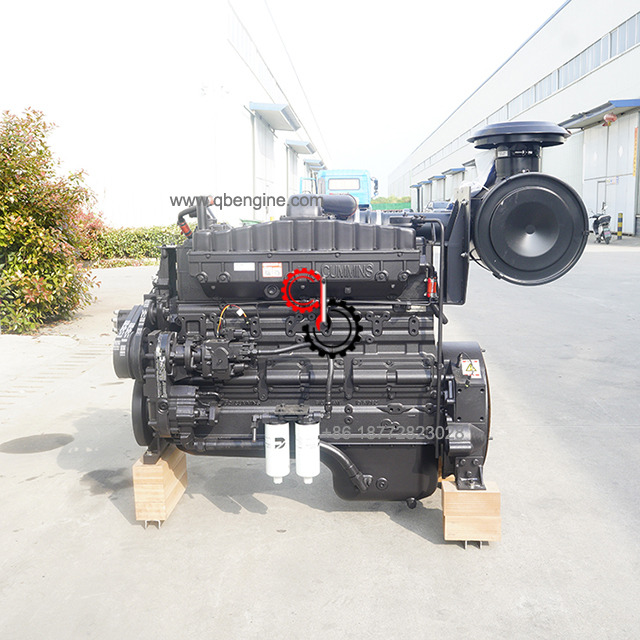

Cummins NTA855-G1 Engine Overivew
No
Item
Data
1
Engine Model
NTA855-G1A NTA855-G1B
2
Displacement
14L
3
Cylinder
6 cylinders
4
Rated Power
321KW@1500r/min & 347Kw@1800r/min
5
Prime Power
284KW@1500r/min & 313Kw@1800r/min
Configurations and Model Names
EPA Model Name
Not Available
Marketing Engine Configuration #
D093517DD02
Marketing Model Name
NTA855-G1B
Service Model Name
NH/NT 855
Technical Engine Configuration #
D093517DX02
Engine Build Details
Build Date
2026-03-30T00:00:00Z
Build Plant
CQP - CHINA - CHONGQING (CCEC)
CPL #
3550
Shop Order
SO15930
Warranty Start Date
Not Available
Technical Specification Details
ECM Code
Not Available
Fuel Pump Part #
Not Available
Fuel Pump Calibration
Not Available
The Cummins NT-Series engines have been service proven through millions of hours of operation in some of the world’s most demanding applications.
Performance- Efficient combustion for better fuel economy and lower oil consumptions. Cummins Mining engine N855 BC PT Fuel System- Cummins PT™ self-adjusting system. Integral dual flyweight governor provides over speed protection independent of main governor. Camshaft actuated fuel injectors give accurate metering and timing.
Cylinder Liners- Replaceable wet liners dissipate heat faster than dry liners and are easily replaced without re boring the block. Cylinder Heads- Alloy cast iron. Each head serves two cylinders. Drilled fuel supply and return lines. Valve seat inserts are replaceable and corrosion resistant. Valve and crosshead guides are replaceable.
Additional ratings may be available. Check with Qingbang Online Service.
