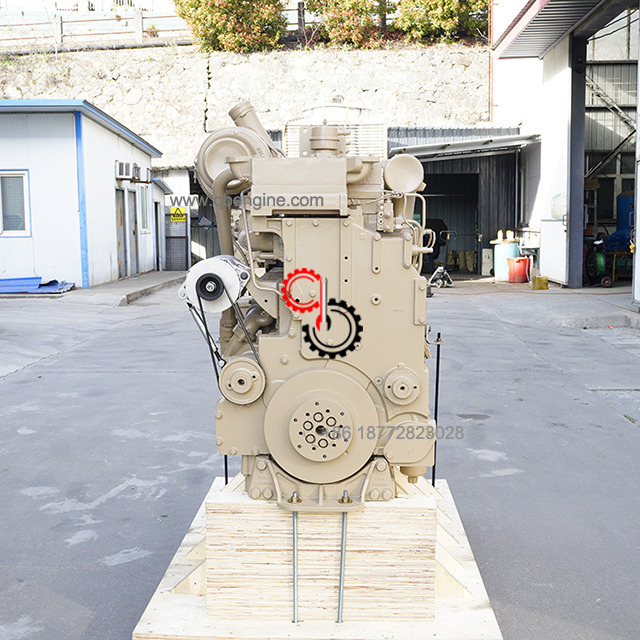

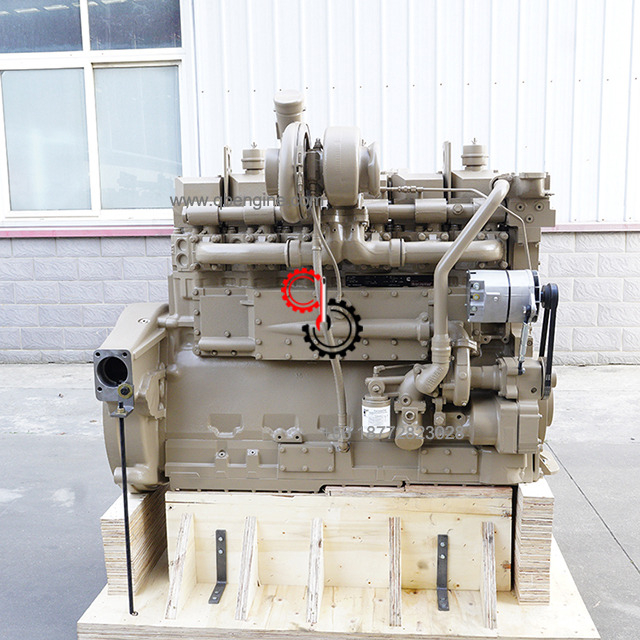

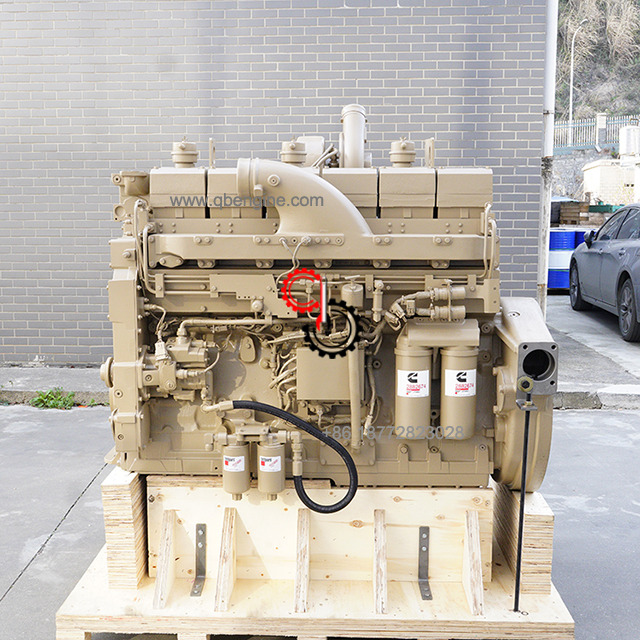

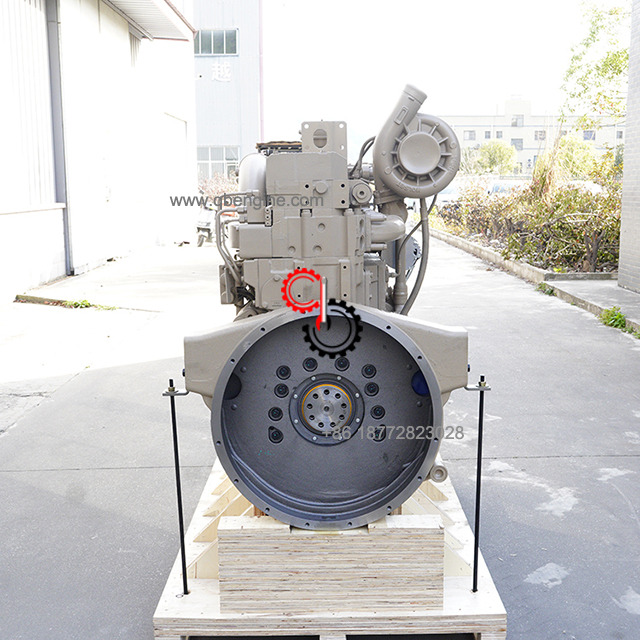

Cummins QSK19-C600 Engine Overview
Configurations and Model Names
EPA Model Name
Not Available
Marketing Engine Configuration #
D193096RX03
Marketing Model Name
QSK19-R700
Service Model Name
QSK19 CM500
Technical Engine Configuration #
D193096CX03
Engine Build Details
Build Date
2002-10-10T00:00:00Z
Build Plant
CIC - INDUSTRIAL CENTER
CPL #
2927
Shop Order
SO20129
Warranty Start Date
Not Available
Technical Specification Details
ECM Code
D40941
Fuel Pump Part #
Not Available
Fuel Pump Calibration
EL87
QSK19 FOR CONSTRUCTION (TIER 3)
The QSK19 meets Tier 3 and Stage IIIA emissions standards, using in-cylinder technology, a simple and cost-effective solution that maintains the proven performance, dependability and durability while operating cleanly and efficiently.
The Tier 3 approved QSK19 is a powerful example of Cummins Quantum System technology at work. In the QSK19, state-of-the-art electronic controls and Cummins modular common-rail fuel system ensure clean, efficient performance and minimum maintenance. In the same compact footprint as its predecessor.
Available in a range of ratings from 506-700 hp (377-522 kW), the QSK19 offers an impressive range of standard features. And its fuel system is tolerant to a wide variety of worldwide fuels, including high-sulfur diesel and Japanese kerosene.
To ensure that every QSK19 is perfectly matched to every piece of equipment, Cummins Advisor is ready to provide expert assistance with your installation process.
Every QSK19 engine is covered by Cummins three-step warranty, one of the most comprehensive and simplest plans in the industry.
The in-cylinder combustion technology and electronic controls of the QSK19 not only ensure clean operation that meets Tier 3 and Stage IIIA emissions standards, but also ensure powerful and efficient operation every time. With Cummins modular common-rail fuel system, injection pressure can be virtually constant at all speeds - realizing greater flexibility and precision in controlling both injection rates and timing.
Additional ratings may be available. Check with Qingbang.
