Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899
Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899
Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899 Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899
Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899 Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899
Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899 Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899

loading

Brand New Motor Engine Spare Parts Cummins QSK Priming Pump 4313899

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

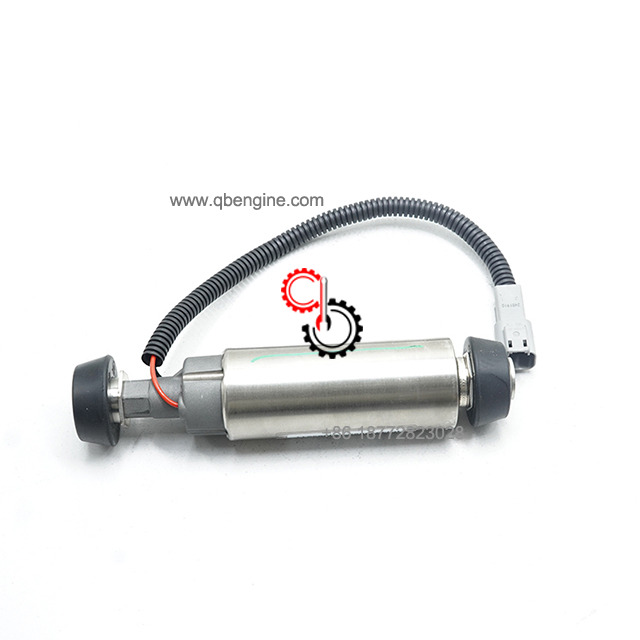

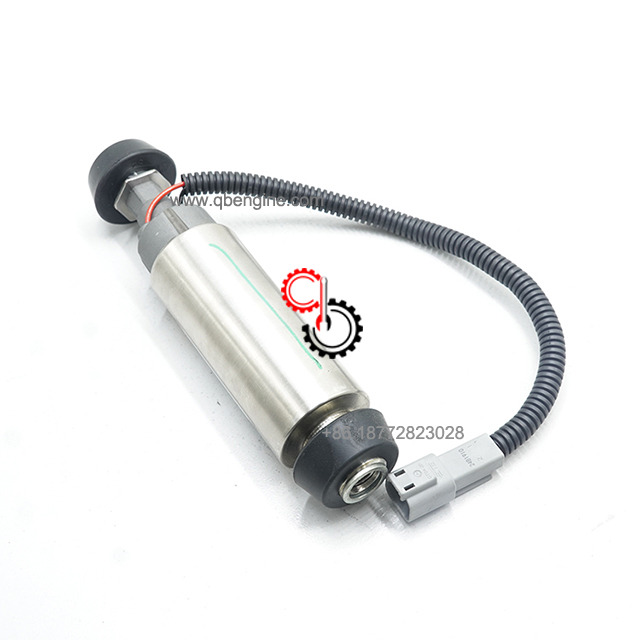

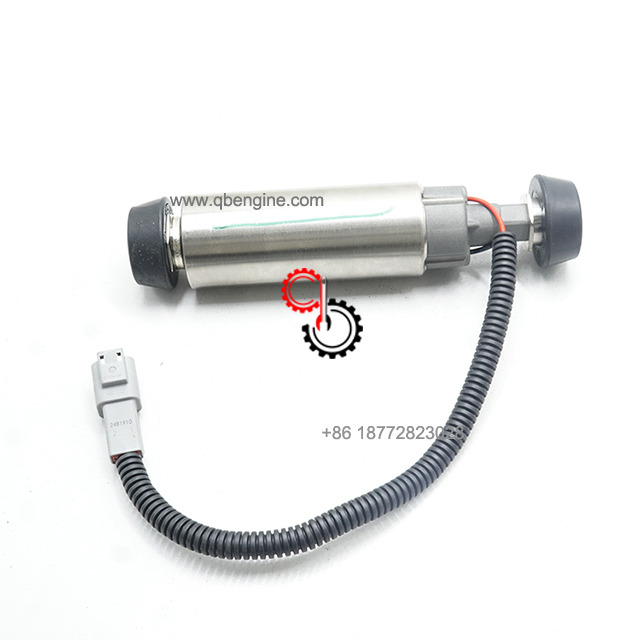

Cummins QSK Priming Pump 4313899

  • QSK

  • Cummins

  • 4313899

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Priming Pump 4313899 In Stock

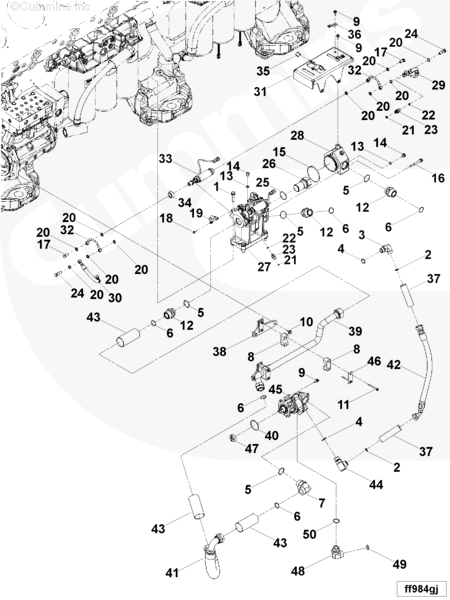

Electronic  Parts Catalog - Option Detail
Cummins Engines QSK95 CM2350 K111, QSK95 CM2350 K113, QSK95 CM2350 K128M

4313899

Ref No Part Number Part Description Required Remarks

FF7062-02

Fuel Transfer Pump
1 3171713 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 50.

3331818 Male Union Elbow 1
2 3085709 O-Ring Seal 1
3 3331819 Male Union Elbow 1
4 3678606 O-Ring Seal 1

3410392 Male Union Elbow 1
5 3089019 O-Ring Seal 1
6 3332160 O-Ring Seal 1
7 3410393 Male Union Elbow 1
8 3641298 Tube Clamp 4
9 3900630 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 20.
10 3903990 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 20.
11 3920115 Hexagon Flange Head Cap Screw 4 M6 X 1.00 X 70.

4331640 Priming Pump 1

3332059 Male Union 3
12 3332060 Male Union 1

3678921 Threaded Plug 3
13 3678912 O-Ring Seal 1
14 3678922 Threaded Plug 1
15 3866634 O-Ring Seal 1
16 3900679 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 80.
17 3903035 Banjo Connector Screw 2
18 3913638 Hexagon Flange Head Cap Screw 8 M6 X 1.00 X 16.
19 3955110 Transfer Pump Bracket 4
20 3963990 Sealing Washer 10

4016669 Male Union 2
21 3678603 O-Ring Seal 1
22 3922794 O-Ring Seal 1
23 4016670 Male Union 1
24 4098533 Banjo Connector Screw 2

4323481 Check Valve 1
25 3082459 O-Ring Seal 1
26 4323482 Check Valve 1
27 4331641 Fuel Manifold 1
28 4331643 Fuel Manifold 1
29 4331648 Fuel Supply Tube 1
30 4331649 Fuel Supply Tube 1
31 5419039 Shield, Debris 1
32 4385756 Fuel Supply Tube 2
33 4313899 Priming Pump 1
34 3955114 Vibration Isolator 2
35 4362095 Wiring Retainer 1
36 5419053 Bracket, Wiring Retainer 2
37 4980882 Drip Shield 3
38 4331848 Fuel Plumbing Bracket 2

4331851 Fuel Supply Tube 1
39 4331846 Fuel Supply Tube 1
40 4331860 O-Ring Seal 1
41 4385236 Fuel Hose 1
42 5419751 Hose, Fuel 1
43 5409523 Drip Shield 7

5410399 Pump, Fuel Transfer 1

5410336 Valve, Pressure Relief 1
44 5410337 Valve, Pressure Relief 1
45 4385270 Pump, Fuel Transfer 1
46 5410257 Cover Plate 2
47 4385569 Coupling Drive 1

4006286 Male Union Elbow 1
48 4006287 Male Union Elbow 1
49 3075658 O-Ring Seal 1
50 3678846 O-Ring Seal 1

5405921 Kit, Fuel Tube A/R


SHIPMENT CHARACTERISTICS


Length * Width * Height 23cm*8cm*7cm
Weight 0.75KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
