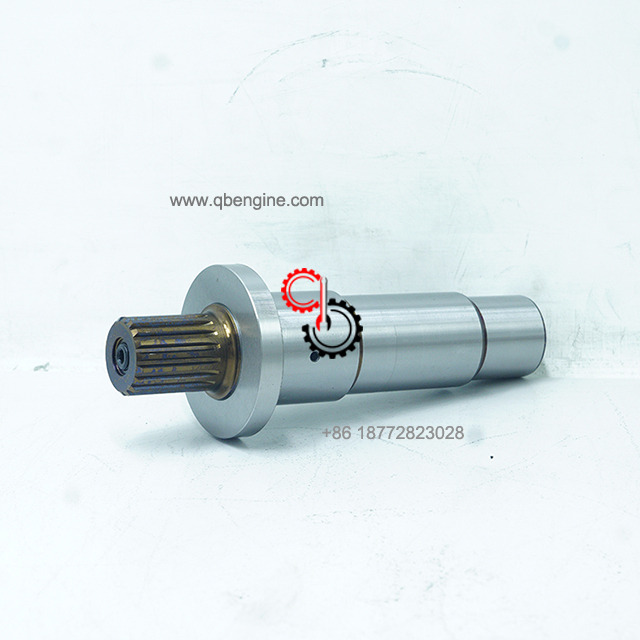

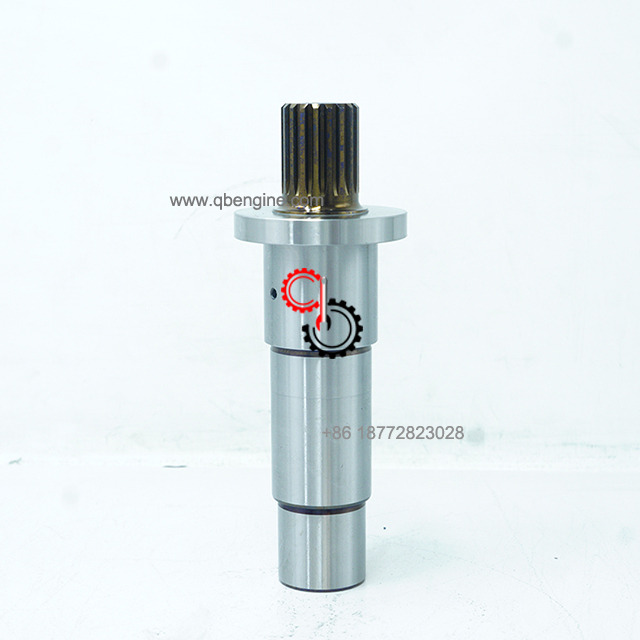

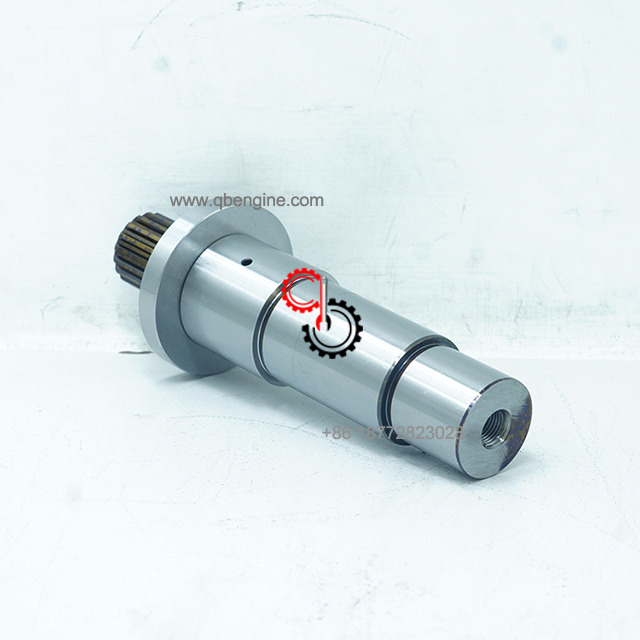

Cummins K38 K50 Water Pump Shaft 3628639

  • K38 K50

  • Cummins

  • 3628639

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Water Pump Shaft 3628639 In Stock

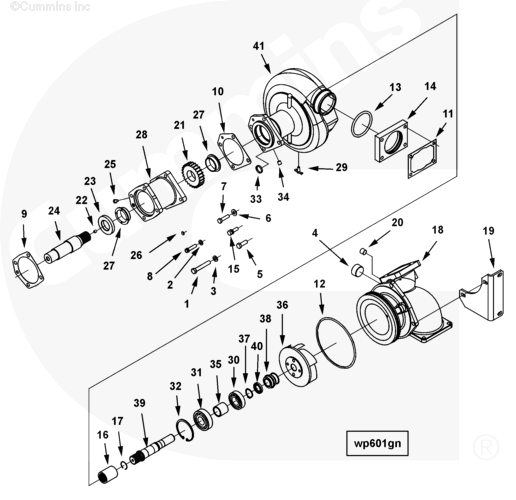

Electronic  Parts Catalog - Option Detail
Cummins  Engines GTA38, K38, KTA38GC  CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS


3628639

Ref No Part Number Part Description Required Remarks

WP6706-03 Water Pump

1 S 162 A Hexagon Head Cap Screw 3 7/16 - 14 X 2 3/4 in.
2 S 604 Lock Washer 6 3/8 in.
3 S 610 Lock Washer 8 7/16 in.
4 S 907 A Pipe Plug 1 1 1/4 NPT
5 103009 Hexagon Head Cap Screw 5 7/16 - 14 X 1 1/4 in.
6 108330 Plain Washer 4 3/8 in.
7 108707 Hexagon Head Cap Screw 2 3/8 - 16 x 1 1/2 in.
8 199919 Twelve Point Cap Screw 4 3/8 - 16 X 1 1/2 Inch.
9 206193 Water Pump Gasket 1
10 206416 Support Gasket 1
11 206455 Water Pump Gasket 1
12 206457 O-Ring Seal 1
13 3007512 O-Ring Seal 1
14 3640685 O-Ring Adapter 1
15 3010596 Captive Washer Cap Screw 2 3/8 - 16 x 1 1/4 in.
16 206195 Spline Coupling Sleeve 1
17 206196 Retaining Ring 1
18 3050945 Water Inlet Connection 1
19 3175857 Water Pump Support 1
20 3628606 Pipe Plug 1 1/2 - 14.

3634065 Water Pump Support 1 Recon equivalent 3634065 NX
21 207251 Water Pump Gear 1

3628639 Water Pump Shaft 1
22 68193 Pipe Plug 1 1/8 NPT
23 3627723 Shaft Retainer 1
24 3628187 Water Pump Shaft 1
25 3631805 Pipe Plug 1
26 3634019 Expansion Plug 1

3634066 Water Pump Support 1
27 3629855 Bushing 2
25 3631805 Pipe Plug 1
28 3634067 Water Pump Support 1

3643969 Water Pump 1
29 3638582 Draincock 1

3635783 Water Pump 1
30 S 16054 Ball Bearing 1
31 S 16069 Ball Bearing 1
32 70183 Retaining Ring 1
33 3004259 Expansion Plug 1
34 3008466 Pipe Plug 1 1/4 NPT.
35 3030487 Bearing Spacer 1
36 3050453 Water Pump Impeller 1
37 3175573 Retaining Ring 1
38 3634007 Water Pump Seal 1
39 3643961 Water Pump Shaft 1
40 3643960 Oil Seal 1
41 3635714 Water Pump Body 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 22cm*22cm*11cm
Weight 1.866KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
