Cummins Turbocharger Kit 3804565 3536803

  • Original

  • Cummins

  • 3804565 3536803

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Turbocharger Kit 3804565 3536803 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   G855, G855 CM558, GTA855 CM558 (CM2358) G101, N14   CELECT, N14 CELECT PLUS, N14 MECHANICAL, NH/NT 855, QSM11   CM876 M101, QSM11 CM876 M102M, QSN14 CM876 N103, QSN14 CM876   N105, QSNT14 CM876 N102

3804565 3536803

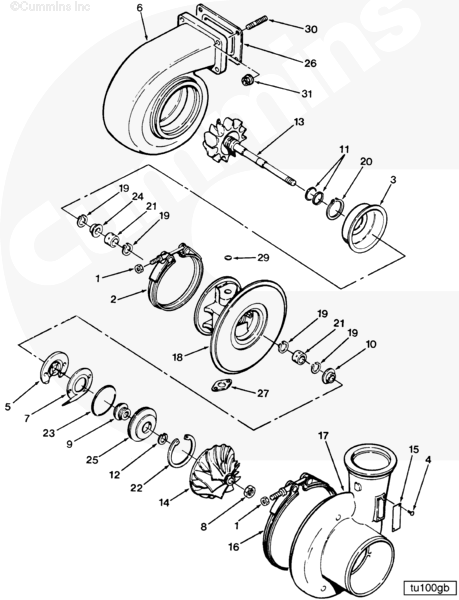

Ref No Part Number Part Description Required Remarks

PP8023 Turbocharger
HT60-N0881A/H36K1 (dry...(More)

3804565 Turbocharger Kit 1 Recon equivalent 3804565 RX

3536803 Turbocharger

1 3529372 Regular Hexagon Nut 2 1/4 - 28 UNF
2 3504959 V Band Clamp 1
3 3519155 Turbocharger Heat Shield 1
4 3519163 Drive Screw 4
5 3532984 Turbocharger Thrust Bearing 1
6 3536998 Turbine Housing 1
7 3529658 Oil Baffle 1
8 3519471 Lock Nut 1 7/16 - 20 UNF
9 3521439 Oil Slinger 1
10 3521440 Thrust Collar 1
11 3521441 Split Ring Seal 2
12 3521442 Split Ring Seal 1
13 3522075 Shaft And Wheel 1
14 3527047 Turbocharger Compressor Impeller 1
15 3527907 Dataplate 1
16 3532045 V Band Clamp 1
17 3536324 Turbocharger 1
18 3536097 Turbocharger Bearing Housing 1
19 3709510 Retaining Ring 4
20 3718373 Retaining Ring 1
21 3722366 Turbocharger Bearing 2
22 3723863 Retaining Ring 1
23 3751948 O-Ring Seal 1
24 3757753 Oil Control Sleeve 1
25 3759618 Oil Seal Plate 1
26 3069177 Turbocharger Gasket 1
27 3202117 Connection Gasket 1
29 3037537 O-Ring Seal 1
30 3056155 Double End Plain Stud 4
31 3056158 Hexagon Flange Nut 4 Reference TSB100603.

3803745 Turbocharger Repair Kit 1


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
