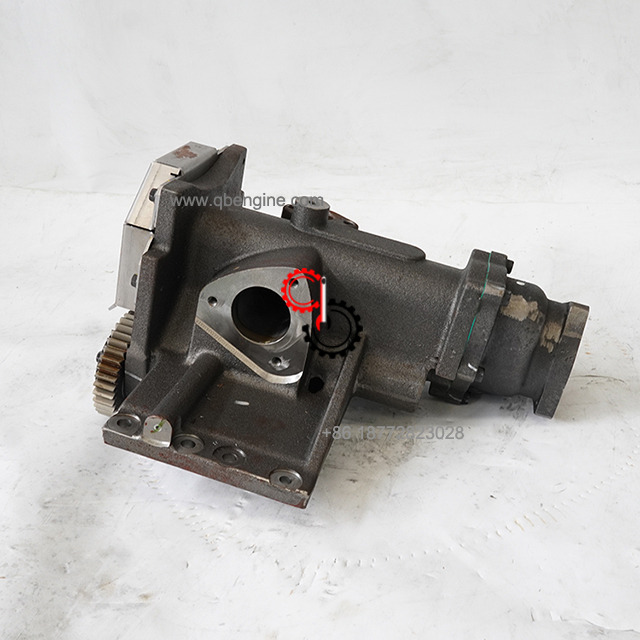

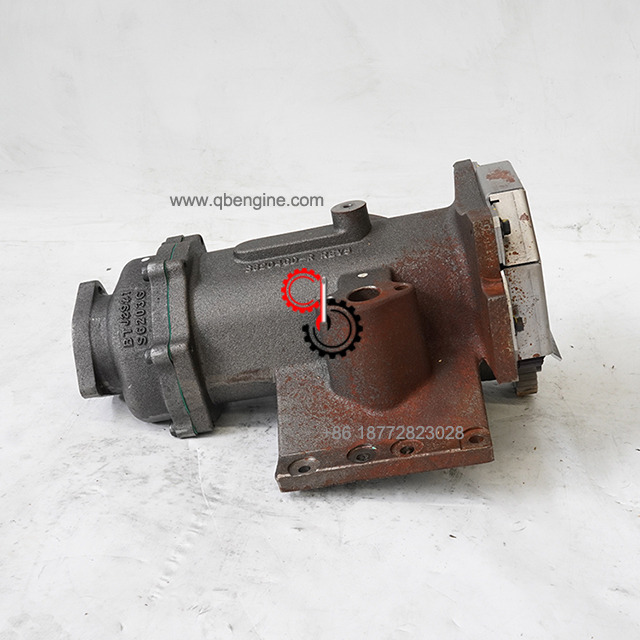

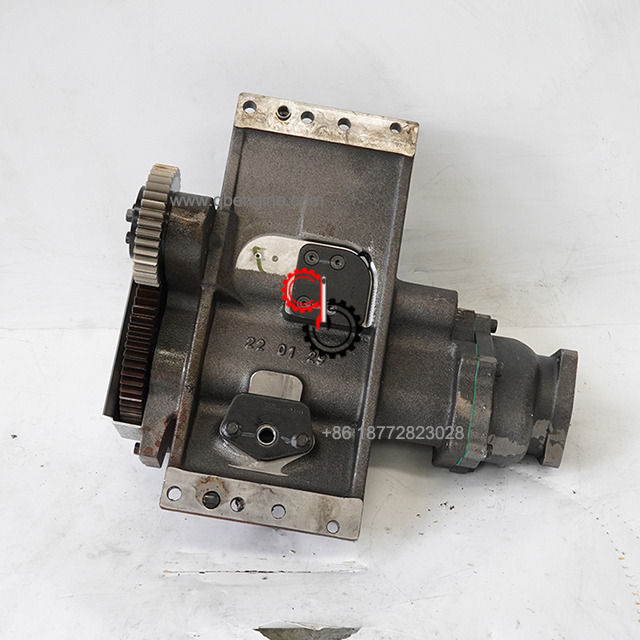

Cummins QSK45 Lubricating Oil Pump 3644520 6319711 3642280

  • QSK45

  • Cummins

  • 3644520 6319711 3642280

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK45 Lubricating Oil Pump 3644520 6319711 3642280 In Stock

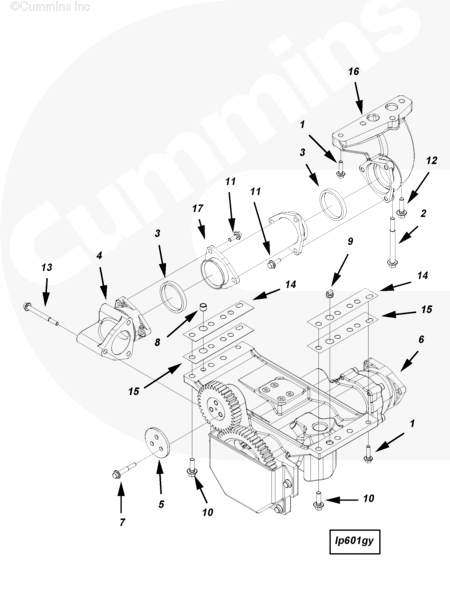

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  QSK45 CM500, QSK45G

3644520

Cart Ref No Part Number Part Description Required Remarks


LP6719 Lubricating Oil Pump
Lubricating oil pump...(More)
1 3089016 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 35.
2 3089234 Hexagon Flange Head Cap Screw 1

3 3089886 Rectangular Ring Seal 2

4 3636362 Oil Transfer Connection 1


3644520 Lubricating Oil Pump 1

5 3026233 Gear Retainer 1

6 3644521 Lubricating Oil Pump 1

7 3900635 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 60.
8 3911678 Ring Dowel 1

9 4001283 Diamond Dowel 1

10 3900637 Hexagon Flange Head Cap Screw 6 M12 x 1.75 x 35
11 3902460 Hexagon Flange Head Cap Screw 6 M10 X 1.50 X 25.
12 3910540 Hexagon Flange Head Cap Screw 2

13 3914407 Hexagon Flange Head Cap Screw 3 M10 x 1.50 x 100
14 4016660 Shim 2

15 4016661 Shim 2

16 4916875 Oil Transfer Connection 1

17 4916878 Lubricating Oil Transfer Tube 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 24cm*21.5cm*20cm
Weight 99kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
