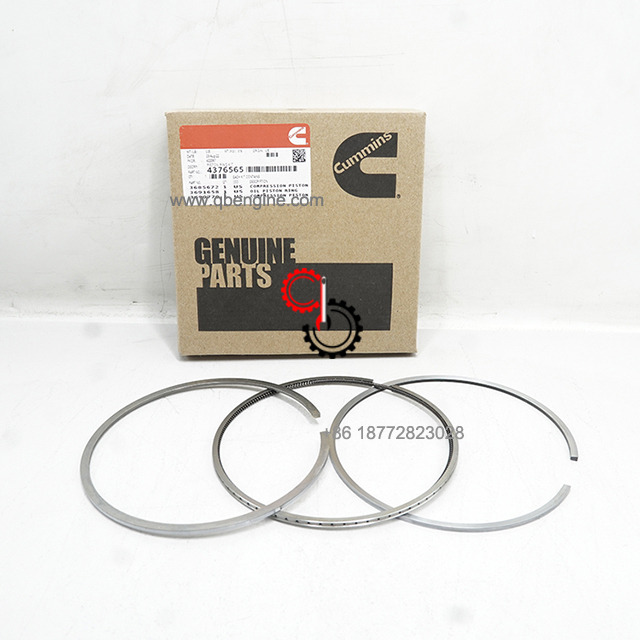

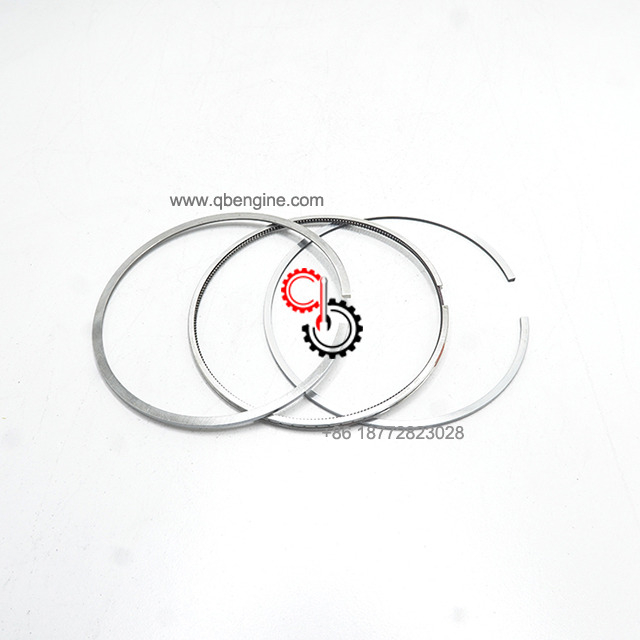

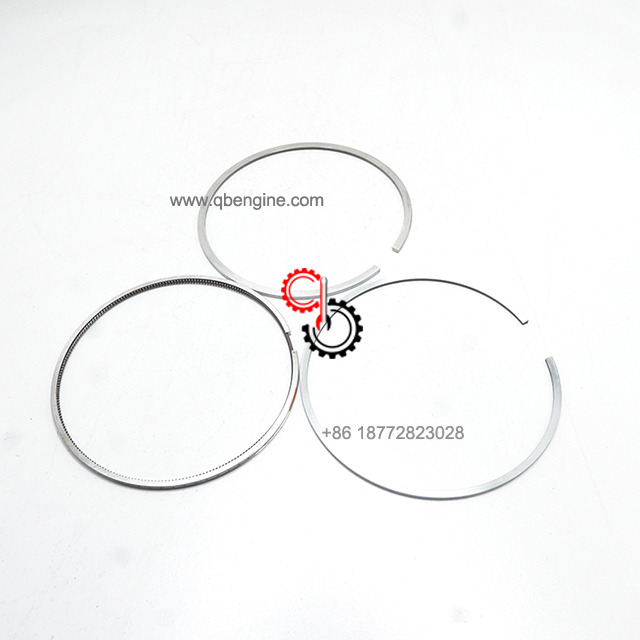

Cummins ISX QSX Piston Ring Kit 4376565 6379407

  • ISX QSX

  • Cummins

  • 4376565 6379407

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX Piston Ring Kit 4376565 6379407 In Stock

Electronic   Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

4376565

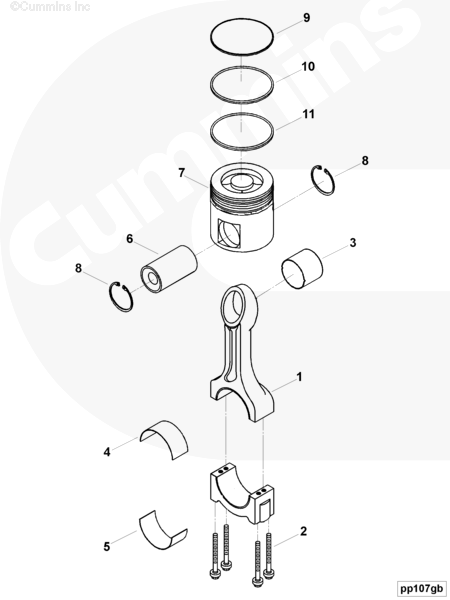

Ref No Part Number Part Description Required Remarks

PP10346 Engine Piston
Engine Piston

3689108 Engine Connecting Rod 6
1 3686171 Engine Connecting Rod 1
2 3678574 Connecting Rod Cap Screw 4
3 2882581 Bushing 1
4 3686435 Connecting Rod Bearing 6 Standard Upper.
5 3686436 Connecting Rod Bearing 6 Standard Lower.
6 3689296 Piston Pin 6
7 3688100 Engine Piston 6
8 3064305 Retaining Ring 12
9 3690770 Compression Piston Ring 6
10 3685672 Compression Piston Ring 6
11 3682398 Oil Piston Ring 6

2882087 Connection Rod Bearing Set A/R

4376360 Oversize Rod Bearing Kit A/R

4376361 Oversize Rod Bearing Kit A/R

4376567 Engine Piston Kit A/R

4376565 Piston Ring Kit 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 16cm*19cm*0.31cm
Weight 0.31KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
