Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411
Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411
Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411 Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411
Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411 Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411
Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411 Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411

loading

Authentic OEM Cummins Engine Parts Electronic Control Module 3867401 4921411

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

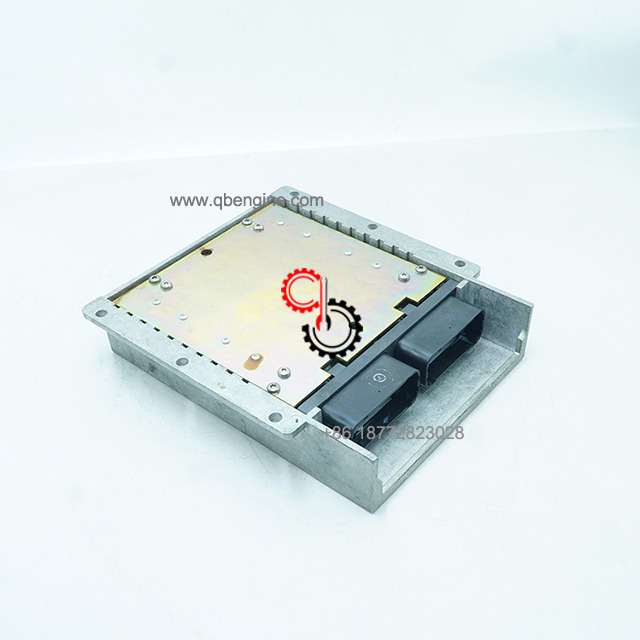

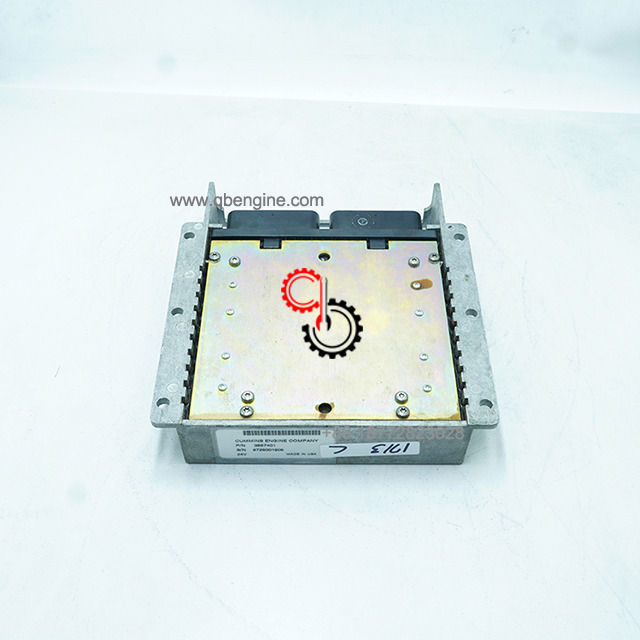

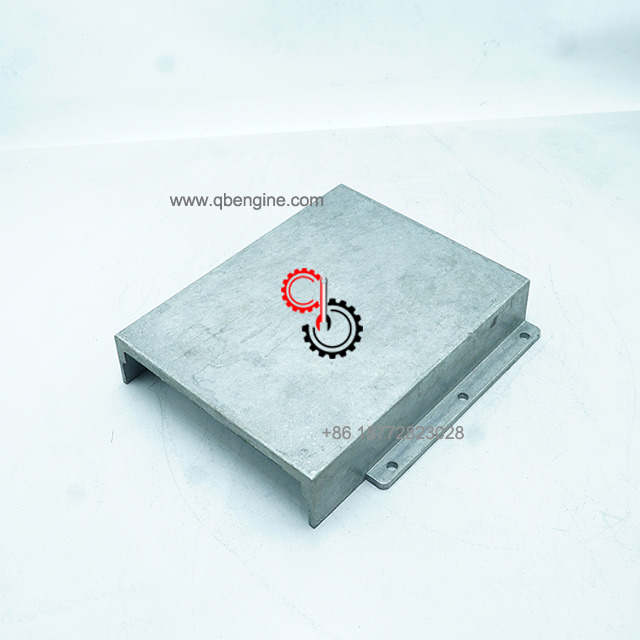

Cummins Electronic Control Module 3867401 4921411

  • original

  • Cummins

  • 3867401 4921411

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Electronic Control Module 3867401 4921411 In Stock

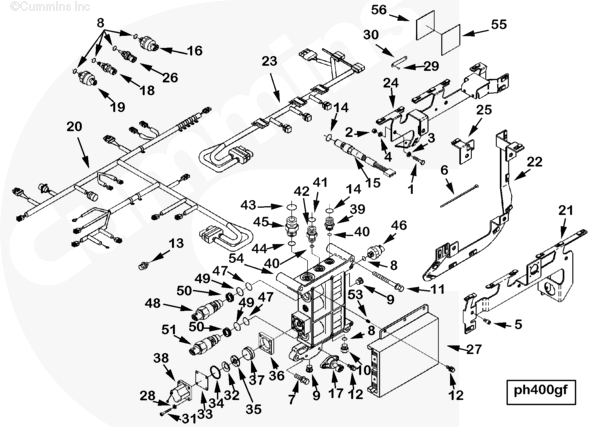

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3867401

Ref No Part Number Part Description Required Remarks

PH4709-04 Engine Control Module
Module, electronic  control...(More)
1 S 105 C Hexagon Head Cap Screw 2 1/4 - 20 x 1 1/4 in.
2 S 224 Heavy Hexagon Nut 2 1/4 - 20 UNC.
3 S 600 Lock Washer 2 1/4 in.
4 127018 Plain Washer 4 1/4 in.
5 187416 Socket Head Cap Screw 4 #4 - 40 X 3/8 Inch.
6 3018920 Wire Tie Clamp 34
7 3035624 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.

3037536 Threaded Plug 1 9/16 - 18 UNF
8 3037537 O-Ring Seal 1
9 3040813 Threaded Plug 1 9/16 - 18 UNF

3040995 Threaded Plug 1 9/16 - 18 UNF
10 3040809 Threaded Plug 1
11 3042890 Captive Washer Cap Screw 2 3/8 - 16 x 4 in.
12 3066310 Captive Washer Cap Screw 2 1/4 - 20 X 3/4"
13 3071225 Captive Washer Cap Screw 5 3/8 - 16 x 3/4 in.

3078151 Position Sensor 1 Cam or Crank
14 3046201 O-Ring Seal 1
15 3078150 Position Sensor 1 Cam or crank.

3080406 Pressure Sensor 1 Oil
16 3083716 Pressure Sensor 1 Oil
17 3085140 Pressure Sensor 1 Ambient Air

3085185 Temperature Sensor 1 Intake Manifold
18 3085198 Temperature Sensor 1 Intake Manifold

3085244 Pressure Sensor 1 Intake Manifold
19 3085245 Pressure Sensor 1 Intake Manifold
20 3090225 Wiring Harness 1
21 3090249 Wiring Retainer Bracket 1
22 3090266 Wiring Retainer Bracket 1
23 3090267 Wiring Harness 1
24 3090279 Wiring Retainer Bracket 1
25 3090280 Wiring Retainer Bracket 1

3865312 Temperature Sensor 1 Coolant Or Oil *.
26 3865323 Temperature Sensor 1 Coolant Or Oil *.
27 3867401 Electronic Control Module 1
28 S 607 Lock Washer 4 #10
29 S 2286 Drive Screw 2 3/16 in.
30 105375 Nameplate 1
31 118226 Socket Head Cap Screw 4 #10 - 24 x 1 1/4 in.
32 129768 Valve Spring 1
33 129839 Shut-Off Valve Shield 1
34 129888 Rectangular Ring Seal 2
35 196057 Valve Disc 1
36 3034451 Actuator Housing 1
37 3034452 Actuator Disc 1

3037536 Threaded Plug 2 9/16 - 18 UNF
38 3054607 Solenoid 1

3081952 Male Union 1
39 3085825 Male Union 1
40 3922794 O-Ring Seal 2

3081953 Male Union 1
41 3040817 O-Ring Seal 1
42 3085826 Male Union 1

3081956 Male Union 1
43 3046943 O-Ring Seal 1
44 3076102 O-Ring Seal 1
45 3085829 Male Union 1

3085258 Pressure Sensor 2 Fuel.
46 3085238 Pressure Sensor 2 Fuel.

3865310 Electronic Fuel Control Actuator 1
47 3042542 O-Ring Seal 1
48 3812027 Electronic Fuel Control Actuator 1
49 3865398 O-Ring Seal 1
50 3867393 Filter Screen 1

3865309 Electronic Fuel Control Actuator 1
51 3812026 Electronic Fuel Control Actuator 1

3865312 Temperature Sensor 1 Coolant Or Oil *.
52 3865323 Temperature Sensor 1 Coolant Or Oil *.

3867715 Control Valve Body 1
53 3087121 Threaded Insert 8
54 3867714 Control Valve Body 1
55 3893655 Dataplate 1
56 3893721 Tape 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 33cm*25cm*11cm
Weight 3.19KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
