Cummins / Products / Authentic Cummins ISM 4039813 Engine Air Control Valve
Authentic Cummins ISX15 4039813 Engine Air Control Valve
Authentic Cummins ISX15 4039813 Engine Air Control Valve Authentic Cummins ISX15 4039813 Engine Air Control Valve
Authentic Cummins ISX15 4039813 Engine Air Control Valve Authentic Cummins ISX15 4039813 Engine Air Control Valve
Authentic Cummins ISX15 4039813 Engine Air Control Valve Authentic Cummins ISX15 4039813 Engine Air Control Valve

loading

Authentic Cummins ISM 4039813 Engine Air Control Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

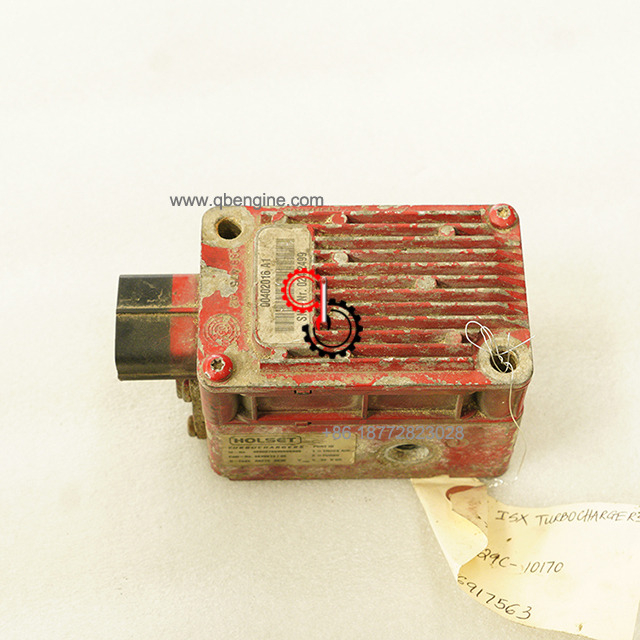

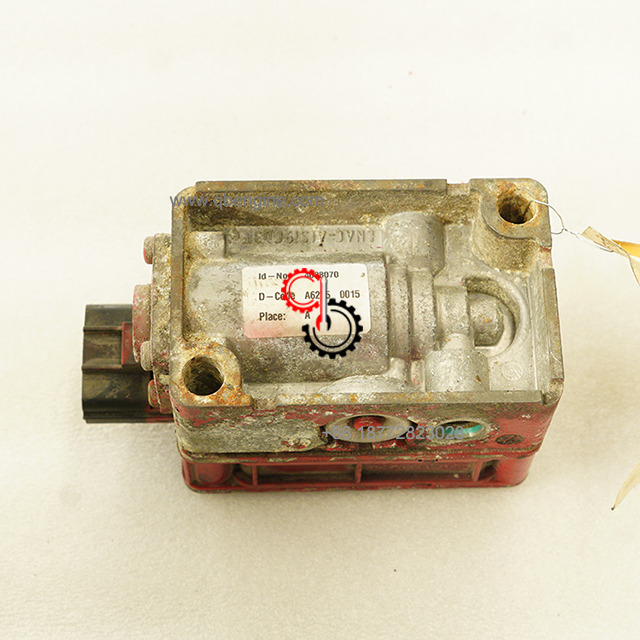

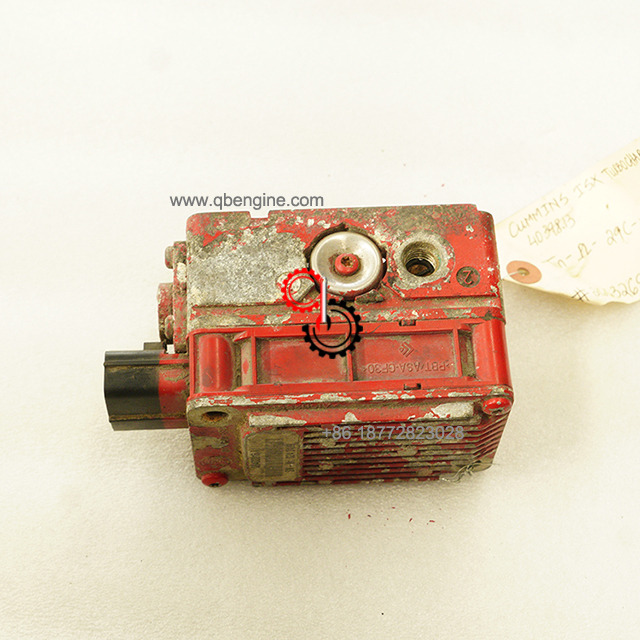

Cummins ISM Air Control Valve 4039813

  • ISM

  • Cummins

  • 4039813

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISM Air Control Valve 4039813 In Stock

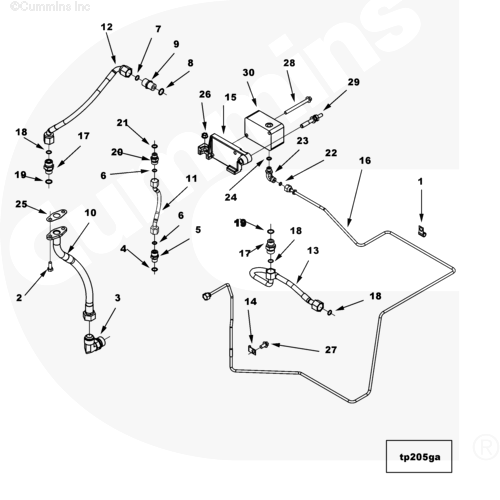

Electronic   Parts Catalog - Option Detail
Cummins Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4039813


Ref No Part Number Part Description Required Remarks

TP2834-03 Turbocharger Plumbing

1 180372 Clip 1
2 3025802 Hexagon Head Cap Screw 2 M8 X 1.25 X 20.
3 3047340 Male Union Elbow 1

3081950 Male Union 1 1 - 14 x 3/4 - 16
4 3037537 O-Ring Seal 1
5 3085824 Male Union 1 Service as 3081950
6 3922794 O-Ring Seal 1

3081954 Male Union 1
7 202557 O-Ring Seal 1
8 3046201 O-Ring Seal 1
9 3085827 Male Union 1
10 3102370 Turbocharger Oil Drain Connection 1
11 3102371 Flexible Hose 1 Oil Supply
12 3102373 Flexible Hose 1 Coolant Return
13 3102805 Flexible Hose 1 Coolant Supply
14 3103122 Clip 1
15 3103579 Air Control Valve Support 1
16 3103602 Air Tube 1

3331873 Male Union 2
17 3331838 Male Union 1
18 3627695 O-Ring Seal 1
19 3678786 O-Ring Seal 1 M18

3332136 Male Union 1
20 3332137 Male Union 1
21 3678912 O-Ring Seal 1 M14

3393834 Male Union Elbow 1
22 3089392 O-Ring Seal 1
23 3393835 Male Union Elbow 1
24 3678603 O-Ring Seal 1
25 3899343 Turbocharger Gasket 1
26 3900589 Hexagon Flange Nut 1 M8 X 1.25
27 3900629 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 16
28 3913366 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 90.
29 4022820 Studded Captive Washer Screw 1
30 4039813 Air Control Valve 1

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
