Cummins / Cummins Parts / Cylinder Head, Engine Block, Camshaft, Crankshaft / 5619268 5293397 3971389 4946853 4993498 ISLG8.9 Original Cummins Cylinder Block Natural Gas Engine Parts

5619268 5293397 3971389 4946853 4993498 ISLG8.9 Original Cummins Cylinder Block Natural Gas Engine Parts

5619268 5293397 3971389 4946853 4993498 ISLG8.9 Original Cummins Cylinder Block Natural Gas Engine Parts

Name: 5619268 5293397 3971389 4946853 4993498 ISLG8.9 Original Cummins Cylinder Block Natural Gas Engine Parts
Brand: Cummins
Rating: 5.0 (89 reviews)

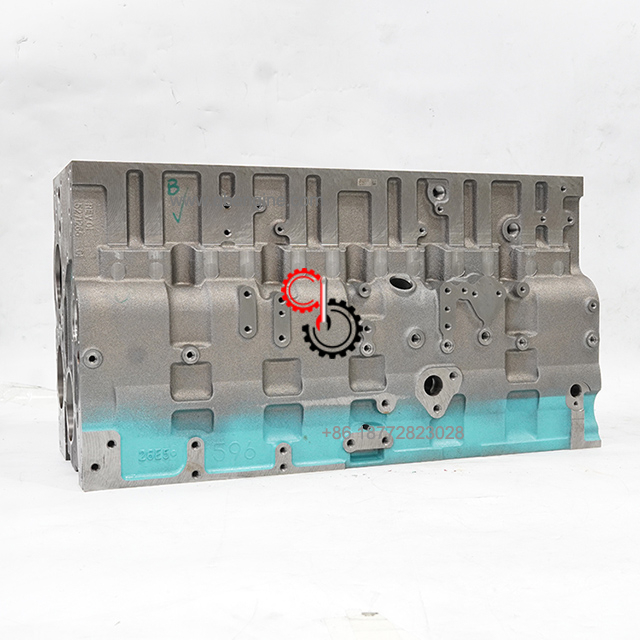

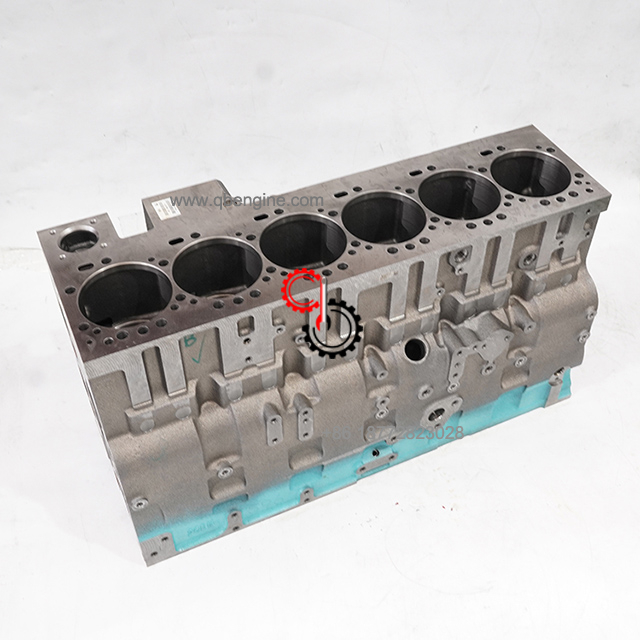

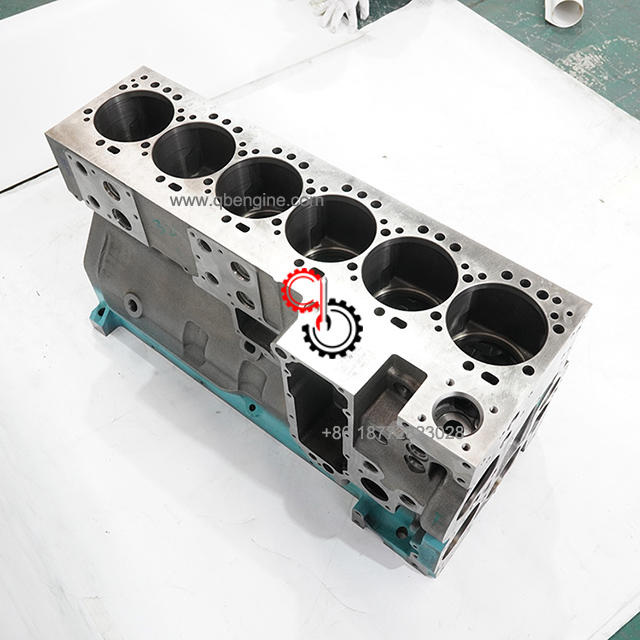

Original Cummins 5619268 5293397 3971389 4946853 4993498 ISLG8.9 Cylinder Block

Model:
ISLG8.9
Brand:
Cummins
Code:
5619268 5293397 3971389 4946853 4993498
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Supersessions Part Number 5619268 5293397 3971389 4946853 4993498 Cummins Cylinder Block details

Electronic Parts Catalogue - Option Detail
Cummins Engines	Cummins Engine Parts 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

BB9270-04 Cylinder Block

Engine Design Phase: L Gas Plus

Engine Family: L Series

Piston Coolign Nozzle Style: J-Jet

Tappet Diameter (mm): 38

Tappet Type: Slider

Main Bearing Cap Material: 41,020 High Grade Ductile Iron

Push Rod Load Capability (lbs): 1700

Flywheel Housing to Block Mounting Pattern: 12 x M12 x 1.75

Oil Pan to Block Mounting Pattern: 24 x M8 x 1.25

Oil Pan/Block Mounting Hole Spacing: Equal

Oil Pan/Block Mounting Hole Dimension (mm): 78.5

Block Flange: 282mm x 773.5mm

Primary Grounding Stud Location: Fuel Pump Side (Hole #326)

5293397

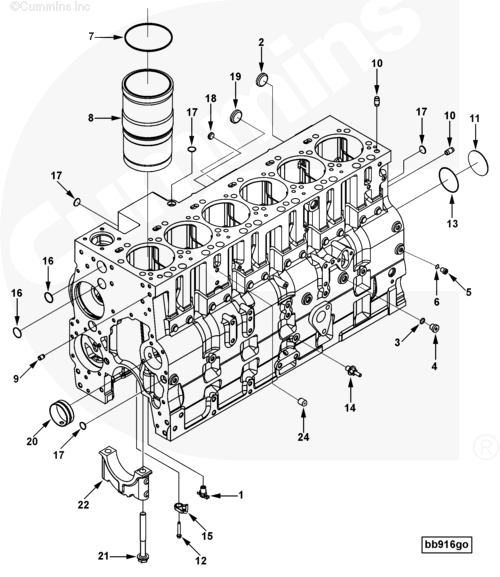

Cart	Ref No	Part Number	Part Description	Required	Remarks
		BB9270-04	Cylinder Block		Cylinder Block...(More)
1	S 923 E	Draincock	1
2	3089023	Threaded Plug	1	M42 X 2.00 X 19.5.
	3678921	Threaded Plug	1	M14 X 1.5 X 16
3	3678912	O-Ring Seal	1	M14
4	3678922	Threaded Plug	1	M14 X 1.5 X 16
	3678923	Threaded Plug	6	M10 X 1.00 X 13.5
5	3678924	Threaded Plug	1	M10 X 1.00 X 13.5
6	3678925	O-Ring Seal	1	M10.
	4980052	Cylinder Liner	6
7	3907177	Rectangular Ring Seal	1
8	3948095	Cylinder Liner	1
9	3900257	Pin Dowel	2
10	3901846	Pin Dowel	4
11	3901969	Expansion Plug	1
12	3909025	Hexagon Flange Head Cap Screw	6	M8 x 1.25 x 55
13	3926048	O-Ring Seal	1
14	3936352	Studded Flange Cap Screw	1
15	4944337	Piston Cooling Nozzle	6	Ref TSB170022
	5293397	Cylinder Block	1
16	143066	Expansion Plug	3
17	3004258	Expansion Plug	4
18	3900956	Expansion Plug	3	17.73 mm
19	3905401	Expansion Plug	3
20	3945329	Bushing	7
21	3970810	Hexagon Flange Head Cap Screw	14	M14 x 2.00 x 135
22	3970955	Main Bearing Cap	7
23	5293396	Cylinder Block	1
24	5273887	Socket Set Screw	1
	3800328	Liner Kit	A/R
	3907177	Rectangular Ring Seal	1
	3948095	Cylinder Liner	1
	3924445	Shim	A/R	0.25mm Oversize (0.010 in.)
	3924446	Shim	A/R	0.38mm Oversize (0.015 in.)
	3924447	Shim	A/R	0.51mm Oversize (0.020 in.)
	3924448	Shim	A/R	0.75mm Oversize (0.030 in.)
	3924449	Shim	A/R	1.00mm Oversize (0.040 in.)

SHIPMENT CHARACTERISTICS
Length * Width * Height	93cm46cm51cm
Weight	240kg
