Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / 5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 Holset Turbocharger Kit ISX15 Genuine Cummins Engine Parts

5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 Holset Turbocharger Kit ISX15 Genuine Cummins Engine Parts

5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 Holset Turbocharger Kit ISX15 Genuine Cummins Engine Parts

Name: 5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 Holset Turbocharger Kit ISX15 Genuine Cummins Engine Parts
Brand: Cummins
Rating: 5.0 (93 reviews)

Genuine Cummins 5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 ISX15 Holset Turbocharger Kit

Model:
ISX15
Brand:
Cummins
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Supersessions Part Number 5458260 6449961 5354718 5354721 3796391 3798519 3796351 4309273 Cummins Holset Turbocharger Kit details

Electronic Parts Catalog - Option Detail
Cummins Engines	Cummins Engine Parts ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

5458260

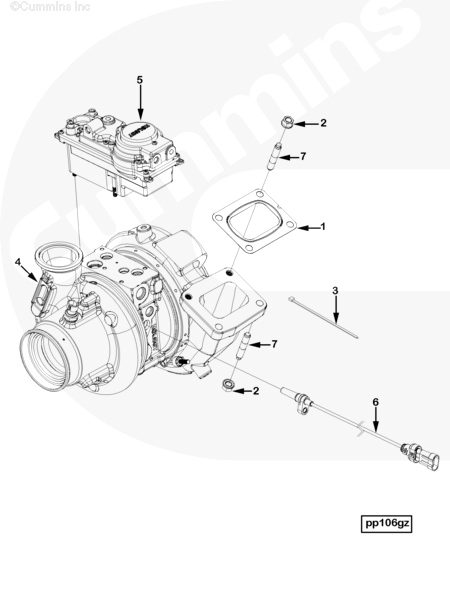

Cart	Ref No	Part Number	Part Description	Required	Remarks
		PP10363-02	Turbocharger
1	3685535	Turbocharger Gasket	1
2	3686305	Lock Nut	4
3	3687036	Wire Tie Clamp	4
	3781369	Turbocharger	1
	3781362	Turbocharger	1
5	3776172	Turbocharger Electric Actuator	1
6	4307345	Turbocharger Speed Sensor	1	Turbocharger Speed.
7	4298242	High Temperature Stud	4
	3782559	Turbocharger Sensor Kit	1
	3527184	Hexagon Flange Head Cap Screw	1
	4307345	Turbocharger Speed Sensor	1	Turbocharger Speed.
	4307444	Wire Retaining Clip	2	No Service Kit.
	4309273	Turbocharger Kit	1	12V
	3102802	O-Ring Seal	1
	3627695	O-Ring Seal	1
	3678912	O-Ring Seal	1	M14
	3684284	Sealing Washer	2
	3685535	Turbocharger Gasket	1
	3781369	Turbocharger	1	Turbocharger Kit 4309273 NX
	3922794	O-Ring Seal	1
	3949708	O-Ring Seal	1
	3949781	O-Ring Seal	1
	3957131	O-Ring Seal	1
	4934278	Sealing Washer	2
	4934279	Sealing Washer	6
	5264570	Oil Drain Gasket	1
	4034208	Turbocharger Electric Actuator Kit	1	12V

SHIPMENT CHARACTERISTICS
Length * Width * Height	39cm39cm42cm
Weight	26.8kg
