Cummins / Cummins Parts / Filter, Flywheel, Flywheel Housing, Air Inlet Pipe, Air Exhaust Pipe / 5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts

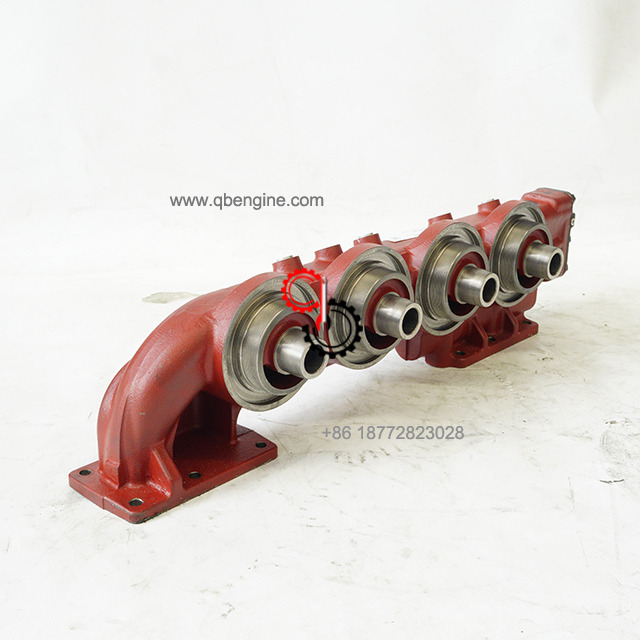

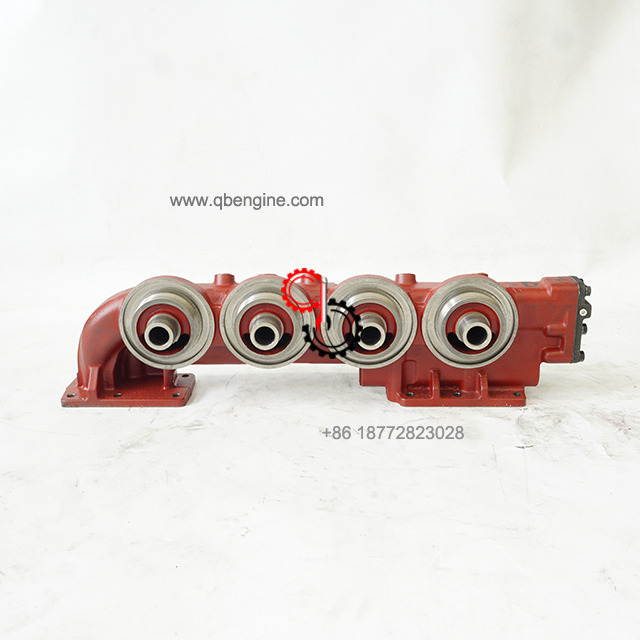

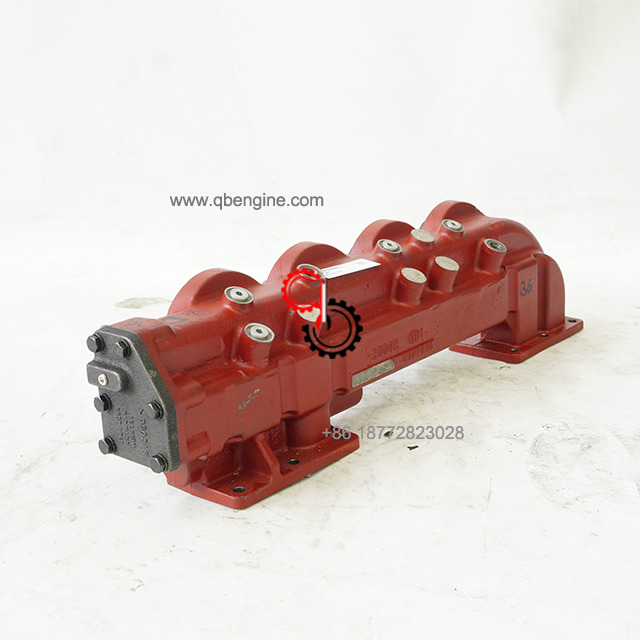

5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts
5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts 5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts
5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts 5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts
5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts 5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts

loading

5371751 4381992 4381990 4927957 4928015 Lubricating Oil Filter Head QSK50 Genuine Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
QSK50  Lubricating Oil Filter Head 5371751 4381992 4381990 4927957 4928015

  • QSK50

  • Cummins

  • 5371751 4381992 4381990 4927957 4928015

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

QSK50  Lubricating Oil Filter Head 5371751 4381992 4381990 4927957 4928015 In Stock

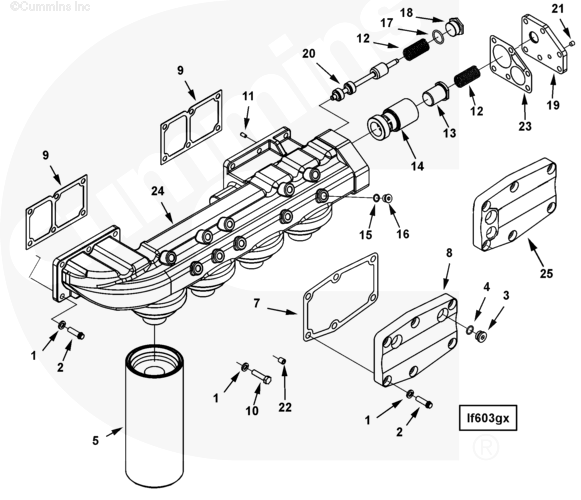

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

4927957

Cart Ref No Part Number Part Description Required Remarks


LF6080-08 Lubricating Oil Filter

1 S 604 Lock Washer 30 3/8 in.
2 191772 Twelve Point Cap Screw 24 3/8 - 16 X 1 1/4 in.

3046202 Threaded Plug 2 3/4 - 16 UNF.
3 3040810 Threaded Plug 1

4 3046201 O-Ring Seal 1

5 3101870 Lubricating Oil Filter 4 Buy from Cummins filtration
7 3642342 Cover Plate Gasket 2

8 3645045 Oil Transfer Connection 1

9 3643837 Filter Head Gasket 2

10 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
11 69558 Pin Dowel 1

12 205659 Compression Spring 2

13 3021618 Pressure Regulator Plunger 1

14 3028552 Bypass Valve Body 1


3037536 Threaded Plug 3 9/16 - 18 UNF
15 3037537 O-Ring Seal 1

16 3040813 Threaded Plug 3 9/16 - 18 UNF

3040818 Threaded Plug 1 1 3/16 - 12 UN
17 3035228 O-Ring Seal 1

18 3040819 Threaded Plug 1

19 3177433 Cover Plate 1

20 3627927 Pressure Regulator Plunger 1

21 3628604 Pipe Plug 2 1/8 - 27 X 0.3 in.
22 3628605 Pipe Plug 8 1/4 - 18.
23 3629141 Lubricating Oil Filter Cover  Gasket 1

24 4927957 Lubricating Oil Filter Head 1

25 3645043 Oil Transfer Connection 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 86cm*36cm*27cm
Weight 21.1kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
