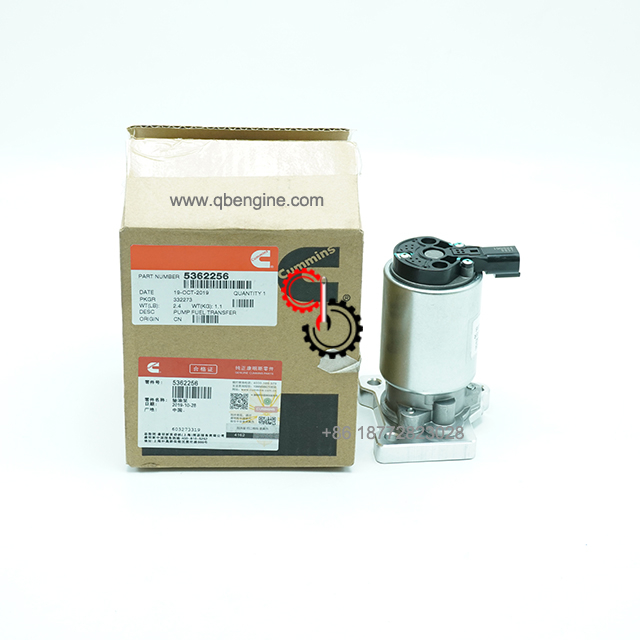

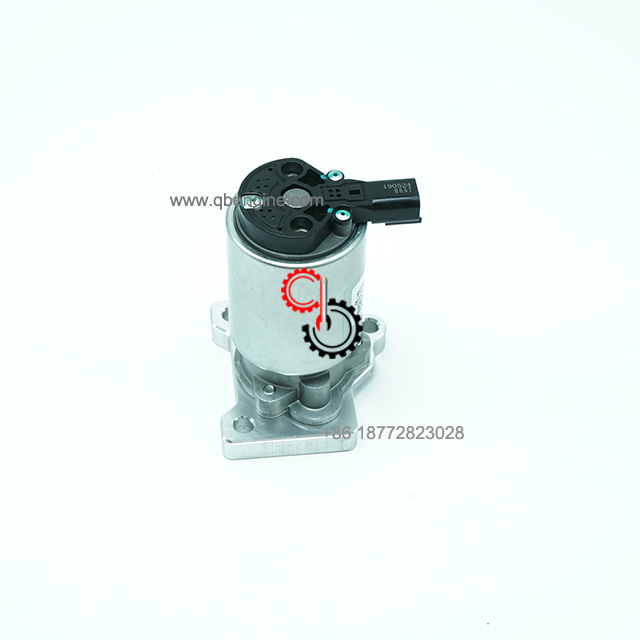

5362256 Fuel Transfer Pump ISX Original Cummins QSX QSZ13

Name: 5362256 Fuel Transfer Pump ISX Original Cummins QSX QSZ13
Brand: Cummins
SKU: 757398297
Rating: 5.0 (12 reviews)

Model:
5362256
Brand:
Cummins
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Supersession Part Number:	5362256 4076581 4935095
weight(kg):	1.22
size(cm):	19cm15cm14cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins Electronic Parts Catalog - Option Detail
Engines	Cummins Engine Parts ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, Z14 CM2670 Z103B

Cart	Ref No	Part Number	Part Description	Required	Remarks
		FP10225	Fuel Pump		Fuel pump...(More)
		4076601	Fuel Control Module	1
		70700	Compression Spring	1
		100099	Rectangular Ring Seal	2
		129768	Valve Spring	1
		129839	Shut-Off Valve Shield	1
		139988	Rectangular Ring Seal	2
		151900	Rectangular Ring Seal	2
		160514	Plain Washer	2
		196057	Valve Disc	1
		202897	Fuel Pump Damper Diaphragm	2
		2872195	Support Gasket	1
		2872249	Rectangular Ring Seal	2
		3014575	Fuel Pump Filter Cap	1
		3015521	Ball	1
		3021123	O-Ring Seal	1
		3025806	Socket Head Cap Screw	3
		3042619	Coupling Nipple	2
		3090769	Filter Screen	1
		3330019	Socket Head Cap Screw	1
		3330022	Socket Head Cap Screw	4
		3330651	Fuel Pump Damper Cover	2
		3330652	Fuel Pump Damper Body	2
		3330719	Thrust Bearing Plate	1
		3330720	Idler Shaft	1
		3331275	Shaft Retainer	1
		3348322	Pressure Regulator Valve	1
		3627695	O-Ring Seal	1
		3867640	O-Ring Seal	1
		3408421	Solenoid	1
		3417138	Male Adapter Elbow	1
		3417139	Male Adapter Elbow	1
		3679139	O-Ring Seal	1
		3867093	Idler Gear	1
		3330639	Bushing	1
		3867094	Idler Gear	1
		3867481	O-Ring Seal	1
		3902023	Hexagon Flange Head Cap Screw	2
		4001926	Pressure Regulator Valve	1
		3330478	O-Ring Seal	1
		3867641	O-Ring Seal	1
		4010077	Check Valve	2
		3089240	O-Ring Seal	1
		4010078	Check Valve	1
		4076471	Socket Head Cap Screw	4
		4076593	Check Valve	1
		3678925	O-Ring Seal	1
		4076594	Check Valve	1
		4076599	Orifice Plug	1
		4077139	Identification Tag	1
		4088274	Actuator Disc	1
		4088450	Hexagon Flange Head Cap Screw	4
		4088806	Threaded Plug	6
		3678912	O-Ring Seal	1
		4088802	Threaded Plug	1
		4088807	Threaded Plug	3
		3678786	O-Ring Seal	1
		4088803	Threaded Plug	1
		4088848	Gear Fuel Pump	1
		4088863	Actuator Housing	1
		4902789	Actuator Gasket	8
		4902904	Metering Actuator	2
		4902905	Timing Actuator	2
		4921499	Pressure Sensor	1
		4935095	Fuel Transfer Pump	1
		4076510	Fuel Pump Support	1
		4935004	Fuel Pump Gasket	1
		4984305	Self Tapping Metal Screw	3
		4954473	Fuel Pump Gasket	1
		4954670	Pan Head Cap Screw	12
		4984297	Fuel Control Housing	1
		5362256	Pump, Fuel Transfer	1
		4076510	Fuel Pump Support	1
		4384020	Pump, Fuel Transfer	1
		5394160	Pump, Fuel Transfer	1
		4984305	Self Tapping Metal Screw	3
		4076832	Male Union	1
		3678846	O-Ring Seal	1
		4920512	Male Union	1
		4374105		1
		4965689	Fuel Control Housing Gasket	1

Additional Parts are also available. Check with Qingbang Online Service.
